CHIEF RSE Instructions D'installation page 12

RSE
3
3a
12
Example Only
(Interface bracket
varies dependent
on projector model)
2
Example Only
(Interface bracket
varies dependent
on projector model)
2
1

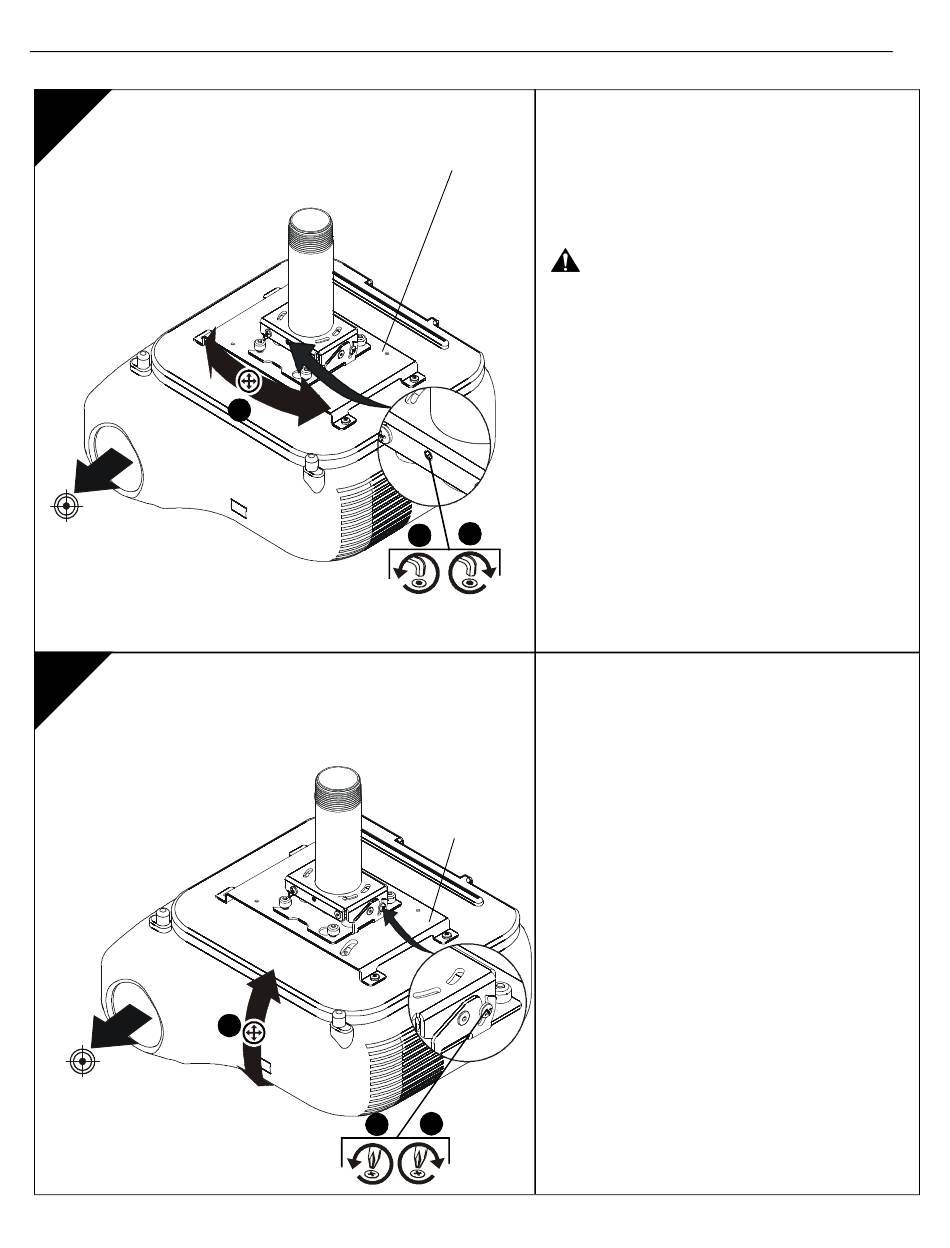

ADJUSTMENTS
YAW Adjustment
1. Loosen yaw adjustment screw using a 5/32" hex
key.
NOTE:
WARNING:
the pipe threads. The projector, interface plate and
projector will fall from the pipe if it is unthreaded too
far! A minimum of four threads must be engaged in
order to ensure a secure connection!
2. Adjust projector by turning the projector on the pipe
to the desired yaw position.
3. Tighten yaw adjustment locking screw using a 5/32"
hex key.
3
1
Pitch Adjustment
1. Loosen pitch adjustment locking screw on each end
of the RSE projector mount using a #2 Phillips
screwdriver.
2. Adjust projector angle to desired pitch.
3. Tighten pitch adjustment locking screw on each end
of the RSE projector mount using a #2 Phillips
screwdriver.
3
Installation Instructions
Yaw is only adjustable when attached to a
threaded pipe.
Do not turn the projector to the end of
