DCC INSTALLATION

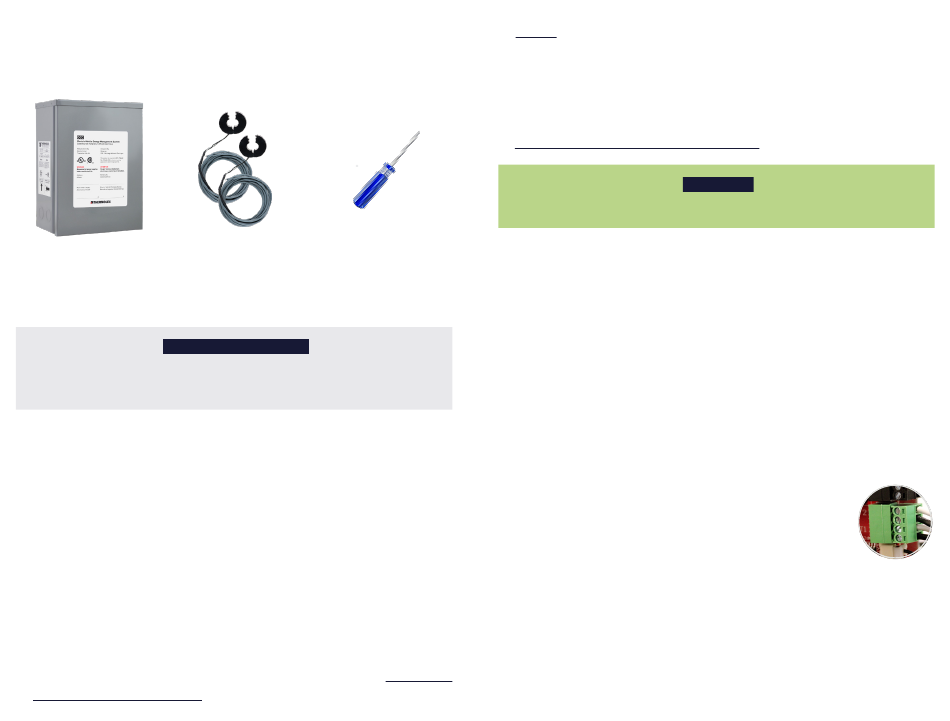

STEP 1: CHECK THE PACKAGE CONTENTS
1 x DCC-12
transformer (CT)
(with 20 feet of wire)
INSTALLATION VIDEO
To access our installation video,
visit our website www.rve-usa.com/products/dcc-12/
STEP 2: PREPARATIONS FOR INSTALLATION
1. Disconnect the main power
2. Select the DCC intended location.
Select an intended location preferably less than 25 feet away from
the electric panel (power source). The current transformers supplied
have a wiring of 20 feet in length, but can be extended (see the section
Step 4: Conductor connexions for the extension details).
The DCC can be mounted:
- on a ceiling
- on a wall
NOTE: The DCC controller must be mounted so that the nameplate
remains visible at all times.
2 x Current
1 x Screwdriver
Do not install the DCC:
- In a location with high level of risk.
- Nearby inflammable materials, explosives or fuels, chemical
products and vapors.
3. Before installation, check the DCC mounting position.
Refer to the information on the enclosure to insure proper installation.
Warranty automatically void if the DCC is installed incorrectly.
STEP 3: INSTALLATION
Wall installation
1. Remove the 4 cover screws.
2. Position the DCC at the intended location.
3. Ensure that the mounting is according with the information's
on the enclosure.
4. Fix the DCC with the anchors provided for the type of surface.
5. Check that the DCC is adequately fixed to the wall or ceiling.
STEP 4: CONDUCTOR CONNEXIONS
Consult the diagram on page 10 for all details on the
cable connections configuration. This diagram is
also found under the DCC cover.
Current transformers (CT) installation and connections
1. Open the CT.
2. Install the CT around the main power cable of the panel.
3. Check the correct polarity on the CTs.
4. Connect the CT cables provided for this purpose to the terminal
blocks (green terminal) on the DCC-12 control board.
5. Connect both shields to the ground lug of the DCC
WARNING
7
