CONTROL BY A THIRD PARTY SYSTEM (EMS)
The DCC control board has a dry contact type input
(black terminal) to be connected to a building energy
management system.
When the contact is:
- Open, the DCC cuts the power to the charging station.
- Closed, the DCC supplies power to the charging station, provided that
the main power supply of the DCC is under the only configured current.
The dry contact type output, which reproduces the state of the dry contact
input, allows several DCCs to be cascaded on a single control signal

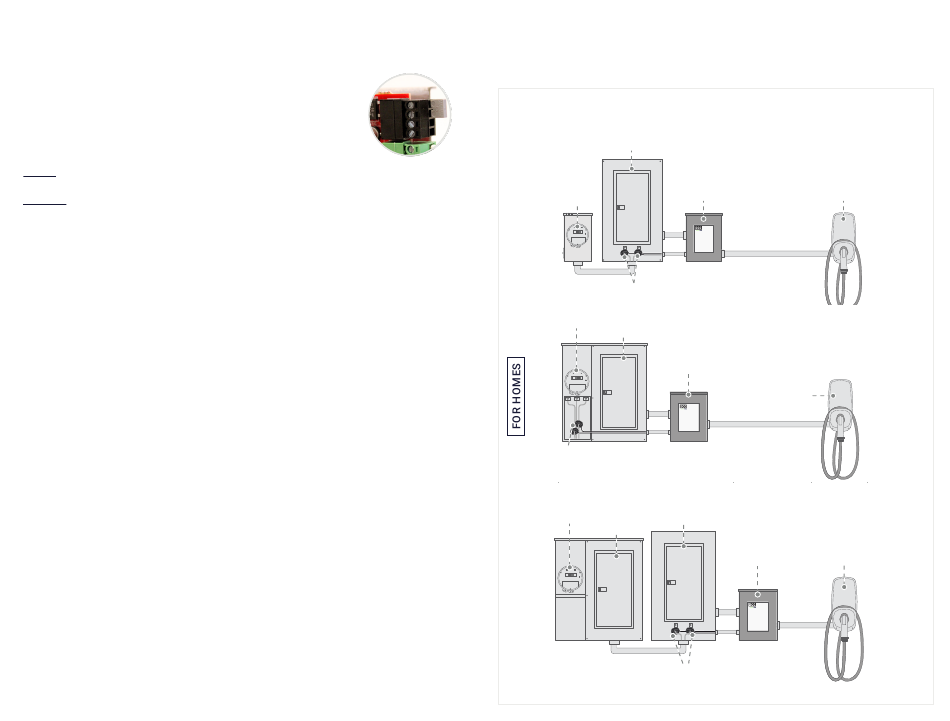

TYPICAL INSTALLATION
Main Panel
Electrical
Meter
Current transformers
Electrical
Meter
ELECTRICAL INFRASTRUCTURES
Main Panel
DCC-12
Current
transformers
ELECTRICAL INFRASTRUCTURES
Electrical
Sub Panel
Meter
Main Panel
Current transformers
ELECTRICAL INFRASTRUCTURES
DCC-12 with
MAIN PANEL
DCC-12 with
MAIN PANEL
DCC-12
EV Charger
by
DCC-12 with
METER BOX PANEL
CHARGING
DCC-12 with
INFRASTRUCTURES
METER BOX PANEL
EV Charger
by
CHARGING
DCC-12 with
INFRASTRUCTURES
SUB PANEL
DCC-12 with
EV Charger
DCC-12
by
CHARGING
INFRASTRUCTURES
6
SUB PANEL
