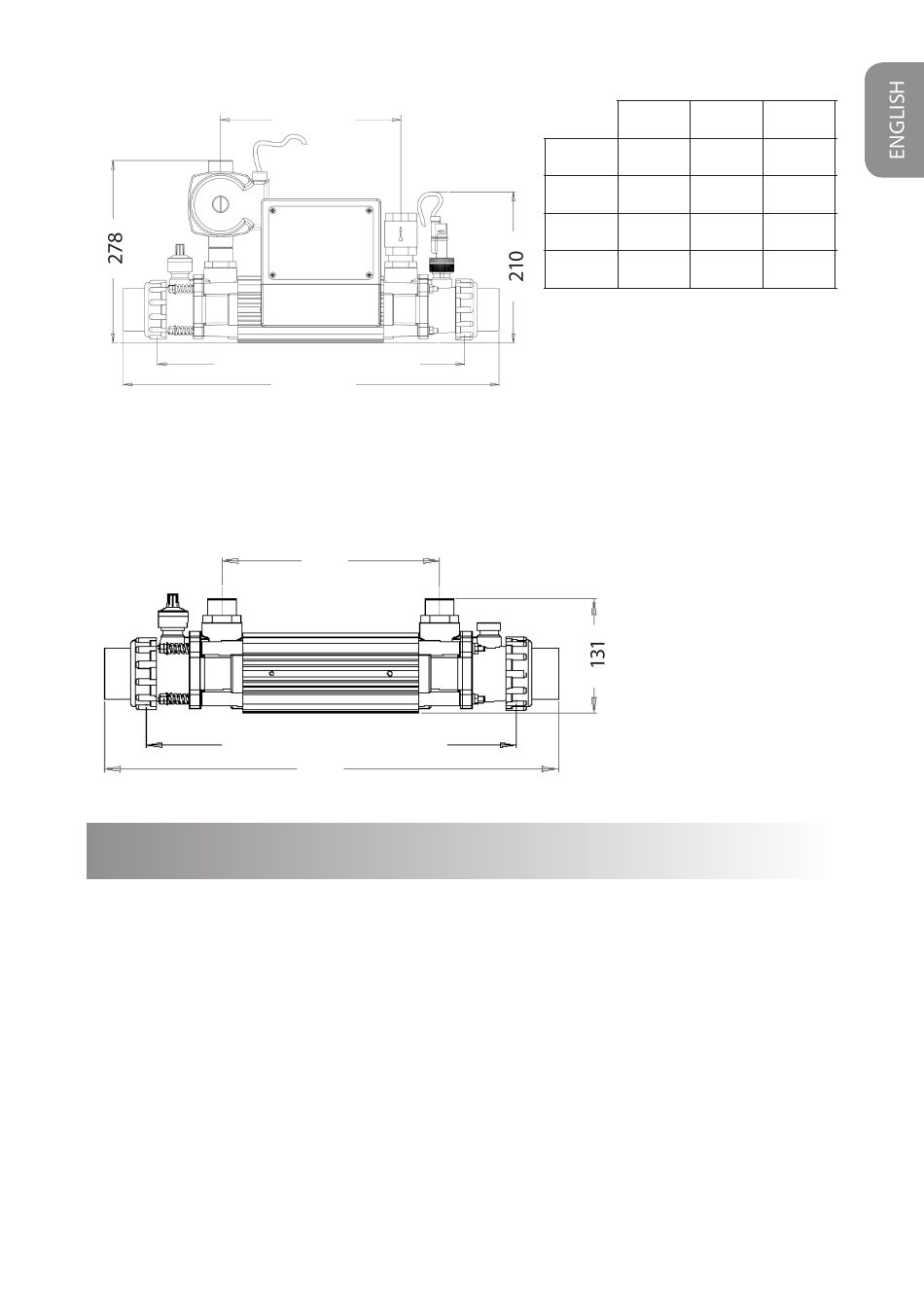

Dimensions (mm) - Optional equipped kit
L2 (without unions)
Dimensions (mm) - Standard G2 heat exchanger
L2 (without unions)
Installation
Your Elecro Heat Exchanger can be installed either horizontally or
vertically. (Please see figures 4 / 5 ) A wall bracket is supplied for the
Horizontal installation only, see figure 6.
L3
L1
L3
L1
www.elecro.co.uk
L1 L2
30-kW 540 426
49-kW 710 596
85-kW 840 726
122-kW 1000 886
L3
247
417
547
707
Fig 2.
Fig 3.
