The heat exchanger should be set up as per the following diagrams,
taking care to respect the indicated flow directions. For pool / pond water
entering on the left side of the heat exchanger, the primary water flow and
equipment should be arranged as shown in fig.9.
For pool / pond water entering on the right side of the heat exchanger, the
primary water flow and equipment should be arranged as shown in fig.10.
Secondary Water flow - left to right
Pump
One way valve
1" femal nipple
Thermostat
Flowswitch

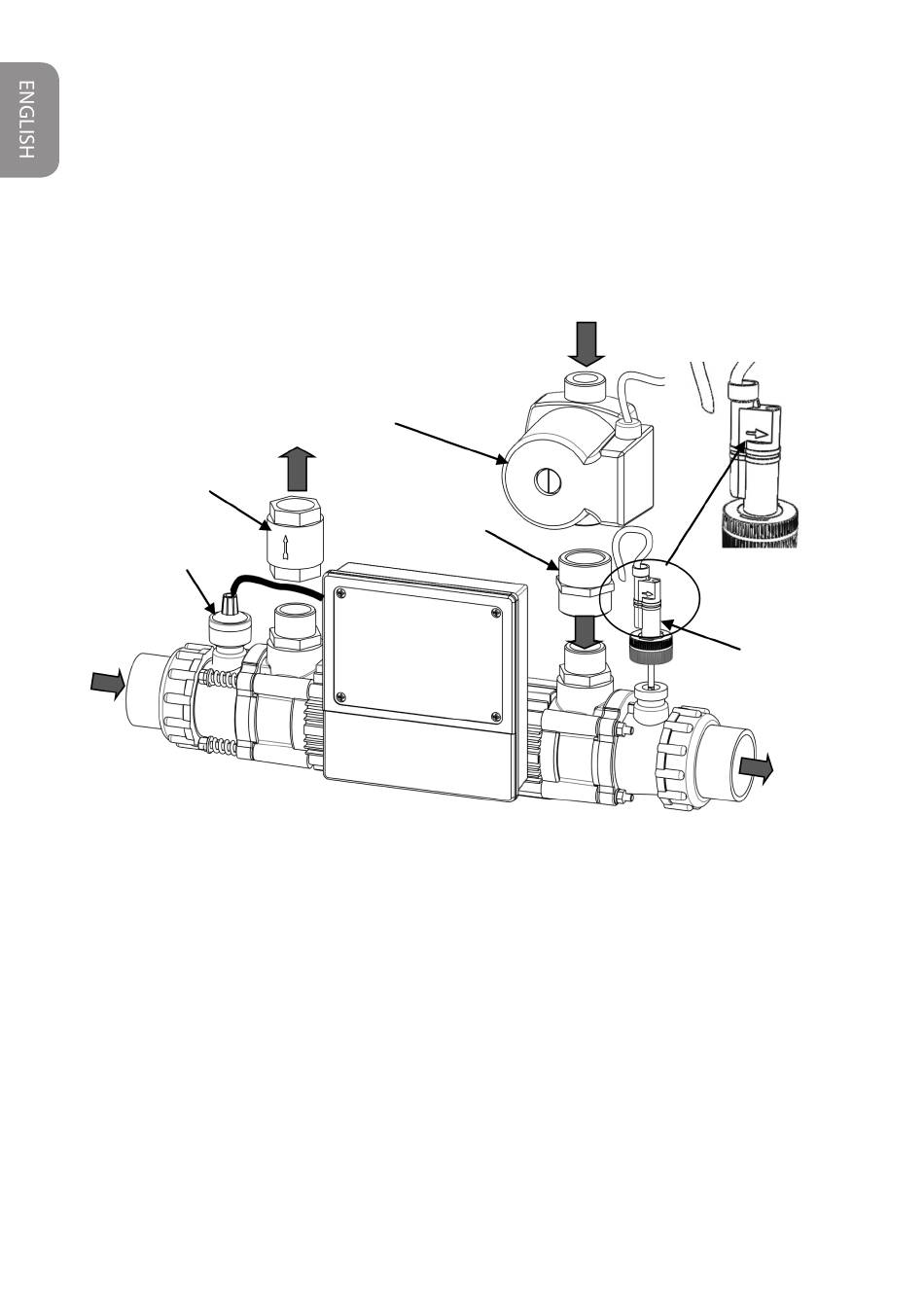

Fig 9.
