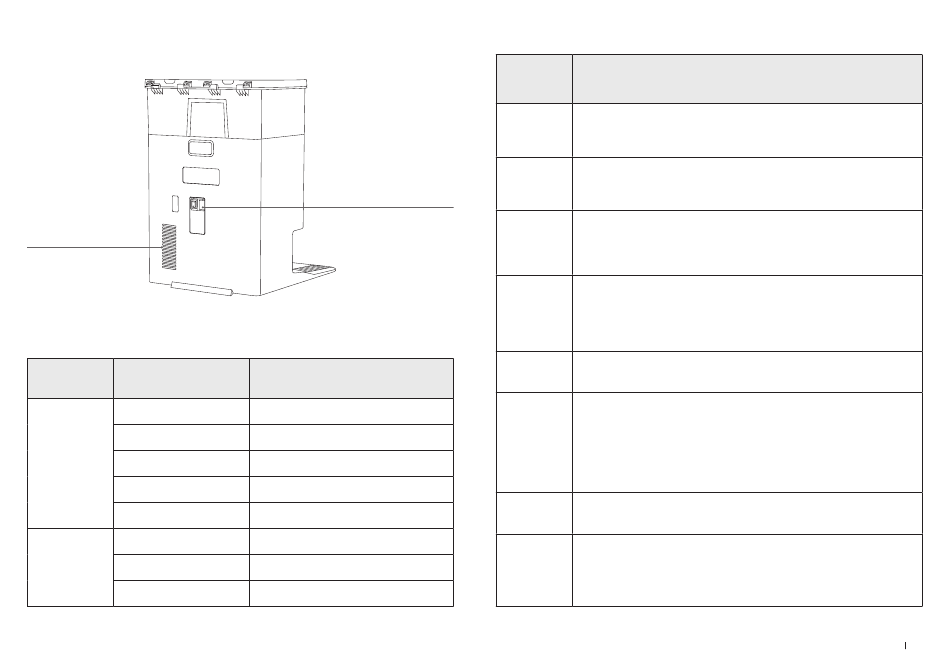

8. Station Back View
Air Vent
9. Indicator Light
Indicator Light Effect
Breathing White
Solid White
Robot Solid Red
Flashing Red
Solid Yellow
Solid White
Station Flashing Red
Goes Out
Power Socket
"I"=ON "O"=OFF
State
Charging
Fully Charged/Running
Low Battery
Alarm
Voice Assistant Mute
Standby/Running
Malfunction
Power Outage/ Deep Sleep Mode
10. Sensors Overview
Name
Functional
Description
Laser Ranging is applied to measure the distance between the robot
d-ToF
and surrounding objects based on the time difference of reflection,
Laser
allowing the module to map against the objects around while the
Module
robot is moving� The detection range is 10 m�
Infrared ranging and similar triangles are applied to measure the
3D Structure
distance between the surrounding objects and the robot� When the
sensor detects an object nearby, the robot will automatically take a
Light Sensor
turn to avoid bumping into the object� The detection range is 0�4 m�
Infrared ranging is applied by the sensor at the bottom of the robot to
measure the height between the bottom of the robot and the ground�
Anti-drop
When there is a height difference, for example, a height above 55 mm
Sensors
on white-colored ground or a height above 30 mm on black-colored
ground, the robot will stop advancing, fulfilling the feature of Anti-drop�
The ultrasound probe can emit ultrasonic waves with a frequency
of 300KHZ� The energy of the ultrasonic waves can be absorbed by
Carpet
carpets� If the reflected energy is below the threshold, the robot will
Detection
recognize the presence of a carpet� According to ECOVACS lab tests,
Sensor
currently, over 50 types of carpets available on the market can be
identified�
When the transmitted signal is blocked by an object, the signal
Anti-collision
receiver will not be able to receive it� With this principle, the robot will
Sensor
avoid obstacles when encountering them�
With Infrared Ranging, the robot can detect the distance
between itself and objects on its right side� When there is a
wall or an obstacle on the right side, the robot will do edge
cleaning to avoid missed spots or collisions� (for model DDX 45)
Edge Sensor
With ToF distance measurement, the robot can detect the distance
between itself and objects on its right side� When there is a wall or
obstacle on the right side, the robot will perform edge cleaning to
avoid missing spots or collisions� (for model DEX 54)
Use AI Camera to collect images of the surroundings for video
AI Camera recording, allowing distant video call via the microphone� FOV: Vertical
Span of 77°, Horizontal Span of 97°
Human voices cause vibrations in the diaphragm of the microphone
through air� As a result, the microphone utilizes the collection and
Microphone algorithms of sound models to achieve sound recording and voice
control of the robot to complete specific tasks� The effective wake-up
distance is 5 m�
Functional Description
