MyGate Matrix ARC02 Manuel D'installation page 13

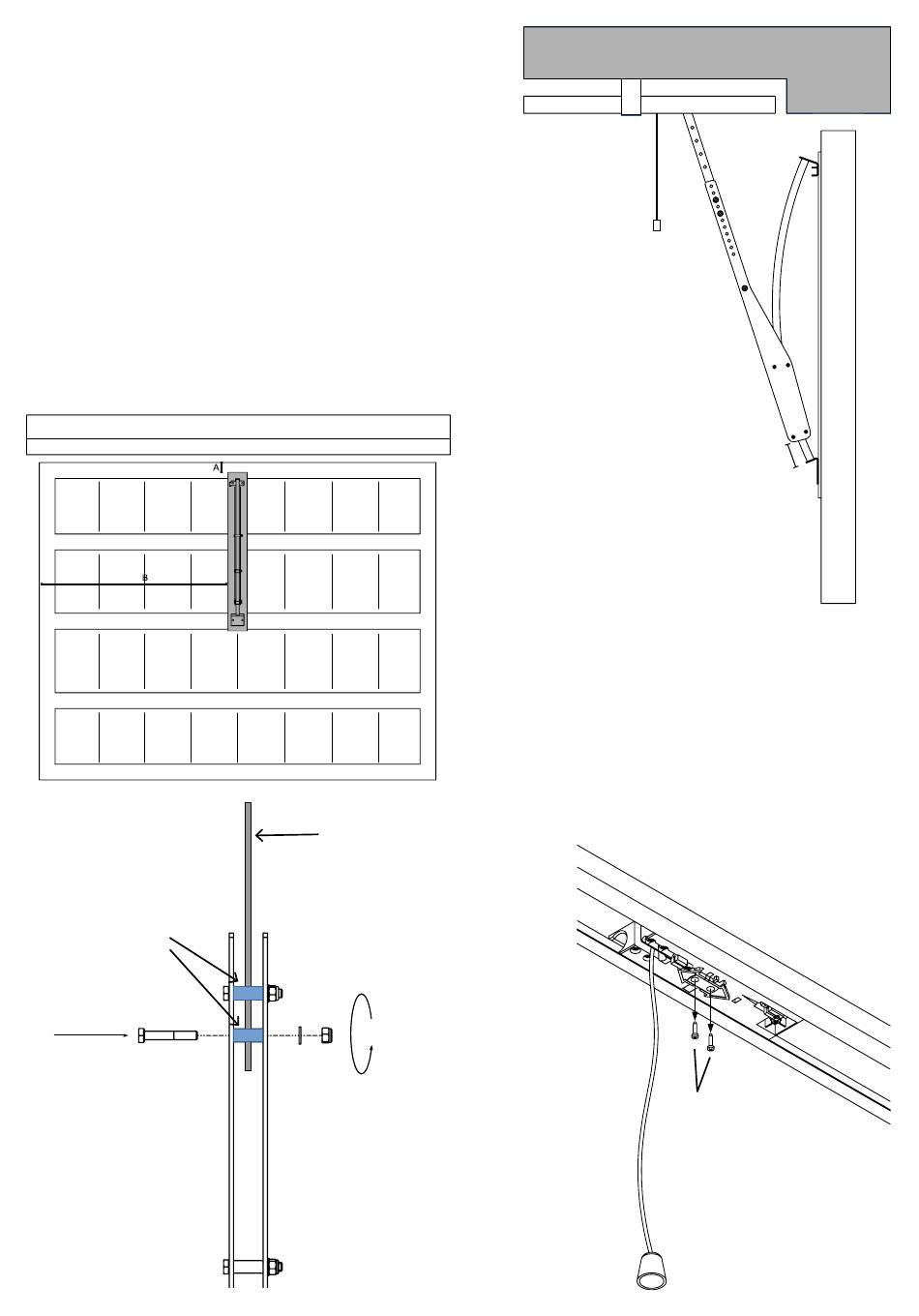

3.2 Fitting the adapter to the door
After assembling the adapter arm proceed to fixing it to the door:
• Put the arm possibly in the middle of the door, or just beside the
handle. Make sure there is a minimum gap of 100mm between the
arm and the rail (Dimension A).
• Fix with screws or weld the arm to the door (screws are not included).
• If it is not possible to fix the arm direct to the door, use a metal
support (not included ) as fixing base (Picture 7).
• Connect the arm to the rail of the opener using the trailer arm
mounted on the trolley (Look at the picture 9 and stay within
60mm).
• Fix the adapter arm to the vertical metal support using the remaining
screws TE 8x50, put spacers 12x11 between the curved arm and the
2 straight arms and complete with washer and self-locking bolt M8
(Picture 8).
• Make sure the adapter arm moves freely.
• Now power the garage door opener and start programming.
Pic. 7
Pic. 8
Spacer
12X11
ARC02 - rev.1.1_03_2021
Pic. 9
3.3
After fixing the adapter arm to the door, remove the stop pin from
the trolley to allow manual operation.
• Loose screws A as hown in Picture10.
• Remove the plastic cover of the release system Picture 11 (Be carefull
• Remove the spring from its compartment as shown in Picture 12.
• Remove the release system's pin B (Picture13).
• Place the cover plastic using screws A (Picture10/11).
Trailer arm
Pic. 10
Removing the stop pin
to the spring, it may fall down).
60 mm
A
