Regin REGIO RC-DFO Instruction

INSTRUCTION
EN
REGIO RC-DFO
i
Read this instruction before installation
and wiring of the product
Room controller with fan switch and display
RC-DFO is a room controller from the Regio Mini series, intended to
control heating and cooling in a zone control system. It has a switch
for controlling a three-speed fan (fan coil), and a display. Installation is
directly on the wall or on an electrical connection box. The controller
does not have a communication connection.
Technical data
Supply voltage 18...30 V AC, 50...60 Hz
Internal consumption 2.5 VA
Ambient temperature 0...50°C
Ambient humidity Max 90% RH
Storage temperature -20...+70°C
Display LCD with background illumination
Built-in temperature sensor NTC Type, range 0...50°C, accuracy
+/-0.5°C at 15...30°C
Inputs and outputs Refer to connection illustrations and table
below
Connection terminals Lift type for cable cross-section 2.1 mm
Protection class IP20
Material, casing Polycarbonate, PC
Weight 110 g
Dimensions 95 x 95 x 28 mm
Installation
Place the controller in a location that has a temperature representative for
the room. A suitable location is approx. 1.6 m above floor level in a place
with unobstructed air circulation.
Remove the frame by depressing the locking tab in the lower edge of the
cover with a screwdriver. See figure 1.
Then prize out the electronics cassette using the four rectangular screwdri-
ver slots and levering against the edge of the bottom plate. See figure 2.
Note: Take care not to damage the electronics when inserting the screw-
driver into the slots.
Figure 1
The bottom plate with terminals has a number of fixing hole combina-
tions. Select suitable holes (see figure 3) and screw the bottom plate onto
the wall or connection box, so that the arrows on the bottom plate point
upwards. Do not tighten the screws too hard!
With surface-mounted cabling, break-out suitable holes from the marks in
the plastic.
RC-DFO has digital outputs for control of a 3-speed fan. The relay module
RB3 can be used to handle fans with 230 V AC supply voltage. For more
information, see separate product sheet for RB3.
2
RC-DFO
Occupancy button
INCREASE button
DECREASE button
FAN button
°C
°C

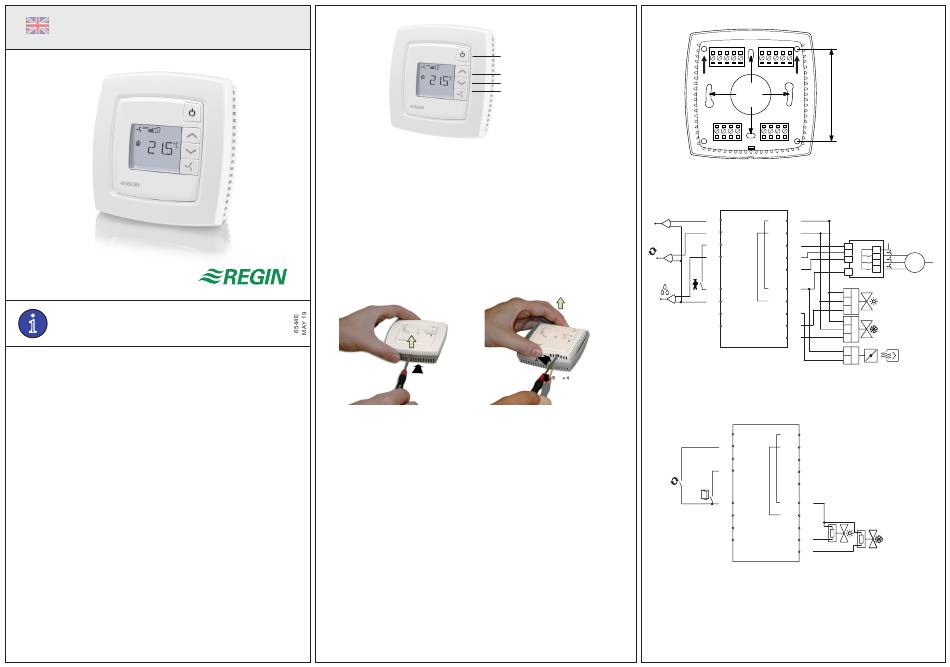

Figure 4. Connection diagram for RC-DFO
Figure 2
10 11 12 13 14 20 21 22 23 24
UP UP
68
60
30 31 32 33 40 41 42 43
Figure 3. Bottom plate with mounting alternatives and loca-
tion of terminals (dimensions in mm.)
30 AI1 G 10
24 V AC
31 UI1 G0 11
32 DI1 DO1 12
12
13
33 DI2/CI DO2 13
14
DO3 14
20
40 +C GDO 20
G
41 AGnd G0 21
G0
Y
42 - DO4 22
G
43 - UO1 23
G0
UO2 24
Y
G
G0
30 AI1 G 10
31 UI1 G0 11
32 DI1 DO1 12
33 DI2/CI DO2 13
DO3 14
40 +C GDO 20
41 AGnd G0 21
42 - DO4 22
43 - UO1 23
UO2 24
Figure 5. Alternative connection for terminals 31, UI1, and terminal
33, DI2/CI, terminal 23, UO1, and terminal 24, UO2.
L
RB3
30
I
31
II
M N
32
III
33
