MOUNTING THE BLADE

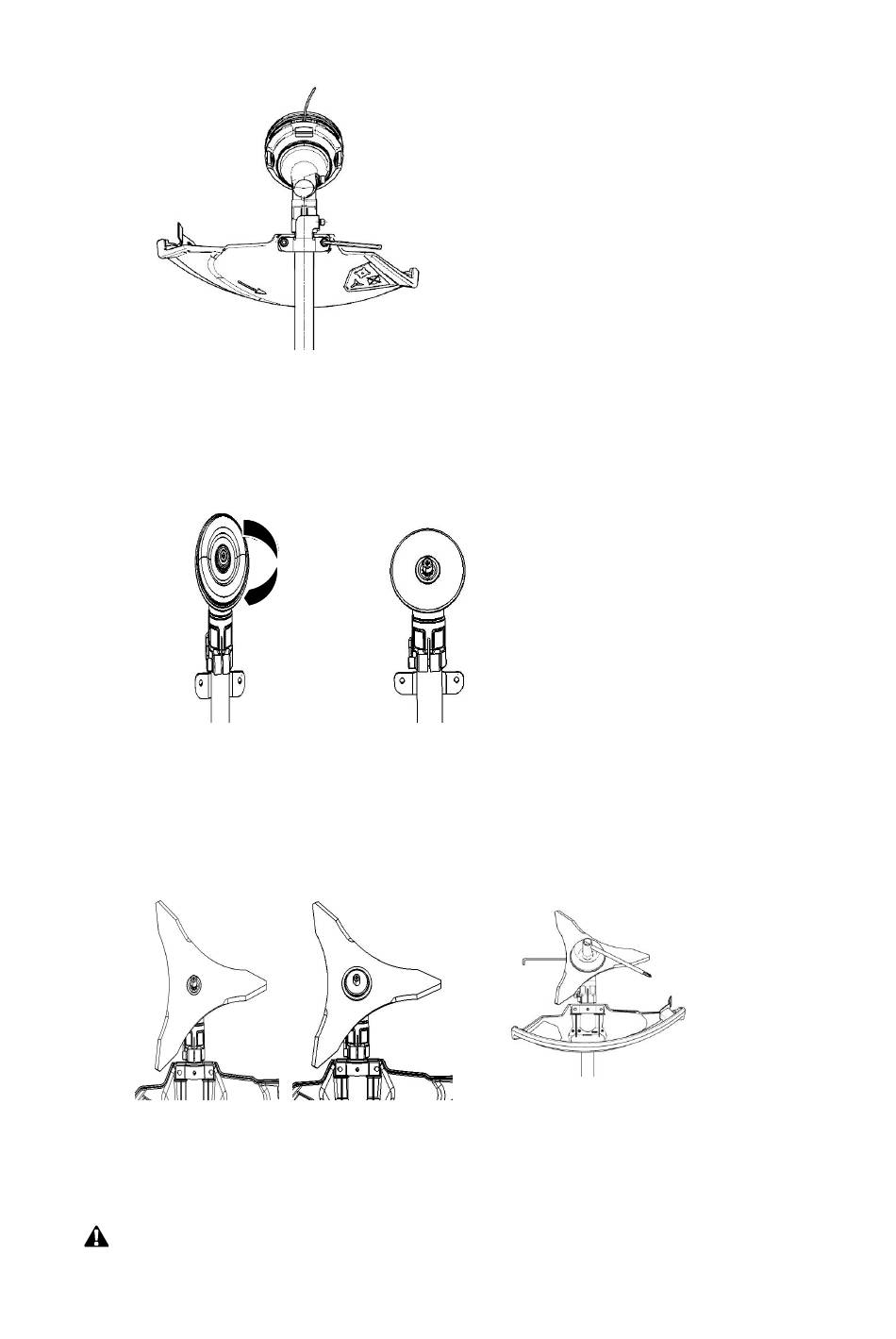

1. Disassemble the nut(clockwise), spool retainer, and support plate from gear case (Fig.7&8)
2. Align the blade onto the support plate, insert the #1 Allen key inside the hole, and put the blade on
the support plate, align the flange, dust cover, and screw the nut with provided socket wrench by
anti-clockwise direction until it is tight enough (Fig.9&10&11)
Fig.9
WARNING:
Always wear gloves when mounting or replacing the blade. Be careful of the 3T blades and
line cutting blade on the guard and protect your hands from being injured by the blades.
Fig.6
Fig.7
Fig.10
11
Fig.8
Fig.11
