Sawing along the scribe mark

The cut indicators display the cutting sequence
without a guide rail:
0° cuts: [7-1]
45° cuts: [7-2]
9.9 Cutting sections
Position the saw with the front part of the saw
table on the workpiece, switch on saw and push
forward in cutting direction.

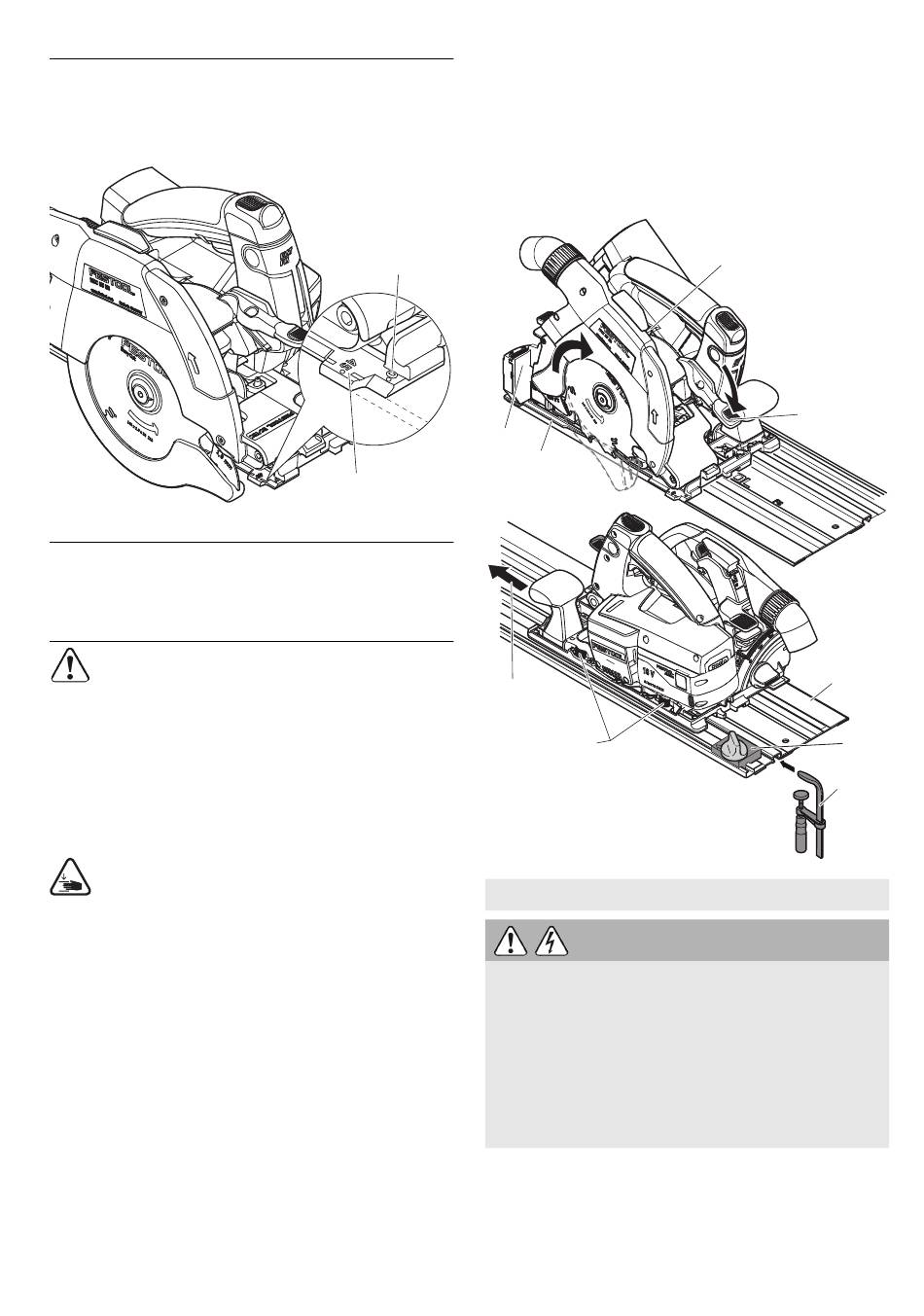

9.10 Sawing cut-outs (plunge cuts)
In order to avoid kickbacks, the following
instructions must be observed without fail when
plunge cutting:
– Always position saw with the rear edge of
the saw table against a fixed stop.
– When working with the guide rail, place the
saw against the kickback stop FS-RSP (ac­
cessories) clamped to the guide rail.
Caution! Danger of crushing!
Always keep a firm grip on the machine
with your free hand when adjusting plunge cuts.
Never position your fingers behind or below the
saw blade.
Procedure
► Adjusting cutting depth, see section
► Press lever [8-1] down.
Sawing unit swivels upwards to plunge-cut po­
sition.
► Hold retractor lever [8-2] downwards as far
as stop.
Pendulum guard [8-4] opens and the saw blade
is exposed.
► Position saw on workpiece and position
against a stop (kickback stop).
► Switch on saw.
► Slowly press down saw to the set cutting
The notch [8-3] indicates the absolute rear cut­
ting point of the saw blade (6-14" (Ø 160 mm))
when using the saw at maximum cutting depth
7
with the guide rail.
7-1
0°
45°
8-4
7-2
8-9

10 Service and maintenance

Risk of injury, electric shock
► Always remove the battery pack from the
8.2 .
► All maintenance and repair work which re­
depth until the saw engages, release re­
tractor lever [8-2] and push forward in cut­
ting direction [8-9].
8-3
8-8
WARNING
power tool before performing any mainte­
nance or service work.
quires the motor housing to be opened
should always be carried out by an author­
ised service workshop.
