Parameter list
(cont')
Configuration of the
accessories connected
to the auxiliary output
■
Programming
the radio safety
edge modules
■
Replacing
the radio safety
edge transmitter
battery
8
All manuals and user guides at all-guides.com
Contact to drive an electric latch (the latch must be
supplied with an independant power supply)
Contact to drive an electromagnetic latch
Contact to drive an signal light without delay
Contact to drive an signal light without delay
(before starting and during door's operation)
Contact to drive an open door indicator
The radio safety edge modules are
factory pre-programmed. This procedure
is only required when
the modules.
Open the Axroll
boxes.

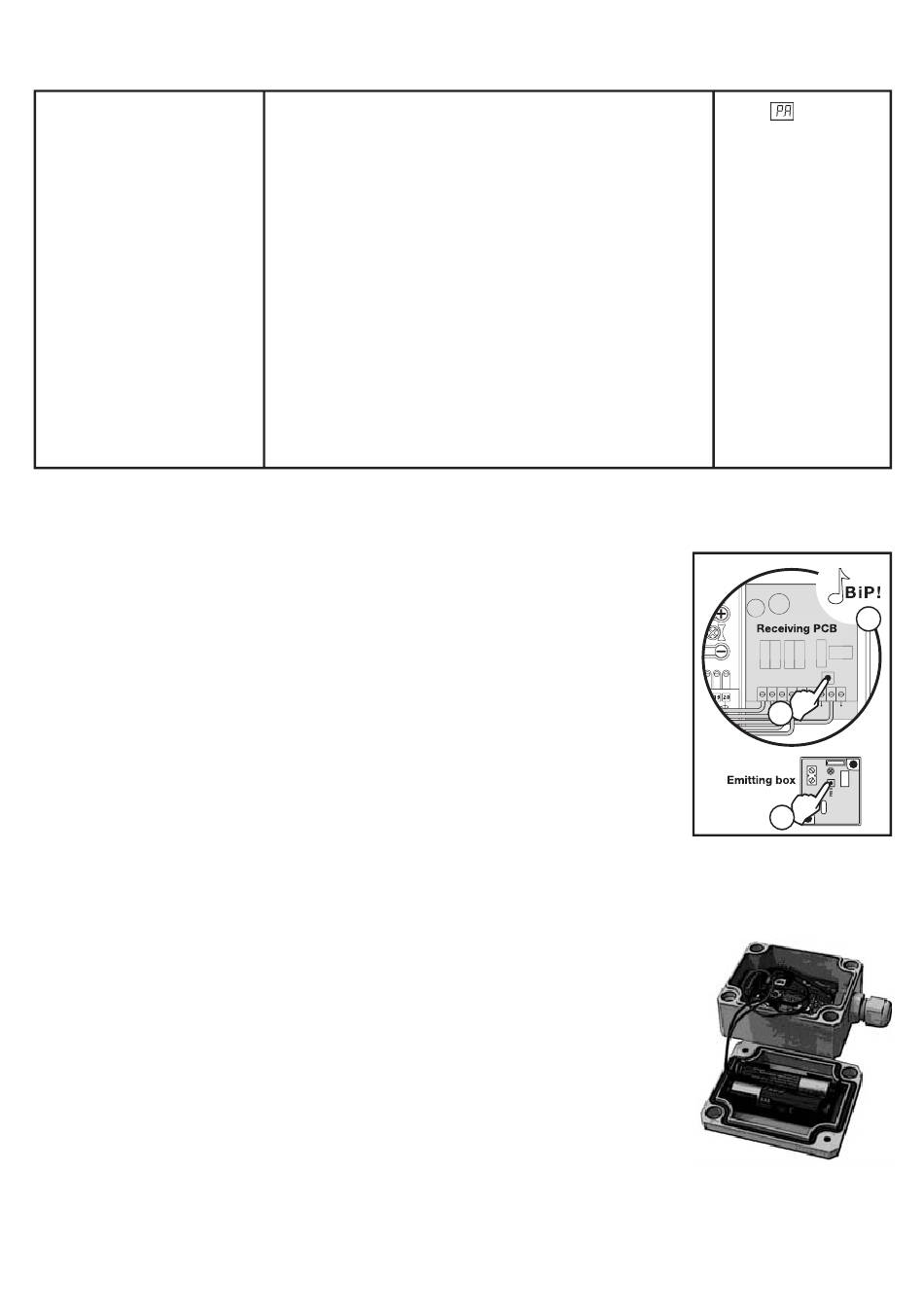

Press the receiver "PROG" (1) button for 1s.
A short 'beep' will be heard.
Press the transmitter "PROG" (2) button.
The receiver confirms the programming with a
short 'beep' (3).
This procedure must be completed within
10 seconds, or the receiver will drop out of the
programming mode (2 x short 'beep' signals).
The radio safety edge transmitter will emit
4 short 'beep' signals every 20 seconds, when
the battery is low of charge.
Remove the transmitter cover.
The batteries are mounted on the underside of
the cover.
Replace the existing batteries with new ones,
taking care to insert the new batteries in the
correct polarity indicated by the connector.
Battery type: 2 x 1.5V LR03 AAA
Battery life: 2 years
(only during the door's operation)
Contact to drive area lighting
(automatic cut off after delay t3)
Contact of the stable mono relay
to drive an automation system
Contact of the bi-stable relay
to drive an automation system
re-programming
NS and transmitter module
= 00
01
02
03
04
05
06
07
