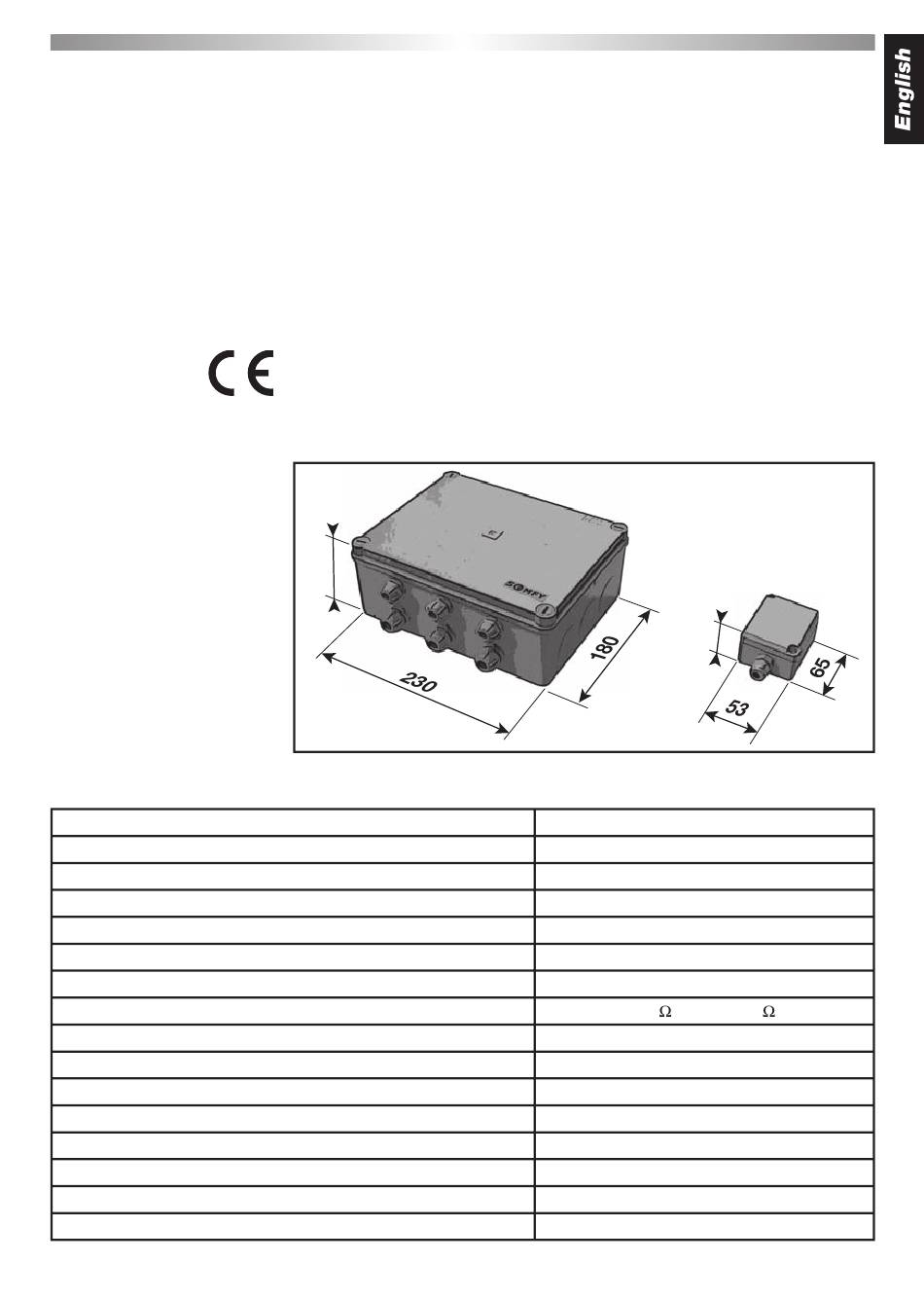

Description
■
Dimensions
■
Characteristics
Power supply
Fuse
Motor power
Protection rating
Ambient operation temperature
Radio frequency
Accessories power
Resistive safety edge
Max. current for accessories
Signal light
Area lighting
Auxiliary output
Operating Class
Number of max. channels
Radio range for safety edge modules
Radio frequency for safety edge modules (bi-directional)
All manuals and user guides at all-guides.com
Installation
The AXROLL receiver is used to control a rolling garage door fitted with
a 230V motor with integrated mechanical endstops. The Axroll is
compatible with the Somfy RTS range of controls. Additionnally to the
radio safety edge (resistive), numerous safety and signaling devices can
be connected to the AXROLL (photocells, signal lights, area lighting).
This product complies with the standard EN60335-2-95. When installed
as recommended in this instruction manual and in accordance with
regulations in force, the system controlled by the Axroll will comply with
EN 13241 and EN 12453 standards. By ignoring these instructions,
Somfy will not be responsible for any resultant damage caused. The
Axroll must be installed inside the garage and connected to a motor
equipped with a manual over-ride system (LT CSI).
Hereby, SOMFY, declares that this product (AXROLL) is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. A Declaration of
Conformity is available at the web address www.somfy.com/ce (Axroll NS radio safety edge).
90
In mm.
35
220-240 Vac / 50-60 Hz
250 Vac / 5 A - AF
230 Vac 750 W
IP 55
-15 à +55 °C
433,42 MHz
24 Vcc
4 K
< R < 12 K
0,33 A / 8 W max
24 Vdc, 10 W max / 230 Vac, 40 W max
250 Vac, 500 W max
Contact NO / 250 Vac, 500 W max
I
32
10 m
868.90 MHz
3
