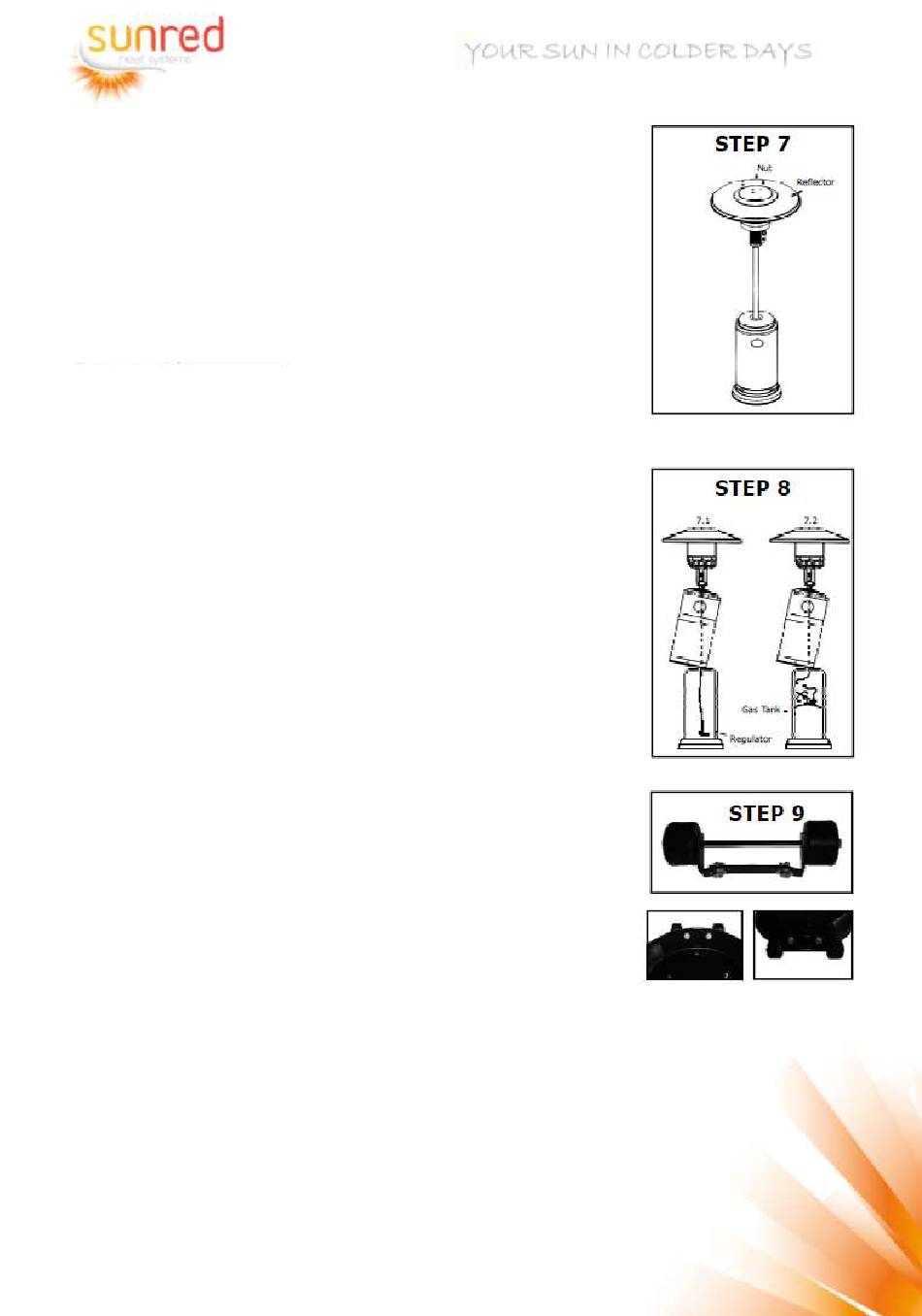

STEP 7
7-1. Put the reflector on top of the burner and passing through 4 pcs burner/reflector
support bolts.
7-2. Fit washers into each support bolt and tighten each by M8 castle nut.
STEP 8
8-1. Bring up the tank housing and rest it on the post plate.
8-2. Fit the gas regulator rubber hose with the end thread of inlet gas steel pipe and tighten the nut.
8-3. Connect the regulator with the LPG gas tank in counter-clockwise direction and tighten it
by adjustable wrench.
8-4. Put the LPG gas tank into stand.
STEP 9 Attach Wheel (Optional) Assembly to Base
9-1. L i n e u p h o l e s i n W h e e l B r a c k e t w i t h corresponding holes in
Base.
9-2. Be sure that the Wheel Assembly is parallel to the base, and fully tighten bolts.
