Step 6

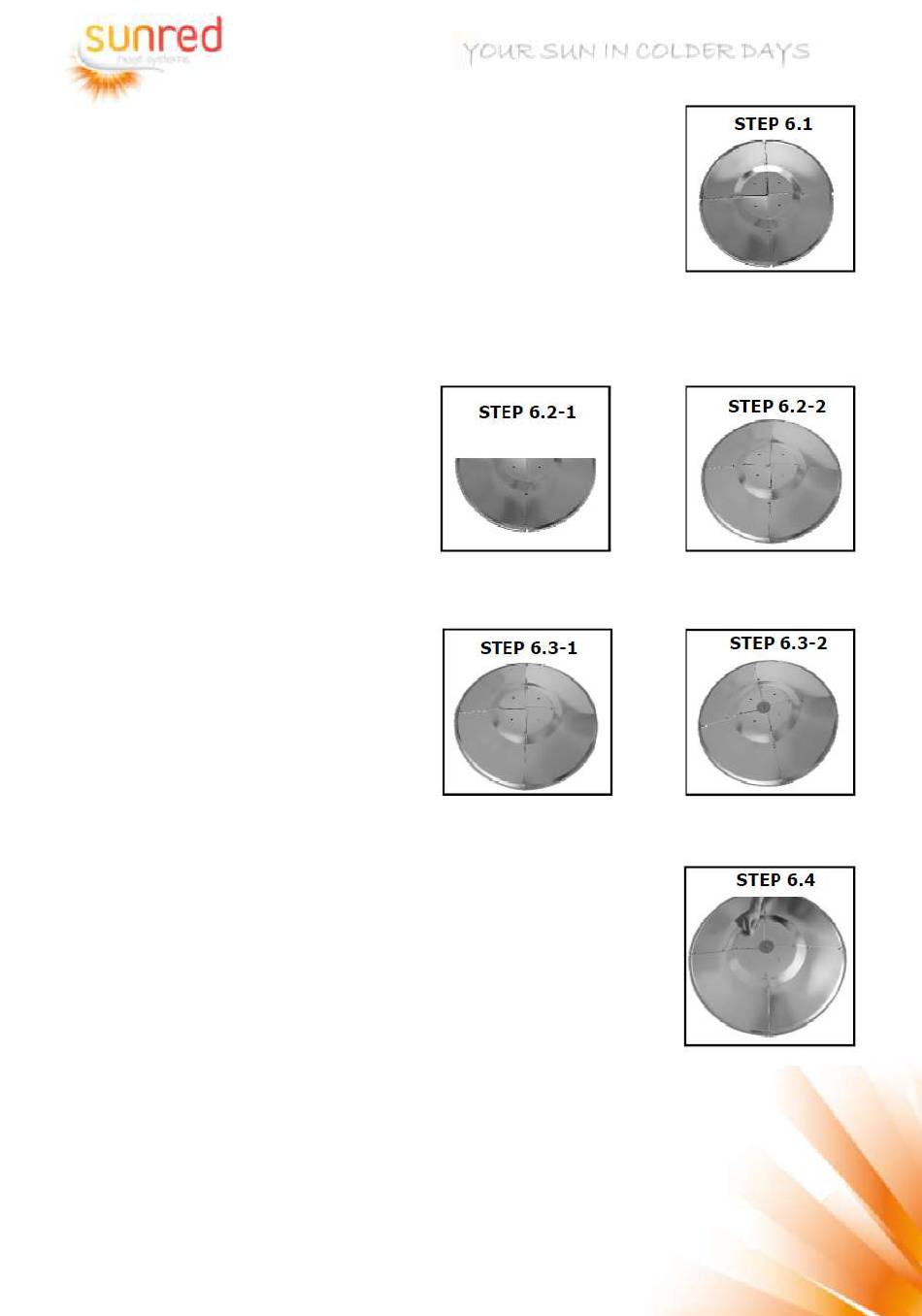

6.0 Open the packing box, show you 4 pieces of reflector, shown as picture 6.1
6.2 Install the reflector one by one with bolts (M5), nuts .
Shown as picture 6,2-1, 6.2-2
6.3 Tightening the reflector with a bolt (M6), a nut, 2 pieces washers at the center,
shown as picture 6.3-1, 6.3-2
6.4 Put the total reflector on top of the burner and passing through 4 pcs burner/reflector
support bolts.
