Dimensions et dégagements
A. Dimensions
31-1/2 in (800mm)
31-1/2 in (800mm)
23-5/8 in (602mm)
23-5/8 in (602mm)

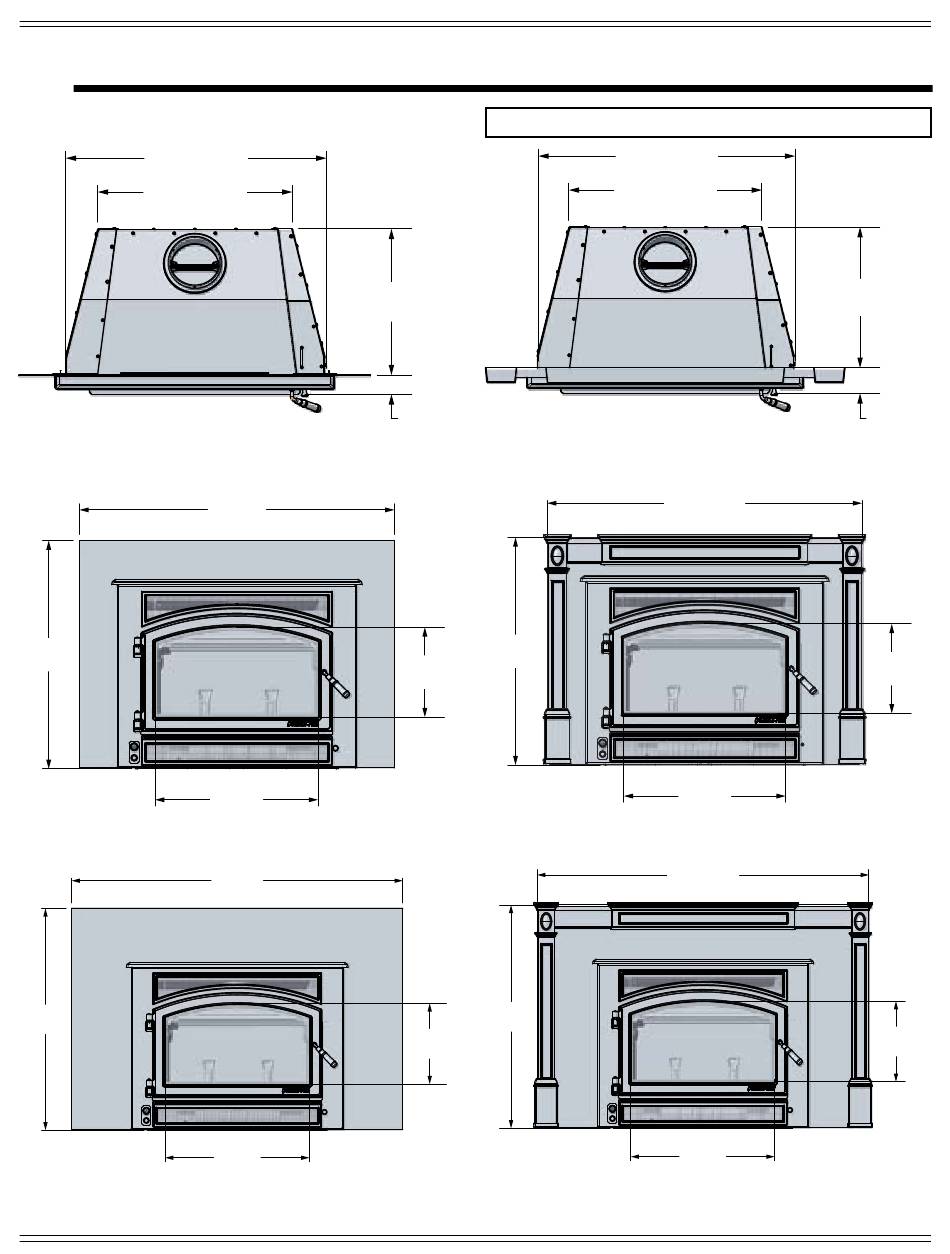

Figure 8.1 - Vue de dessus avec encadrement mat
31 in
31 in
(787mm)
(787mm)
Figure 8.2 - Vue frontale avec petit encadrement mat (SP2-4331)
34 in
34 in
(864mm)
(864mm)
Figure 8.3 Vue frontale avec grand encadrement (SP2-5134)
8
18 in
18 in
(457mm)
(457mm)
42-3/4 in
42-3/4 in
(1086mm)
(1086mm)
22-1/4 in
22-1/4 in
(564mm)
(564mm)
50-3/4 in
50-3/4 in
(1289mm)
(1289mm)
22-1/4 in
22-1/4 in
(564mm)
(564mm)
REMARQUE : Buse d'un diamètre de 152 mm (6 po)
2-3/8 in
2-3/8 in
(60mm)
(60mm)
Figure 8.4 – Vue de dessus avec encadrement en fonte
31 in
31 in
(787mm)
(787mm)
12-3/8 in
12-3/8 in
(313mm)
(313mm)
Figure 8.5 - Vue frontale avec petit encadrement mat (CT2-4331) et
garniture en fonte (811-0930)
34 in
34 in
(863mm)
(863mm)
12-3/8 in
12-3/8 in
(313mm)
(313mm)
Figure 8.6 - Vue frontale avec grand encadrement mat (CT2-5134) et
garniture en fonte (811-0930)
FC7095-802C
31-1/2 in (800mm)
31-1/2 in (800mm)
23-5/8 in (602mm)
23-5/8 in (602mm)
43 in (1092mm)
43 in (1092mm)
22-1/4 in
22-1/4 in
(564mm)
(564mm)
51 in (1295mm)
51 in (1295mm)
22-1/4 in
22-1/4 in
(564mm)
(564mm)
17-1/4 in
17-1/4 in
(438mm)
(438mm)
3-1/8 in
3-1/8 in
(79mm)
(79mm)
12-3/8 in
12-3/8 in
(313mm)
(313mm)
12-3/8 in
12-3/8 in
(313mm)
(313mm)
