Scope of supply
Drive unit
Depending on the type of window, different bracket
sets are available separately.
NOTICE
The drive is supplied without connection cable.
Pre-assembled silicone cables with connectors or
connectors only must be ordered separately.
Selection guide see page 18.

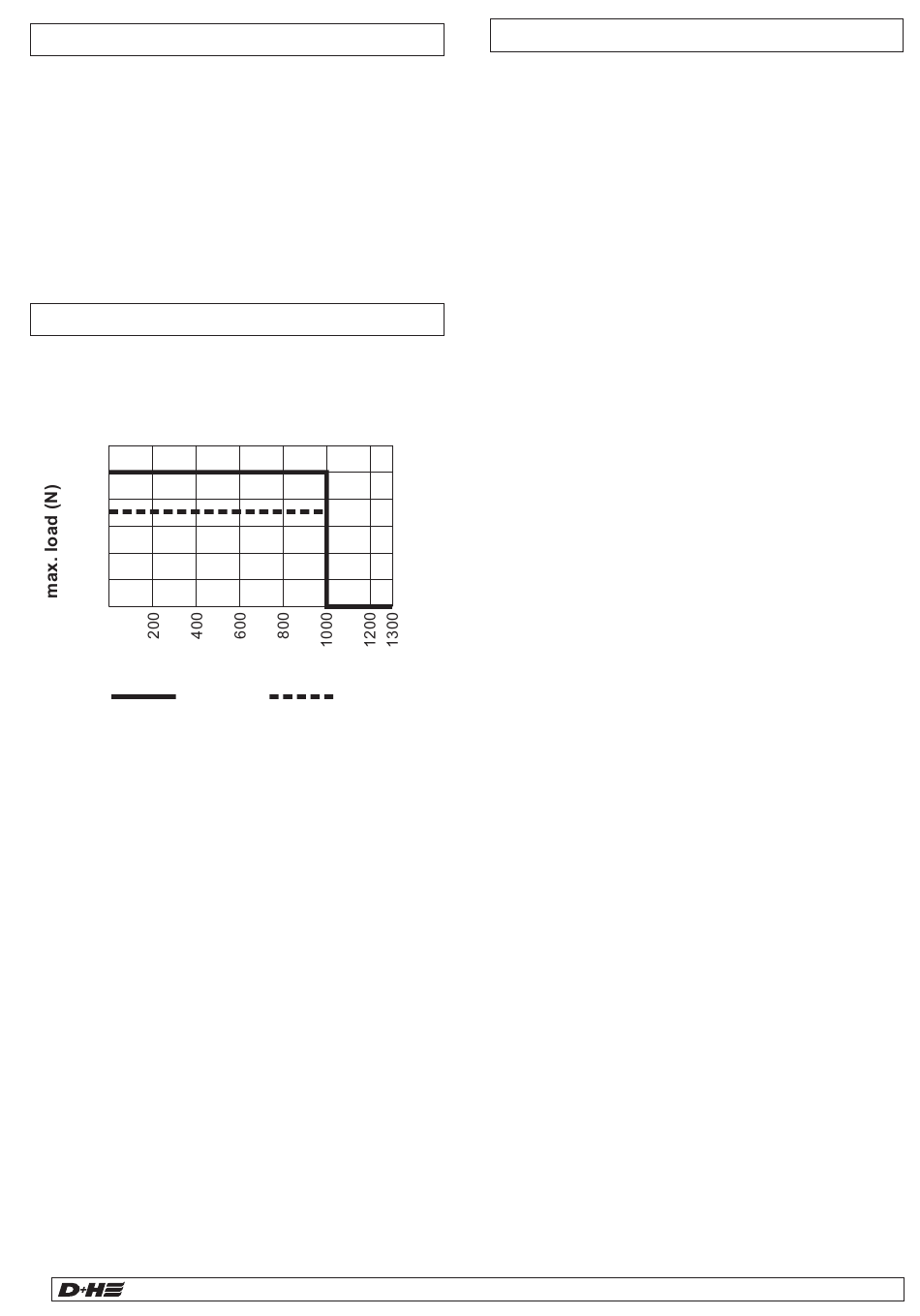

Pressure load diagram
Observe maximum pressure load of the chain!
Maximum pressure load of chain is not automatically
identical with maximum pressure force of the drive!
1200
1000
800
600
400
200
0
1000 N
99.829.30 1.0/09/24
Stroke (mm)
700 N
Features
- Micro processor controlled electronics
- SHEV-high speed function (fast-running feature in
case of an alarm)
- Relief of pressure on window gasket after closing
- Outstanding quiet performance thanks to
acoustic decoupling of the drive components and
reduced motor speed in ventilation mode
- High-strength, hardened, rigid steel chain with
corrosion protection and lifetime lubrication
- Particularly efficient, wear-free, brushless motor
- Short overall length due to 3-fold chain deflection
- Centre chain outlet
- Plug-in cable connection, plug connector with
screw terminals
PLP version:
- Stroke programming with magnet
- Individual programming, e.g. of the opening
stroke, via Powerline (PLP1 and SCS software)
ACB version:
- ACB (Advanced Communication Bus) bus
interface with ModBus protocol for the connection
to compatible D+H control panels or direct
integration into building management systems,
for example
- BSY+ electronics for reliable and accurate
synchronous operation of up to 4 drives
- Rated voltage and Bus-signals loopable for max.
2 drives
- Direct connection of additional closing edge
protection at the drive possible (SKS option)
- Individually programmable via software SCS
