Dometic Basic Chiller Control Instructions De Montage page 14

EN

The cooling setpoint value is changed.

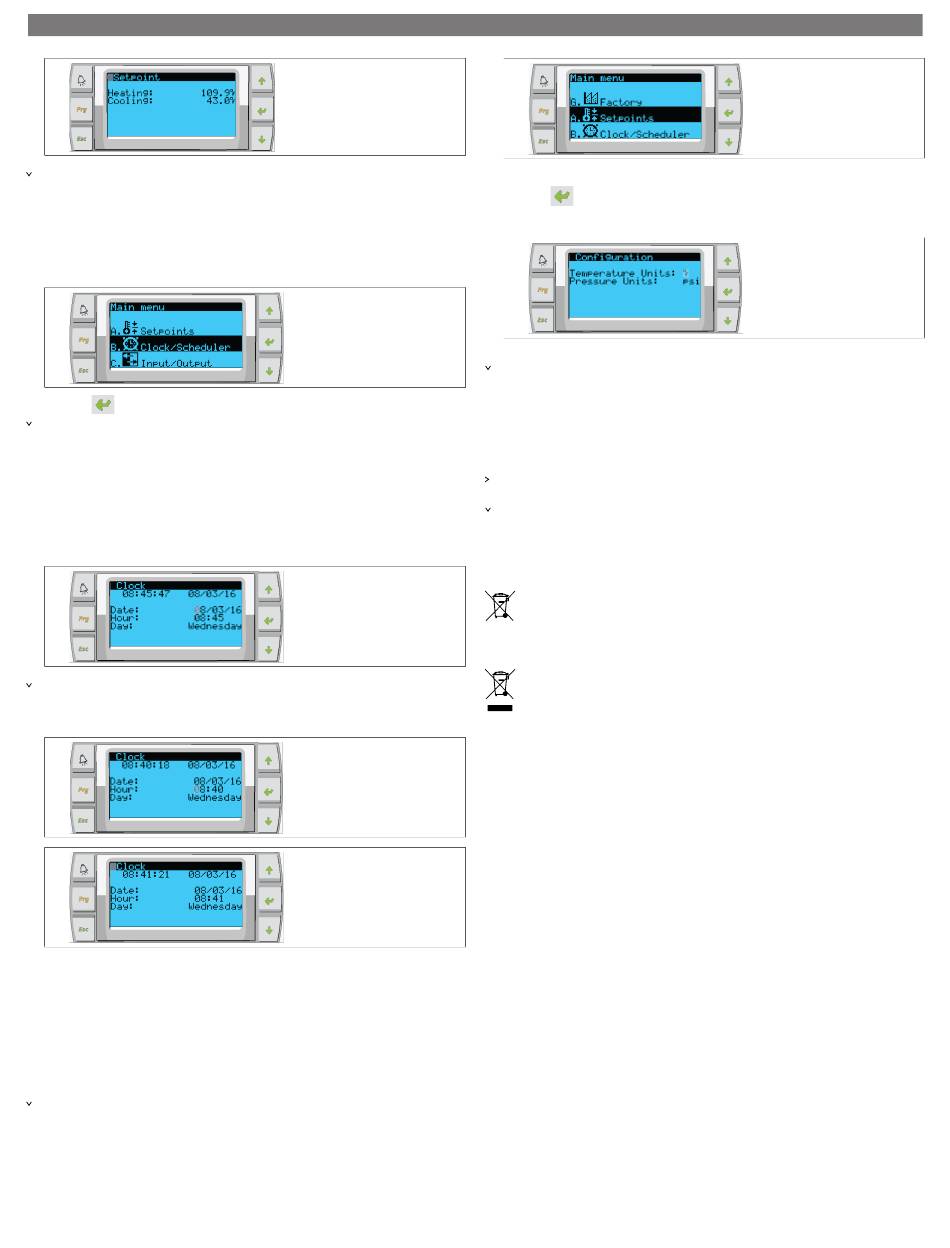

9.5 Setting time and date
1. Press the Prg (program) button.
2. Scroll to Clock/Scheduler.

3. Press the
(enter) button.
The cursor flashes on the date field: mm/dd/yyyy.
4. Use the scroll up and scroll down buttons to select the correct month.
5. Press the enter button.
6. Press the scroll up and scroll down buttons to select the correct day.
7. Press the enter button.
8. Press scroll up and scroll down buttons to select the correct year.
9. Press the enter button.

The cursor moves to the Hour field.
10. Use the scroll up and scroll down buttons to select the correct hour, then select the
minute.


• The cursor goes back to the Clock title. Settings have been saved and you can
exit to the main screen.
• Daylight savings time is enabled by default. If you wish to disable, scroll down
from the Clock screen.
9.6 Changing temperature display units
1. Press the Prg (program) button.
The Main menu screen is displayed.
2. Scroll down to Setpoints.
3. Enter the password .
3156
14

4. Scroll down to the Temperature Units screen.
5. Press the
(enter) button.
6. Use the scroll up and scroll down buttons to toggle between options.

7. Aer selecting the desired option, press the enter button.
The cursor returns to the top of the screen.
8. Make this change to all stages so that it correctly reflects temperature readings on
the remote display.
9.7 Viewing the software version
For the soware revision number to be displayed on the screen or on the main status
screen, switch on the power of the system.
PLC is enabled for user selection.
10 Disposal
Place the packaging material in the appropriate recycling waste bins,
wherever possible. Consult a local recycling center or specialist dealer
for details about how to dispose of the product in accordance with the
applicable disposal regulations.
Recycling products with batteries, rechargeable batteries, and light sources:
Remove any batteries, rechargeable batteries, and light sources before
recycling the product. Return defective or used batteries to your retailer
or dispose of them at collection points. Do not dispose of any batteries,
rechargeable batteries, and light sources with general household waste. If
you wish to finally dispose of the product, ask your local recycling center
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations. The product can be disposed free of charge.
11 Warranty
Refer to the sections below for information about warranty and warranty support in the
US, Canada, and all other regions.
Australia and New Zealand
dometic.com/en-us/terms-and-conditions-consumer/
warranty. If you have questions or to obtain a copy of the limited warranty free of
Limited warranty available at
charge, contact:
DOMETIC AUSTRALIA PTY LTD
1 JOHN DUNCAN COURT
VARSITY LAKES, QLD, 4227
1800-212-121
DOMETIC NEW ZEALAND LTD
373 NEILSON STREET
PENROSE, AUCKLAND, 1061
+64 9 622 1490
