OPERATING INSTRUCTIONS CONTROL PANEL 3010 214

Please read these instructions carefully before using the boiler. For Operating and Installation Instructions of
boiler, please see separate instruction. These instructions are approved for the Alde Compact 3010 boiler fitted in
recreational vehicles, in accordance with ANSI 21.13-2014, CSA 4.9-2014.
Installation and repairs may only be carried out by a professional. National regulations must be adhered to.

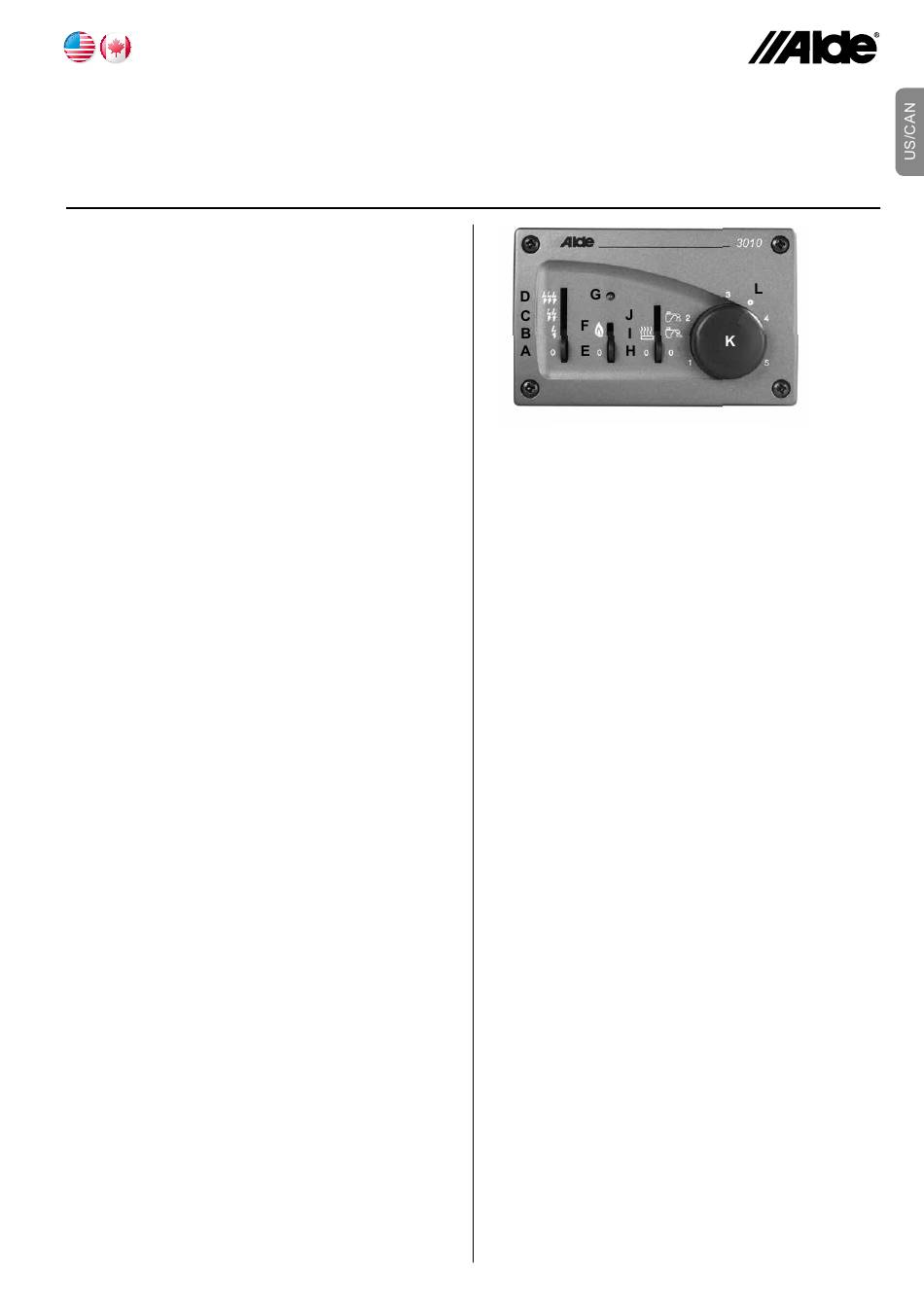

Functions of the control panel:

A. Electrical cartridge OFF.
B. Electrical cartridge no.1 ON at 950 W
C. Electrical cartridge no.2 ON at 950 W
D. Electrical cartridge no.1 and 2 ON at total 1900 W
E. LP gas burner OFF.
F. LP gas burner ON.
G. Red LED flashes if the voltage to the boiler goes below
10,5 V (automatic resetting at higher voltage). Fixed light,
the LPG boiler has become blocked (resetting by the cen-
tral switch for LPG) or overheated (resetting by the main
switch of the vehicle). The temperature sensors of the
boiler could be defective as well (resetting not possible).
H. Electrical cartridge/LP gas boiler/Circulation pump
switched off.
I. (Normal mode) Circulation pump ON and controlled
by the thermostat on the control panel. The operation of
the electrical cartridge/LP gas boiler is controlled by the
boiler's built-in thermostat. This mode is used when both
heat and hot water 131°F (55°C) are required.
NB! If both the electrical cartridge and the LP gas boiler
are ON, the electrical cartridge heats up first and the LP
gas boiler only starts when the room temperature has
gone down by 2-4°F (1-2°C).
J. Only hot water 149°F (65ºC) circulation pump is
switched off.
NB! If both the electrical cartridge and the LP gas boiler
are ON, only the electrical cartridge heats up.
K. Dial for setting the desired room temperature.
L. Guide for setting the room temperature to approxi-
mately 72°F (22°C).
