start-up
System interface

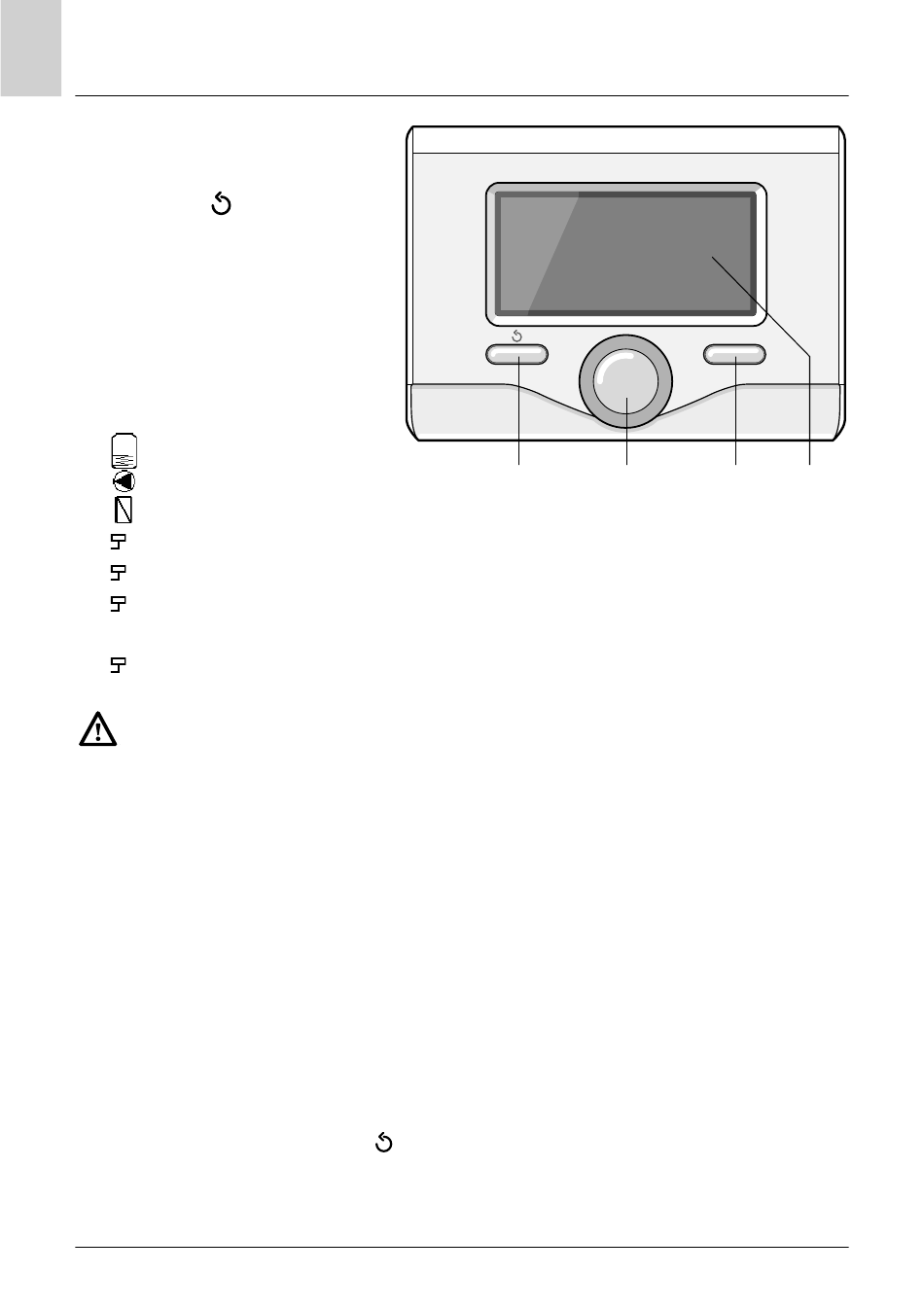

Buttons:
1. back button
(previous visualisation)
2. knob
OK
3. button
(to confi rm operation or access main
menu)
4. display
Display symbols:
- ( ) Single-coil indirect cylinder
- ( ) Circulator
- ( ) Heat exchanger
S1) Sanitary water outlet sensor
- (
- ( S2) Heating circuit inlet sensor
- ( S3) Heating circuit outlet sen-
sor
- ( S4) Sanitary water inlet sensor
Warning
To ensure the safety and correct operation
of the module, the latter must be started-
up by a legally qualifi ed and authorised
technician.
Ignition procedure
- Power the module.
- Remove the cover of the control unit con-
nection shoe (see electrical diagram).
- Insert the remote control in the connec-
tion plate by pushing gently downwards;
the remote control is connected once the
device is recognised.
- The display will visualise the hydraulics
diagram.
- Simultaneously press the back "
"OK" buttons until "Enter code" appears
on the display.
