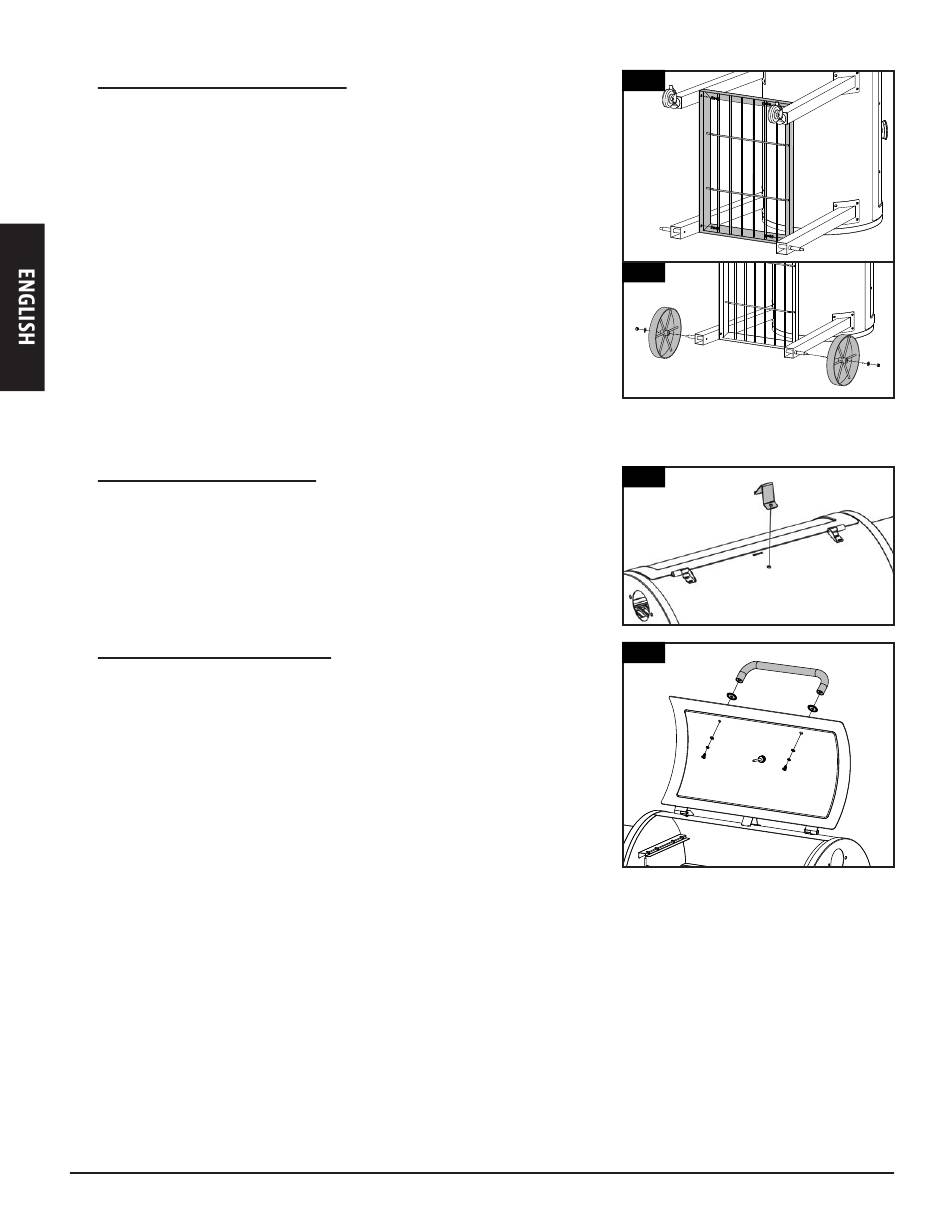

2. INSTALLING THE BOTTOM SHELF
Parts Required:
1
x
Bottom Panel (#20)
2
x
Wheel (#22)
4
x
Screw (#A)
4
x
Washer (#B)
4
x
Locking Washer (#C)
2
x
Nut (#D)
2
x
Washer (#E)
Installation:
•
From underneath, secure the bottom shelf to all each leg using a
screw, locking washer, and washer. Ensure the flat surface of the shelf
is facing up. Note illustration 2A.
•
After fitting the wheels into the axle, lock them with washer and nut.
Note illustration 2B.
•
Once the shelf is secure, carefully lift the grill into an upright position.
3. SECURING THE LID STOPPER
Parts Required:
1
x
Lid Stopper (#2)
Installation:
•
Secure the lid stopper onto the top of the main barrel using the pre-
installed screw on the top of the main barrel.
4. ASSEMBLING THE LID HANDLE
Parts Required:
1
x
Lid Handle (#15)
2
x
Lid Handle Bezel (#16)
Installation:
•
Remove the pre-installed screws from the lid handle. From inside the
barrel lid, insert one screw to protrude to the outside. Add a bezel on
the screw, then hand-tighten the screw (from the inside) into the lid
handle. Repeat same installation for other end of lid handle.
8
2A
20
B C
A
2B
D
E
22
3
2
4
15
16
22
E D
16
