INSTALLING THE HANDLE

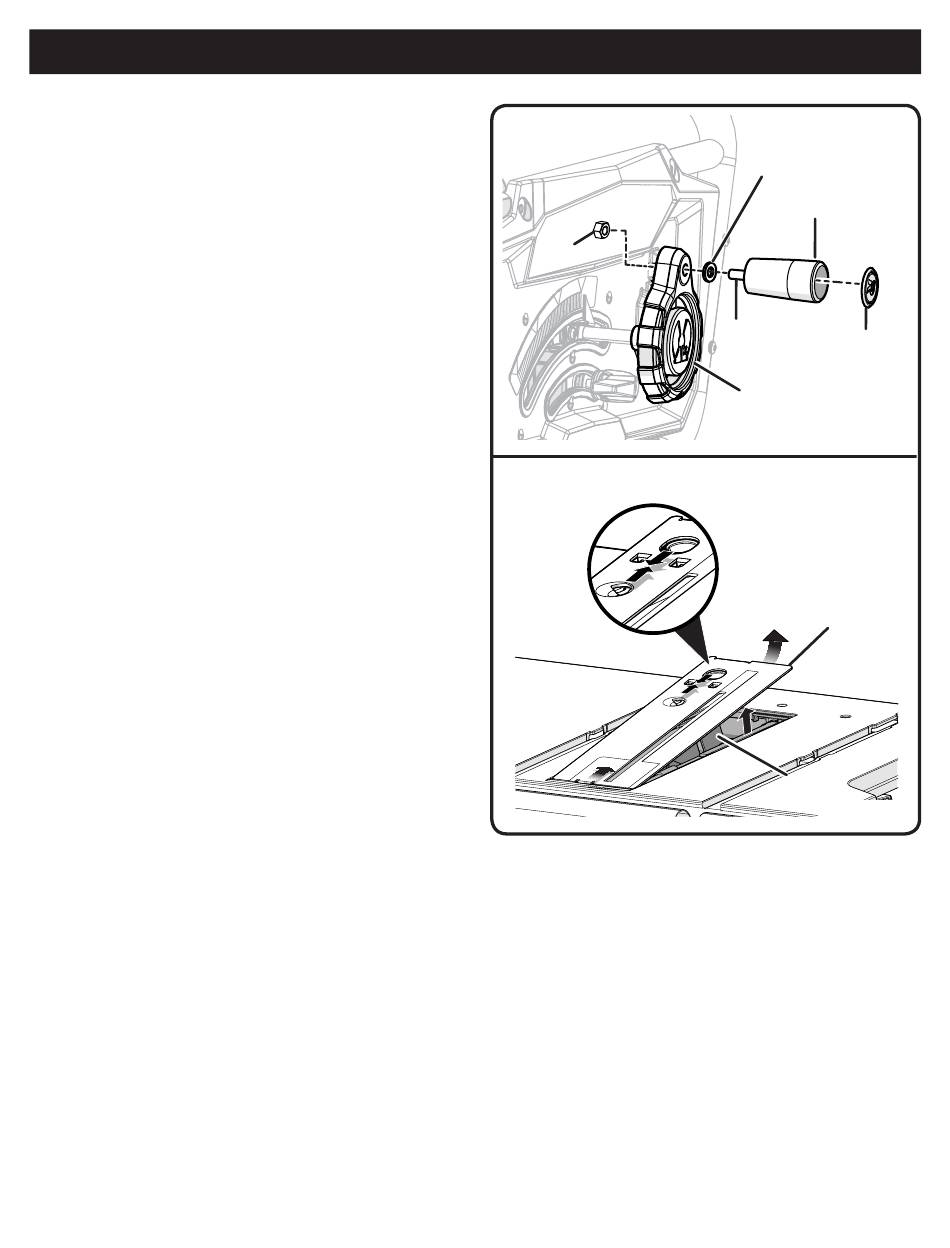

See Figure 10.
 Remove the hex nut from the bolt in the handle but do
not remove the bolt.
 Slide a washer onto the bolt.
 Place the nylon hex nut into the recessed hole on the
back of the height/bevel adjusting handwheel and hold
in place.
 Insert the handle and screw into the hole on the height/
bevel adjusting handwheel.
 Using a flathead screwdriver, turn the screw clockwise
and tighten in place.
 Cover the end of the handle with the cap.
REMOVING/REINSTALLING THE THROAT
PLATE
See Figure 11.
 Lower the blade by turning the height/bevel adjusting
handwheel counterclockwise.
 To remove the throat plate, locate the latch that holds the
plate in place. Place your thumb and index finger into the
holes and pull together until the latch releases. Lift and
pull the throat plate out toward the front of the saw.
 To reinstall the throat plate, first slip the tab into the slot
at the back of the saw. Place your fingers into the holes
and pull together. Push down to secure in place.
ASSEMBLY
NUT
16 - English
WASHER
HANDLE
BOLT
HANDLE
END CAP
HEIGHT/BEVEL
ADJUSTING
HANDWHEEL
Fig. 10
THROAT
PLATE
RIVING
KNIFE
Fig. 11
