CHARACTERISTICS
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower,
Filters
2 1 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
8a 1 Right Air Outlet Grill
8b 1 Left Air Outlet Grill
9 1 Reducer Flange ø 150-120 mm
10 1 Adapting ring ø 120-125 mm
14 1 Hood Body Air Outlet Extension Piece consisting of two
Half Shells
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection
Ref. Q.ty Installation Components
7.2.1 2 Upper Chimney Section Fixing Brackets
11 6 Wall Plugs
12a 6 Screws 4,2 x 44,4
12c 6 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
EN

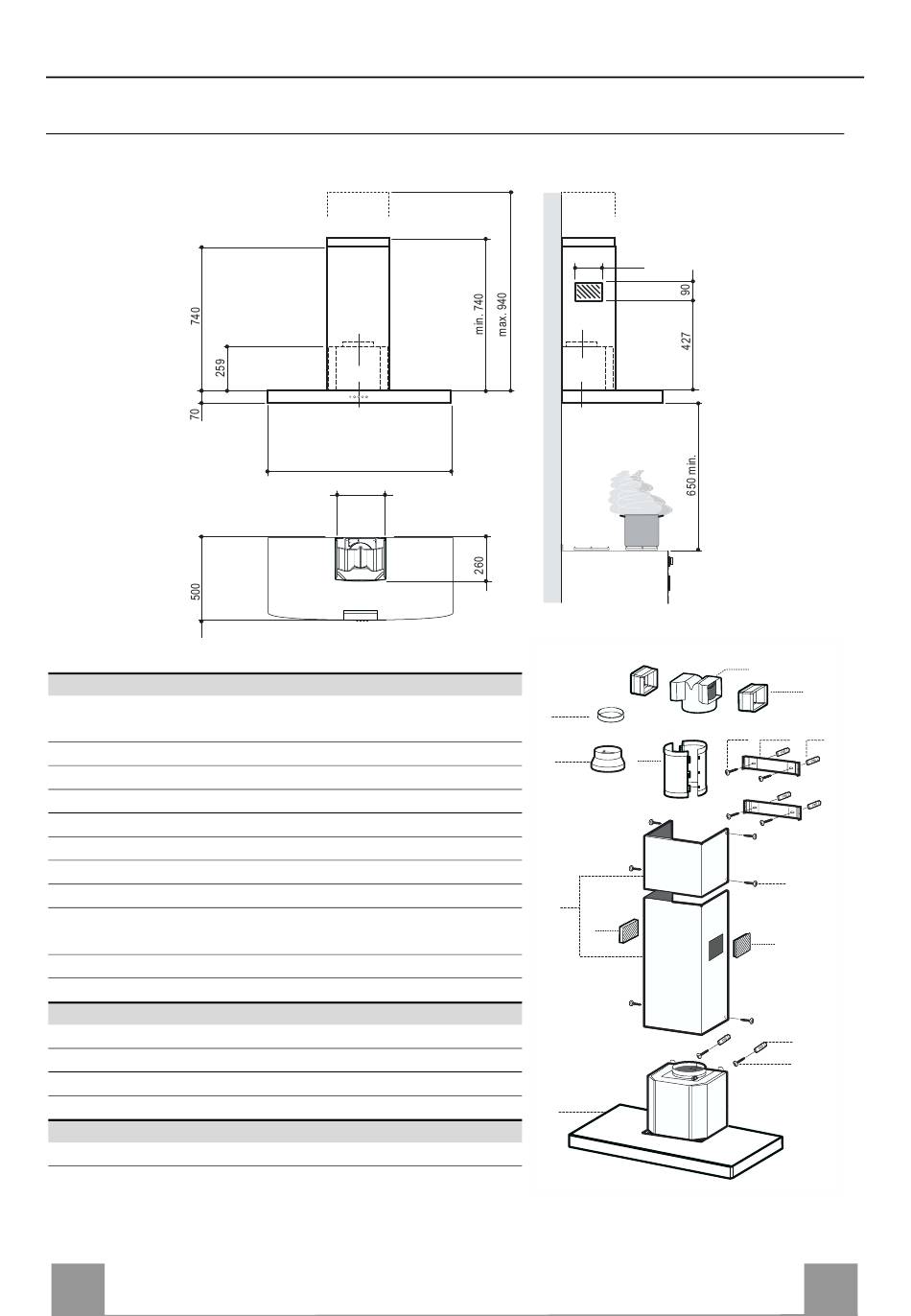

Dimensions
300
Components
132
10
14
9
2.1
2
8b
2.2
1
15
14.1
12a 7.2.1 11
12c
8a
11
12a
1
17
7
