INTRODUCTION
Thank you for choosing a De'Longhi product. Please take a few
moments to read the instructions to avoid risks or damage to the
appliance.
DESCRIPTION
Description of the appliance (see page 3 - A)
A1 Air outlet grille
A2 Control panel
A3 Handles
A4 Castors
A5 Filter
A6 Evaporator air intake grille
A7 Air exhaust hose housing
A8 Condenser air intake grille
A9 Power cable
A10 Drainage with 2 caps
A11 Remote control compartment
A12 Remote control
Description of the control panel (see page 3 - B)
B1 ON /OFF button
B2 MODE selection button
Air conditioning, dehumidifying, heating, fan
B3 Reduce temperature/programme mode time button
B4 Timer button
B5 Fan speed button (MAX/MED/MIN)
B6 Increase temperature/programme mode time button
B7 Air conditioning symbol
B8 Dehumidifying symbol
B9 Heating symbol
B10 Fan symbol
B11 Alarm symbol
B12 Fan speed indicator
B13 Temperature scale indicator
B14 Time indicator
B15 Set temperatures, room temperature and programmed
on/o time
B16 Timer symbol
B17 Room temperature symbol
B18 Set temperature symbol
Description of the accessories (see page 2 - C)
C1 Wall ange with cap
C2 Air exhaust hose
C3 Hose adaptor
C4 Accessory for wall mounting
C5 Window bracket with pins
C6 Additional window bracket
C7 Window outlet
C8 Remote control
C9 End of season dust cover
C10 End of season accessories bag
Electrical connection
Before plugging the appliance into the electrical receptacle,
check that:
• The outlet's power supply corresponds to the value indicat-
ed on the rating label on the back of the appliance;
• The outlet and electrical circuit are adequate for the appli-
ance;
• The outlet is a 3-hole grounded outlet
the case, you must choose another outlet. Failure to follow
these important safety instructions absolves the manufac-
turer of all liability.
If it becomes necessary, the power cable must be re-
placed by a quali ed professional only.
The instructions below will enable you to prepare your air condi-
tioner for operation as e ciently as possible. Before use, make
sure the air intake and outlet grilles are unobstructed.
USE
Note:
This appliance is provided with an auto-evaporation
feature for condensate removal during cooling and
dehumidi ng modes.
Air conditioning with installation
For optimal results set-up your appliance in this way:
1) Screw the hose adaptor C3 to the hose's end C2.

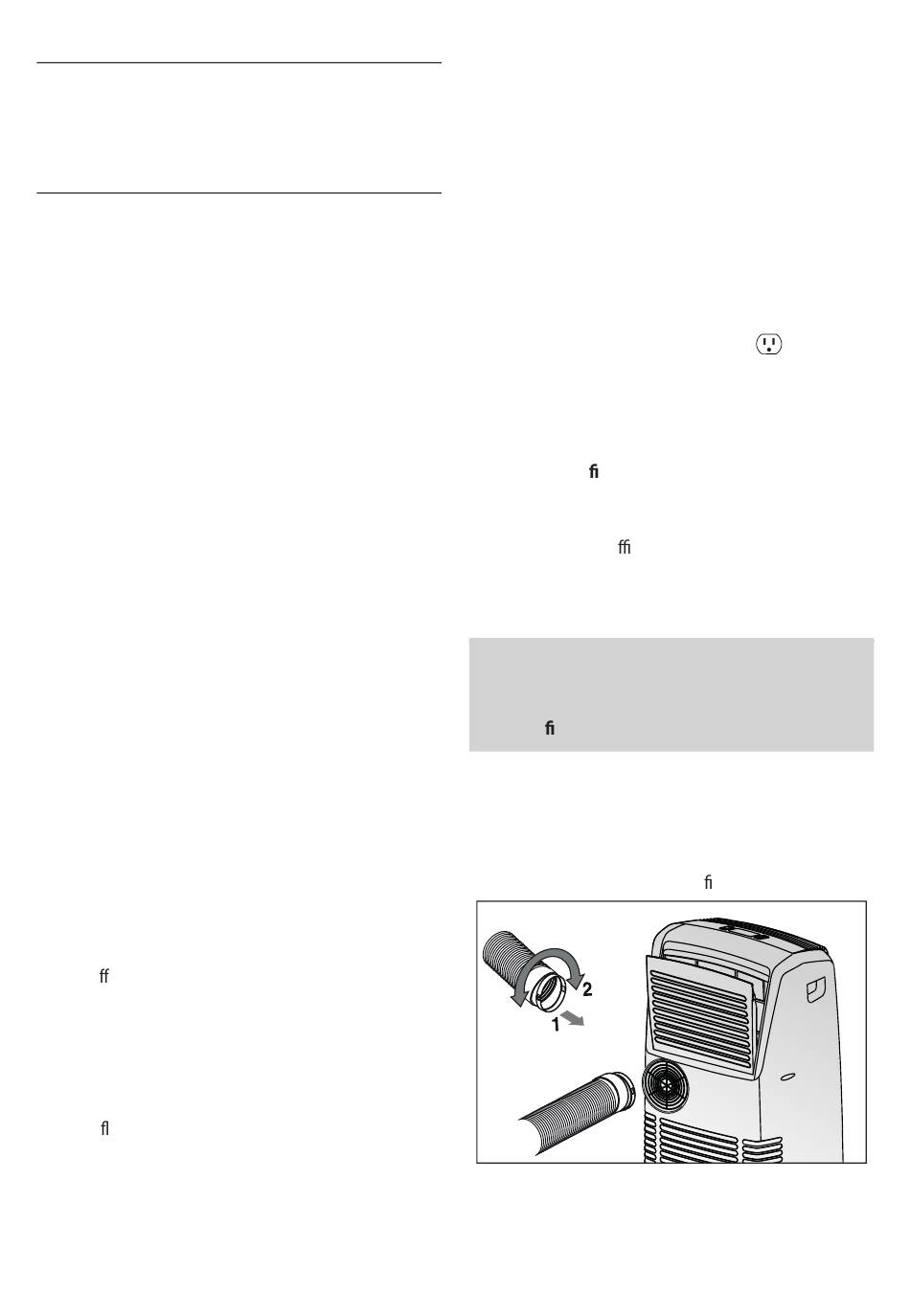

2) Fit the air exhaust hose in the housing at the back of the
appliance. Insert it as shown in gure 1.
3) Drill a hole (ø134mm / 5.27 in.) in an outside wall or
through a window pane.
5
. If this is not
