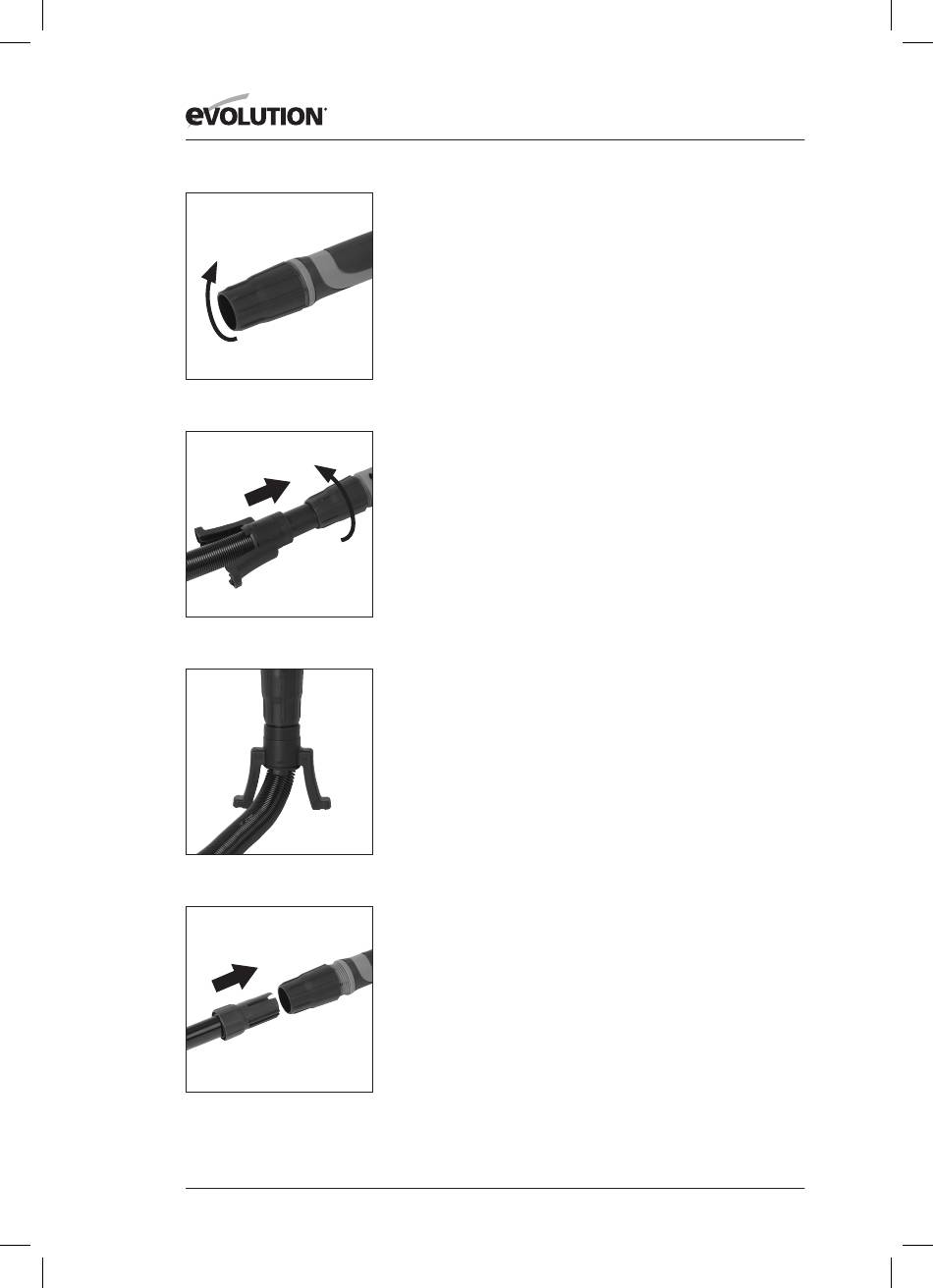

Fig. 1
Fig. 2
Fig. 3
Fig. 4

ASSEMBLY AND PREPARATION

SHORT REACH MODE
WARNING: Only conduct the following procedures with the
machine disconnected from the main power supply.
Fitting the Flexible Dust Extraction Hose.
• Loosen the sleeve nut. (Fig. 1)
• Insert the Flexible Dust Extraction Hose into the machines main
dust extraction tube/handle, and push it fully 'home' . (Fig. 2)
• Tighten the sleeve nut to fasten the Flexible Extraction Hose
into the machine.
Note: The integral protection stand allows the machine
(when not in use) to be stood upright against a wall or similar.
The Flexible Hose is protected from being crushed or kinked by
the stand. (Fig. 3)
LONG REACH MODE
• Loosen the sleeve nut. (Fig. 1)
• Remove the Flexible Dust Extraction Hose if fitted.
• Slide the Extension Tube into the machines main dust
extraction tube/handle.
Note: The Extension Tube which slides into the main dust
extraction/handle of the machine has a slightly oval cross-
section. To help insertion and correct location of the Extension
Tube, gently rotate it as you push it into place.
• Slide the Extension Tube into the main dust extraction/
handle until the 1.9m pictogram just disappears from view.
• Slide the Extension Tube Ferrule up and into the main
extraction tube/handle. (Fig. 4)
• Tighten the sleeve nut to secure the Extension Tube and
ferrule into their service positions. (Fig. 5)
• Fit the 'D' handle clamp around the Extension Tube.
Note: This clamp is hinged. By removing the pinch bolt (Fig. 6)
the clamp can be 'opened' and placed around the Extension Tube.
The clamp can then be 'closed' around the Extension Tube, the
pinch bolt replaced and tightened to secure the clamp in place.
• Fit the 'D' handle to the clamp using the two (2) socket
headed hex screws.
Note: We recommend that the 'D' Handle clamp is positioned
directly behind and is touching the Extension Tube ferrule. This
locates the 'D' handle in the most convenient position for the
majority of operators.
