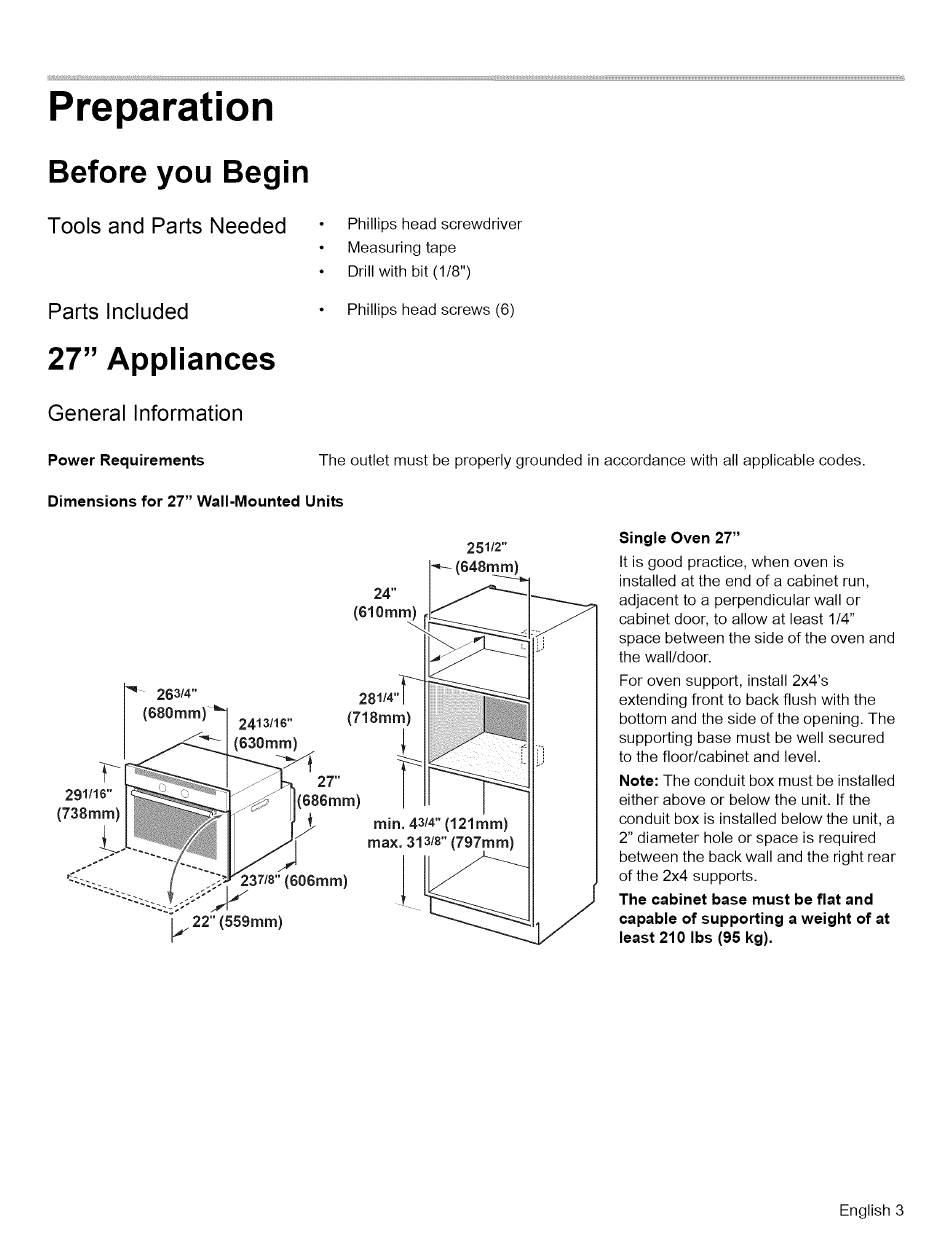

Preparation
Before you Begin
Tools and Parts Needed ° Phillips head screwdriver
* Measuring tape
Parts Included
27" Appliances
General Information
Power Requirements
Dimensions for 27" Wall-Mounted Units
(610mm)
~ 9639/4"
(680mm)
2413/16"
(630mm)
291/16"
(738mm)
oave'l
(718mm)
24"
I
min. 43/4" (121mm)
max. 313/8" (797mm)
—
Drill with bit (1/8")
Phillips head screws (6)
25 1/2"
~~ (648mm) _
i
Ts |
|
The outlet must be properly grounded in accordance with all applicable codes.
Single Oven 27"
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4"
space between the side of the oven and
the wall/door.
For oven support, install 2x4's
extending front to back flush with the
bottom and the side of the opening. The
supporting base must be well secured
to the floor/cabinet and level.
Note: The conduit box must be installed
either above or below the unit. If the
conduit box is installed below the unit, a
2" diameter hole or space is required
between the back wall and the right rear
of the 2x4 supports.
The cabinet base must be flat and
capable of supporting a weight of at
least 210 Ibs (95 kg).
English 3
