Exhaust Fan
MODEL: 686
Vertical Discharge Only.
SUITABLE FOR USE OVER TUB OR SHOWER ENCLOSURE
WHEN INSTALLED IN A GFCI PROTECTED BRANCH CIRCUIT.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE. ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you
have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel
and lock service panel to prevent power from being switched on
accidentally.
When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service
panel.
CAUTION:
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
INSTALLATION INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to
prevent back drafting. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. If this unit is to be installed over a tub or shower, it must be marked as
appropriate for the application.
F. NEVER place a switch where it can be reached from a tub or shower.
Installation in New Construction
Position fan housing against side of joist at desired location. Adjust
height of housing so that flange on bottom of housing will be flush with
the finished ceiling. Secure the housing to the joist using screws or
nails (not provided).
Run 7" round duct from the fan to the outside of the structure. Make
sure the backdraft damper is operating freely.
Remove desired wiring knockout from the wiring compartment and
mount the wiring compartment into the fan housing using the hardware
provided. Install a wiring connector in the knockout and run 120V
supply wiring from a wall switch to the fan location. Connect the green
or bare supply ground wire under the green ground screw in the wiring
compartment. Connect the white supply wire to the white wire and
black supply wire to the black wire of the motor receptacle on the
wiring compartment cover. Mount the wiring compartment cover using
the hardware provided.
Mount the motor blower assembly into the fan housing and plug the
motor into receptacle on wiring compartment cover.
Mount the grille after the finished ceiling is completed using plastic
thumb screw provided.
All manuals and user guides at all-guides.com
INSTALLATION INSTRUCTIONS
READ & SAVE THESE INSTRUCTIONS!
15
6
1
6
"
2
WIRING
JUNCTION
BOX
FLANGE
FLUSH WITH PLASTER LINE
THUMB NUT
Installation in Existing Construction
Note: installation in existing construction requires access to
the area above the ceiling.
Determine desired location for fan. Make sure that install-
ation will not interfere with existing wiring, plumbing, or duct-
work. Make sure ductwork and wiring can be run to the
location.
From the area above desired location, position fan housing
with mounting flanges against ceiling joist. Use bottom flange
of housing as a template to mark ceiling cutout. After cutting
out opening in ceiling, position fan housing so that the bottom
flange is flush with the bottom of the ceiling. Secure the
housing to the veiling joist using screws or nails (not
provided).
Complete the installation as describes above under new
construction.

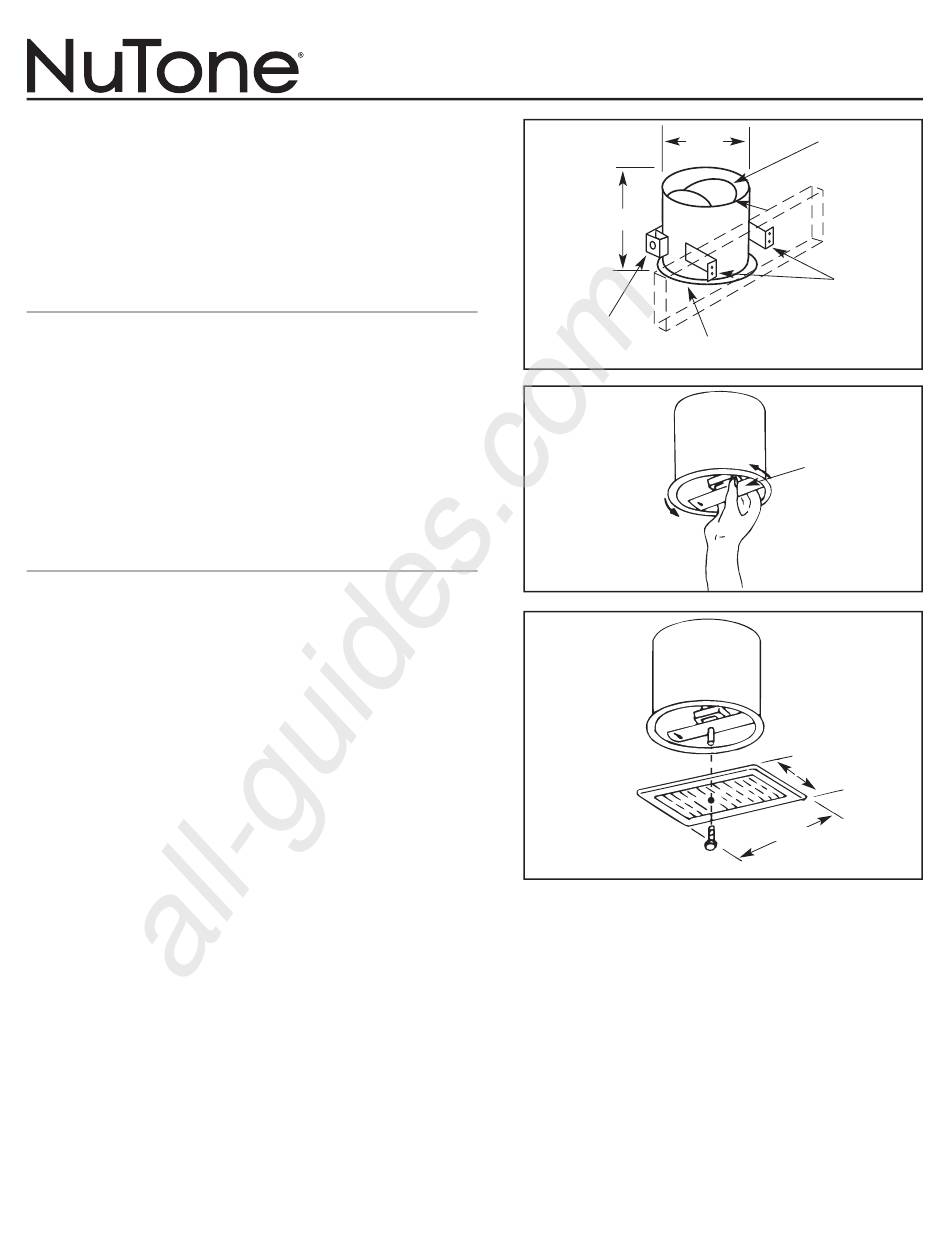

BACK
"
16
DRAFT
DAMPERS
NAIL
BRACKETS
FIGURE 1
TURN
COUNTER
CLOCKWISE
FIGURE 2
11
8
"
16
1
9
"
2
FIGURE 3
