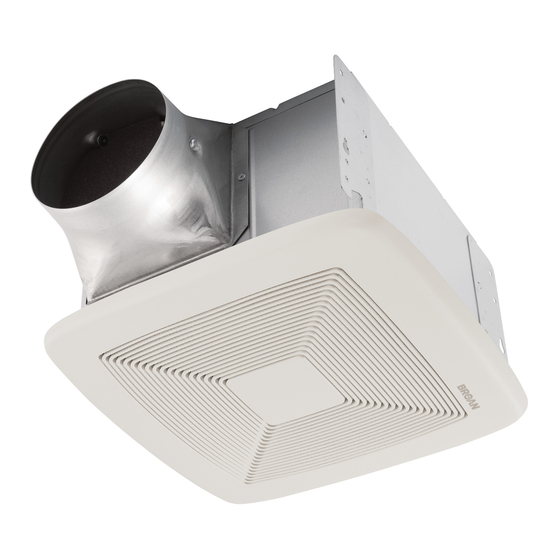

NuTone QuieTTest QT150 Instructions D'installation
NuTone QuieTTest QT150 Instructions D'installation

NuTone QuieTTest QT150 Instructions D'installation

Publicité

Les langues disponibles

Les langues disponibles

Liens rapides

QuieTT est
MODEL: QT150 (
Suitable for use with solid state speed controls.
WARNING: To reduce the risk of shock, disconnect power
before servicing.
Not for use in kitchens.
1
Uses standard 3
" x 10" ducting.
4
Plastic grille snaps in with torsion springs.
Designed for ceiling installation.
The ventilator consists of the housing, mounting brackets,
junction box, power unit/blower assembly, damper section
and grille assembly.
Fan must not be installed in a ceiling thermally insulated
to a value greater than R-40.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE. ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service
panel and lock service panel to prevent power from being
switched on accidentally.
When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service
panel.
CAUTION:
For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
INSTALLATION INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
A. Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to
prevent back draft. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration, and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application.
F. NEVER place a switch where it can be reached from a tub or
shower.
FOR BEST RESULTS
When installing the ventilator in a new construction site, install the
housing during the rough-in construction of the building. The power
unit and grille should be installed after the finished ceiling is in place.
To install the ventilator in an existing building, an accessible area
(attic or crawl space) is required from above the planned location.
Twin Blower Ventilator
®
For Ceiling Installation)
INSTALLATION INSTRUCTIONS
READ & SAVE THESE INSTRUCTIONS!
POWER
UNIT
HANGER
ROD
VERTICAL
DISCHARGE
1
3
" x 10"
4
DUCT
KNOCKOUTS
FAN
HOUSING
1
3
" x 10"
4
DAMPER
SECTION
HORIZONTAL
DISCHARGE
POWER
CONNECTOR
SLOTS
WING NUT,
HANGER ROD
FIGURE 1
ROOF CAP
WALL CAP
HORIZONTAL
DISCHARGE
FIGURE 2
VERTICAL DISCHARGE
1
3
" x 10" DAMPER SECTION
4
FIGURE 3

Publicité

loading

Sommaire des Matières pour NuTone QuieTTest QT150

  • Page 1 INSTALLATION INSTRUCTIONS READ & SAVE THESE INSTRUCTIONS! QuieTT est Twin Blower Ventilator ® MODEL: QT150 ( For Ceiling Installation) • Suitable for use with solid state speed controls. • WARNING: To reduce the risk of shock, disconnect power POWER before servicing. POWER CONNECTOR •...
  • Page 2 INSTALLATION IN A NEW CONSTRUCTION SITE VENTILATOR MOUNTING HOUSING BRACKET PREPARATION CAUTION: When handling the power unit do not reach in the end openings and bend the blower wheels. Refer to Figure 1. 1. Remove power unit from housing assembly. (a) If necessary, unplug power plug from mating connector.
  • Page 3 GRILLE INSTALLATION MOUNTING 1. Refer to Figure 8. Compress grille mounting springs BRACKET and insert into slots in the housing. 2. Press grille firmly into place against ceiling. HOOK HANGER RODS FROM INSIDE MAINTENANCE TO OUTSIDE • WARNING: Risk of fire or electrical shock; disconnect the power before cleaning or performing any maintenance on the ventilator.
  • Page 4 WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one year period, NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS OR TUBES, FILTERS, DUCT, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING.
  • Page 5 INSTRUCTIONS D'INSTALLATION LIRE ET CONSERVER CES INSTRUCTIONS Ventilateur QuieTT est à rotor double ® MODELE: QT150C ( Pour plafond) • Convient pour utilisation avec commande de vitesse à semi-conducteurs. • ATTENTION: Pour réduire le risque de décharge électrique, couper le courant avant tout entretien.
  • Page 6 INSTALLATION DANS UNE CONSTRUCTION NEUVE BOITIER DU PATTE DE VENTILATEUR FIXATION PREPARATION ATTENTION: Lors de la manipulation du bloc-moteur, ne pas le soulever par les côtés pour ne pas plier les aubes. Voir Figure 1. 1. Enlever le bloc-moteur du boîtier. (a) Au besoin, débrancher le raccord du boîtier de raccordement.
  • Page 7 INSTALLATION DE LA GRILLE SUPPORT DE 1. Voir Figure 8. Comprimer les ressorts de montage de la grille MONTAGE et les insérer dans les fentes du boîtier. 2. Appuyer fermement sur la grille pour qu'elle vienne contre ACCROCHER LA TIGE DE le plafond.
  • Page 8 MARCHANDIBILITÉ OU D'ADAPTATION À UN USAGE PARTICULIER. Pendant cette période d’un an, NuTone procédera au remplacement ou à la réparation sans aucuns frais, mais à sa propre discrétion, de tout produit ou pièce jugé défectueux dans le cadre d'une utilisation normale. CETTE GARANTIE NE VISE PAS LES DISPOSITIFS D'AMORÇAGE NI LES TUBES DES LUMINAIRES FLUORESCENTS. Cette garantie ne couvre pas (a) l'entretien et le service courants ni (b) les produits et les pièces ayant fait l'objet d'un usage abusif, de négligence, d'un accident, d'un entretien ou d'une réparation non...
