GE 2-9180 Guide De L'utilisateur

Big Button Telephone
User's Guide
We bring good things to life.
FOLD
I I
MPORTANT NFORMATION
NOTICE: The Industry Canada label identifies certified
equipment. This certification means that the equipment meets
certain telecommunications network protective, operational
and safety requirements. The Industry Canada does not
guarantee the equipment will operate to the user's satisfaction.
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. The
customer should be aware that compliance with the above
conditions may not prevent degradation of service in some
situations.
Repairs to certified equipment should be made by an
authorized Canadian maintenance facility designated by the
supplier. Any repairs or alterations made by the user to this
equipment, or equipment malfunctions, may give the telecom-
munications company cause to request the user to disconnect
the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines and
internal metallic water pipe systems, if present, are connected
together. This precaution may be particularly important in rural
areas.
CAUTION: Users should not attempt to make such connections
themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.
NOTES: This equipment may not be used on coin service
provided by the telephone company.
Party lines are subject to telephone company tariffs and,
therefore, you may not be able to use your own telephone
equipment if you are on a party line. Check with your local
telephone company.
H A C
EARING ID OMPATIBILITY
This telephone system meets FCC/Industry Canada standards
for Hearing Aid Compatibility.
INDUSTRY CANADA NUMBER IS LOCATED ON THE CABINET BOTTOM
REN NUMBER IS LOCATED ON THE CABINET BOTTOM
2-9180
© 1998 Thomson Consumer Electronics, Inc.
15401280 (Rev. 1 E/F)
Trademark(s) ® Registered
98-52
Printed in China
2-9180 (Folded size 80 x 158 mm)
All manuals and user guides at all-guides.com
FOLD
I

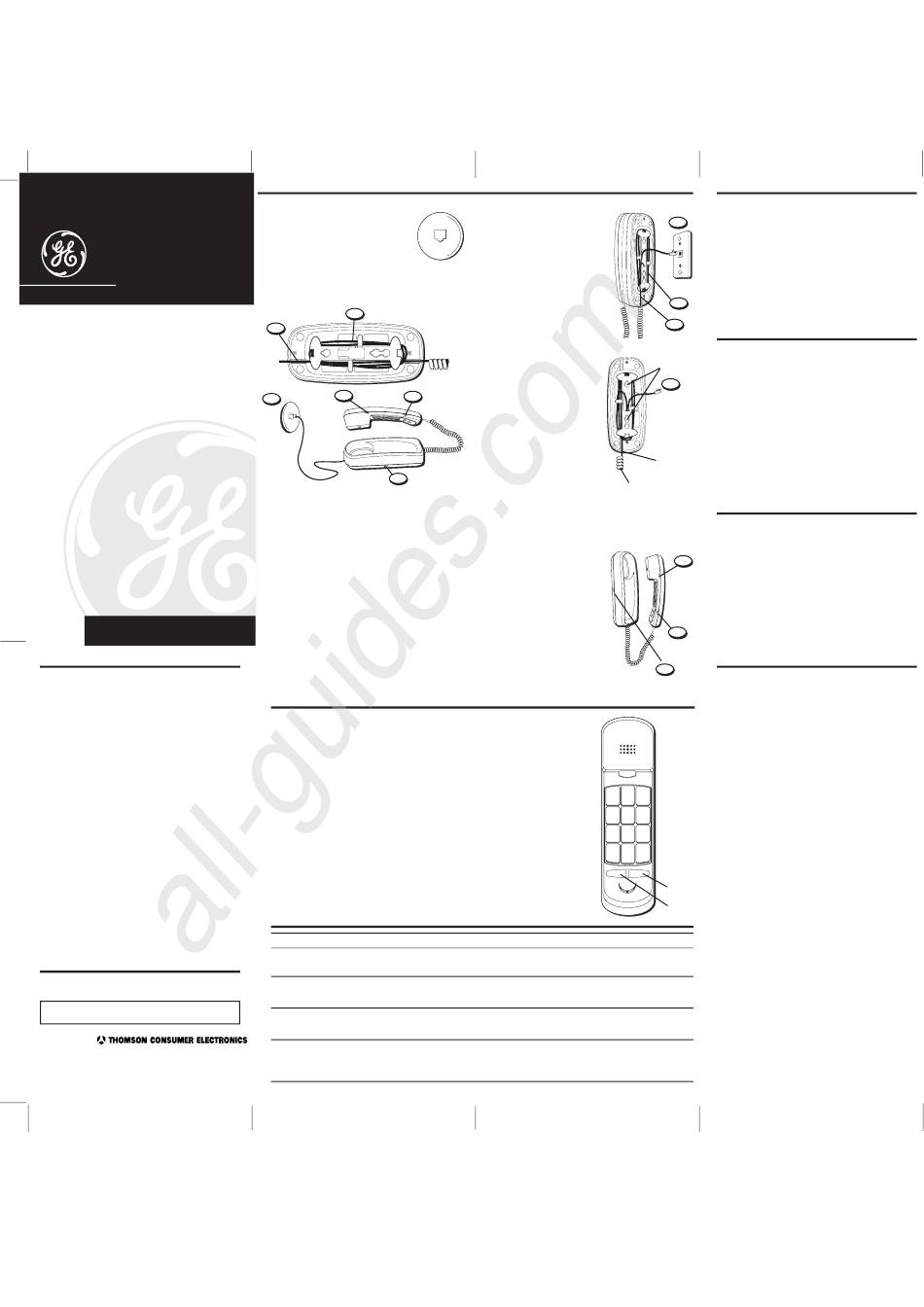

NSTALLATION
M J R
2-9180
ODULAR ACK EQUIREMENTS
You need an RJ11 (CA11A) type modular
jack, which is the most common type of
phone jack and might look like the one
pictured here. If you don't have a modular
jack, call your local phone company to
find out how to get one installed.
D
ESKTOP OR TABLETOP INSTALLATION
2
1
4
3
1. Run the telephone line cord through the guides on
the bottom of the phone.
2. Wrap the excess line cord around the cord wrap on
the bottom of the phone.
3. Connect the telephone line cord to a modular
telephone jack.
4. Set the VOLUME switch (on the side of the handset)
to the desired listening volume.
5. Set PULSE/TONE switch (on the side of the handset)
to TONE for touch-tone service, or set it to PULSE for
rotary service. If you don't know which type of
service you have, check with the phone company.
6. Slide the RINGER switch (on the side of the base) to
LO or HI.
U
SING THE TELEPHONE FEATURES
A
UTOMATIC REDIAL
To automatically redial the last number you called:
1. Pick up the handset to get a dial tone.
2. Press REDIAL.
F
LASH
Press the FLASH button instead of the hook switch to activate custom calling services
such as call waiting or call transfer. Custom calling services are provided by the phone
company.
T T
EMPORARY ONE
If you have pulse service, you can temporarily change from pulse to tone service in order
to access services that require tone dialing (such as getting information from a local bank).
After dialing the telephone number, press and release the tone button, marked with an
asterisk (*). When you hang up, your phone returns to pulse service.
T
ROUBLESHOOTING
Problem
No dial tone.
Won't dial out
Phone doesn't ring
Feedback when
dialing in PULSE mode.
Can't be heard by
other party
15401280 (Rev. 0 E/F) • Sht 1 of 2 (Prints 2 sides with 4 Folds)
FOLD
W M
ALL OUNT
1a. If the modular phone jack is in
the base plate on the wall
where you're going to mount
your phone, plug the
telephone line cord into the
jack; run the telephone line
cord through the guides on
the bottom of the phone;
wrap the excess line cord
around the cord wrap on the
bottom of the phone; mount
the phone on the posts; and
set the RINGER switch and
PULSE/TONE switch
(described in detail below).
1b. If the modular phone jack is
near the floor and you want
5
to mount the phone on the
wall, plug the telephone line
cord into the modular jack.
2. Run the telephone line cord
through the guides on the
bottom of the phone.
3. Wrap the excess line cord
around the cord wrap on the
6
bottom of the phone.
4. Slip the mounting holes on
the bottom of the telephone
over the wall plate posts and
slide the base down until the
phone is firmly in place. (Wall
plate is not included.)
5. Set the VOLUME switch (on
the side of the handset) to the
desired listening volume.
6. Set PULSE/TONE switch (on
the side of the handset) to
TONE for touch-tone service,
or set it to PULSE for rotary
service. If you don't know
which type of service you have,
check with the phone company.
7. Slide the RINGER switch (on
the side of base) to LO or HI.
T
IPS
Solution
• Check hook switch to make sure it pops up.
• Make sure PULSE/TONE is set to correct position.
• Make sure RINGER switch is set to LO or HI.
• You might have too many phones on one line.
• This is normal. Power fluctuates with phone outpulsing.
• Make sure phone cord is securely plugged in.
• Make sure other phones aren't off the hook at the same time you're using the phone. It is
normal for the volume to drop when additional phones are used at the same time.
FOLD
T
ELEPHONE
Should your equipment cause trouble on your line which may
I
NSTALLATION
harm the telephone network, the telephone company, where
practicable, may notify you that temporary discontinuance of
1a
service may be required. Where prior notice is not practicable
and the circumstances warrant such action, the telephone
company may temporarily discontinue service immediately.
The telephone company may make changes in its communications
facilities, equipment, operations or procedures where such action
is required in the operation of its business. If these changes are
expected to affect the use or performance of your telephone
equipment, the telephone company will likely give you adequate
notice to allow you to maintain uninterrupted service.
3
Notice must be given to the telephone company upon termina-
tion of your telephone from your line.
2
I
NTERFERENCE
This equipment generates and uses radio frequency energy
Mounting
which may interfere with residential radio and television
holes
reception if not properly installed and used in accordance with
instructions contained in this manual. Reasonable protection
against such interference is ensured, although there is no
4
guarantee this will not occur in a given installation. If interfer-
ence is suspected and verified by switching this equipment on
and off, the user is encouraged to try to correct the interference
by one or more of the following measures: Reorient the radio/
television receiver's antenna, relocate the equipment with
respect to the receiver, plug the equipment and receiver into
separate circuit outlets. The user may also wish to consult a
qualified radio/television technician for additional suggestions.
This equipment has been fully tested and complies with all limits
Telephone
for Class B computing devices pursuant to part 15 FCC Rules and
line cord
Regulations. This apparatus does not exceed the class B limits
Coiled
for RF noise emissions specified in the RFI regulations of the
handset Industry Canada.
cord
REN N
On the bottom of this equipment is a label indicating, among
other information, the FCC Registration number and Ringer
Equivalence Number (REN) for the equipment. You must, upon
request, provide this information to your telephone company.
The REN is useful in determining the number of devices you
5
may connect to your telephone line and still have all of these
devices ring when your telephone number is called. In most
(but not all) areas, the sum of the RENs of all devices
connected to one line should not exceed 5. To be certain of the
number of devices you may connect to your line as determined
by the REN, you should contact your local telephone company.
6
S
ERVICE
7
Thomson Consumer Electronics Canada, Inc. warrants to the
purchaser or gift recipient that if any manufacturing defect
becomes apparent in this product within
1 year from the original date of purchase, it will be replaced
free of charge, including return transportation.
This warranty does not include damage to the product resulting
from accidents, misuse or leaking batteries.
Should your product not perform properly during the warranty
period, either:
1. Return it to the selling dealer with proof of purchase for
replacement,
BIG
EASY DIAL BUTTON 2. Remove the batteries (where applicable), and pack
product complete with accessories in the original carton
ABC DEF
1 2 3
(or equivalent).
GHI JKL MNO — Mail prepaid (with proof of purchase) and insured to:
4 5 6
PQRS TUV WXYZ
7 8 9
TONE OPER
* 0 #
The provisions of this written warranty are in addition to and
not a modification of or subtraction from the statutory
FLASH REDIAL
warranties and other rights and remedies contained in any
REDIAL
applicable legislation, and to the extent that any such
button
provisions purport to disclaim, exclude or limit any such
statutory warranties and other rights and remedies, such
FLASH
provisions shall be deemed to be amended to the extent
button
necessary to comply therewith.
If you are unable to find a qualified servicer for out of warranty
service, you may write to:
Attach your sales receipt to this booklet for future reference.
This information is required if service is needed during the
warranty period.
PURCHASE DATE ______________________________
NAME OF STORE ______________________________
N I
ETWORK NFORMATION
I
NFORMATION
UMBER
OR
Thomson Consumer Electronics Canada, Inc.
Distribution Centre
7400 A Bramalea Road
Mississauga, Ontario L5S 1X1
Thomson Consumer Electronics Canada, Inc.
P.O. Box 0944
Indianapolis, Indiana, U.S.A., 46206-0944
