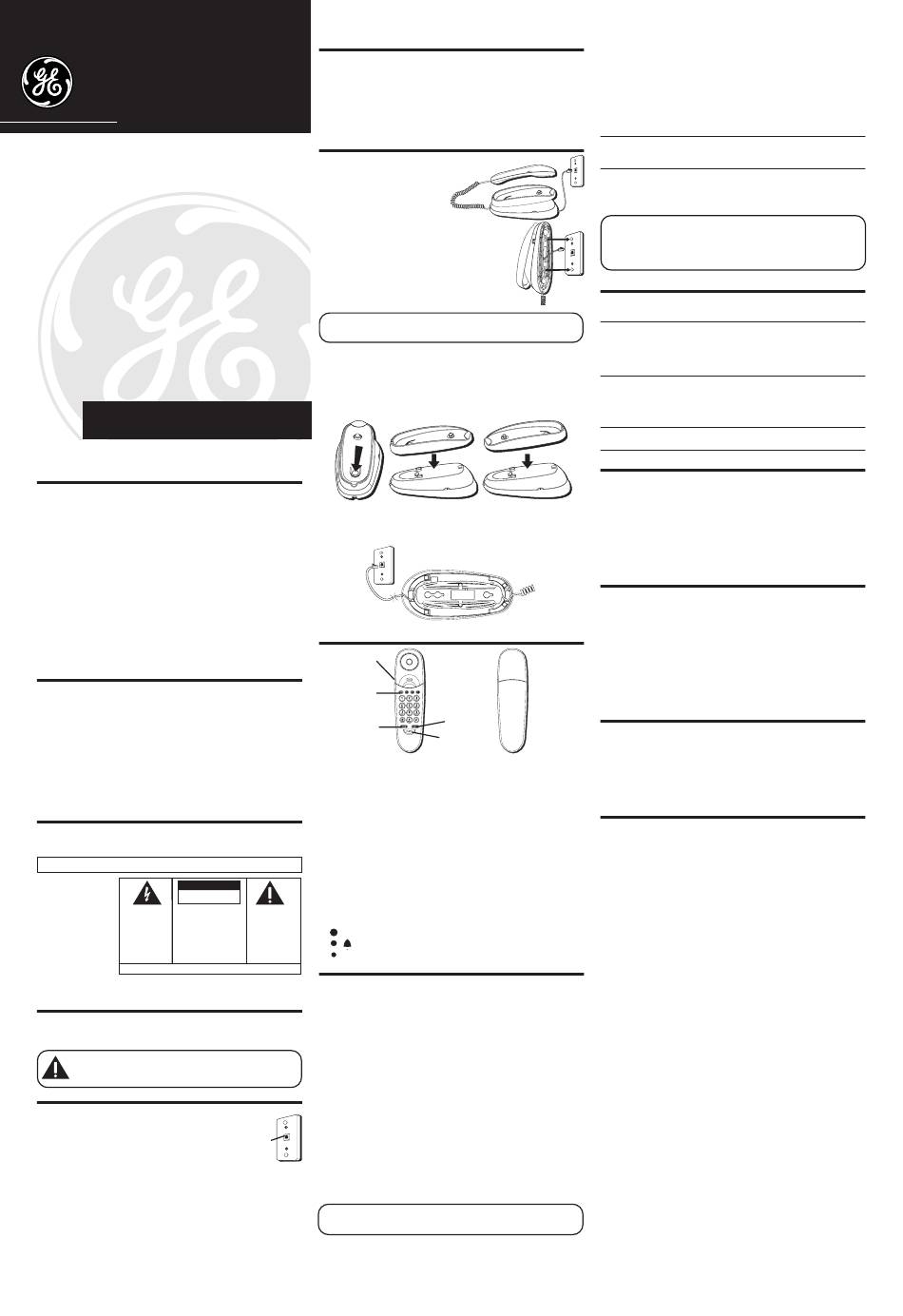

Trimline Phone
User's Guide
We bring good things to life.
I
I
MPORTANT
NFORMATION
NOTICE: This product meets the applicable Industry Canada technical specifications.
The equipment must be installed using an acceptable method of connection. The
customer should be aware that compliance with the above conditions may not
prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian
maintenance facility designated by the supplier. Any repairs or alterations made by
the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.
Users should ensure for their own protection that the electrical ground connections
of the power utility, telephone lines and internal metallic water pipe systems, if
present, are connected together. This precaution may be particularly important in
rural areas.
CAUTION: Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or electrician, as
appropriate.
NOTES: This equipment may not be used on coin service provided by the telephone
company.
I
I
NTERFERENCE
NFORMATION
This equipment generates and uses radio frequency energy which may interfere with
residential radio and television reception if not properly installed and used in
accordance with instructions contained in this manual. Reasonable protection
against such interference is ensured, although there is no guarantee this will not
occur in a given installation. If interference is suspected and verified by switching
this equipment on and off, the user is encouraged to try to correct the interference by
one or more of the following measures: Reorient the radio/television receiver's
antenna, relocate the equipment with respect to the receiver, plug the equipment and
receiver into separate circuit outlets. The user may also wish to consult a qualified
radio/television technician for additional suggestions. This equipment has been fully
tested and complies with all limits for Class B computing devices pursuant to part 15
FCC Rules and Regulations. This apparatus does not exceed the class B limits for RF
noise emissions specified in the RFI regulations of the Industry Canada.
H
A
C
(HAC)
EARING
ID
OMPATIBILITY
This telephone system meets FCC/Industry Canada standards for Hearing
Aid Compatibility.
REN NUMBER IS LOCATED ON THE CABINET BOTTOM
CAUTION:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
FLASH AND ARROW
WARNING: TO
HEAD WITHIN THE
NOT REMOVE COVER (OR
PREVENT FIRE OR
TRIANGLE IS A
BACK). NO USER
WARNING SIGN
SERVICEABLE PARTS INSIDE.
ELECTRICAL SHOCK
REFER SERVICING TO
ALERTING YOU OF
HAZARD, DO NOT
"DANGEROUS
QUALIFIED SERVICE
VOLTAGE" INSIDE
PERSONNEL.
EXPOSE THIS
THE PRODUCT.
PRODUCT TO RAIN
SEE MARKING ON BOTTOM / BACK OF PRODUCT
OR MOISTURE.
I
NTRODUCTION
Your telephone is designed to give you flexibility in use and high quality performance.
To get the most from your new telephone, we suggest that you take a few minutes right
now to read through this instruction manual.
CAUTION: When using telephone equipment, there are basic
safety instructions that should always be followed. Refer to the
IMPORTANT SAFETY INSTRUCTIONS provided with this
product and save them for future reference.
B
Y
B
EFORE
OU
EGIN
T
J
R
ELEPHONE
ACK
EQUIREMENTS
To use this phone, you need an RJ11C (CA11A) type
modular telephone jack, which might look like the one
pictured here, installed in your home. If you don't have a
modular jack, call your local phone company to find out
how to get one installed.
Model 29240
ATLINKS Communications Canada Inc.
55927870 (Rev. 1 E/F)
© 2004 ATLINKS Communications Canada, Inc.
04-30
Printed in China
I
I
29240
MPORTANT
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
• Never touch uninsulated telephone wires or terminals, unless the telephone line
has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.
• Temporarily disconnect any equipment connected to the phone such as faxes,
other phones, or modems.
I
NSTALLING THE
Your telephone should be placed on a
level surface such as a desk or table
top, or you can mount it on a wall. A
desktop/wall mounting pedestal is
built into the base of the phone.
1. Slide the RINGER volume
switch (on the handset) to the
desired volume.
2. Set the receiver volume switch (on the handset) to the
desired listening volume.
3. Plug the telephone line cord into a modular wall
phone jack.
W
M
I
ALL
OUNT
Your telephone may also be mounted on a wall plate
(not included).
NOTE: To prevent the handset from falling out of the cradle while the
phone is hanging on the wall, you must reverse the handset hook
(located on the base).
1. Rotate the handset hook tab to an upright position.
2. Push the button on the cradle and pull out the cradle bracket.
3. Rotate bracket 180 degree and put it back on the base.
4. Plug the telephone line cord into a modular wall phone jack.
5. Slip the mounting holes on the base over the wall plate posts and firmly slide the
unit down into place (wall plate not included).
W
RAPPING THE
In desktop or wall mount mode, you may want to wrap the excess telephone line cord
around the mounting bracket on the bottom of the base.
T
O
ELEPHONE
Volume
switch
MEM
buttons
STORE
button
R
EDIAL
This unit redials up to 32 digits. To automatically redial the last number you called:
1. Pick up the handset and wait for a dial tone.
2. Press the redial button.
F
LASH
Press the flash button instead of the hook switch to activate custom calling services
such as call waiting or call transfer. Custom calling services are provided by the
phone company.
R
V
ECEIVER
OLUME
You may control the ringer volume level with the switch located on the side of
the handset.
R
V
INGER
OLUME
You may control the ringer volume level with the switch located on the side of the
THE EXCLAMATION
POINT WITHIN THE
base and handset.
TRIANGLE IS A
WARNING SIGN
= ringer tone will be loud
2
ALERTING YOU OF
IMPORTANT
= ringer tone will be low
1
INSTRUCTIONS
ACCOMPANYING
= telephone will not ring.
0
THE PRODUCT.
M
EMORY
Each memory button is capable of storing phone numbers up to 16 digits.
S
N
TORING A
UMBER IN
1. Pick up the handset, and press the store button.
2. Dial the number to be stored (up to 16 digits).
3. Press store again.
4. Press a memory location button 0-9, A, B, C, and hang up the handset.
I
P
NSERTING A
AUSE IN THE
Use the redial button to add pauses to a dialing sequence, for example after you dial
9 for an outside line. A pause is approximately 4 seconds long and counts as one of
the 16 digits that can be stored in the sequence.
C
S
HANGING A
TORED
Wall plate
To change a stored number, you just replace it with a different number using the
procedure for storing a number.
Modular
telephone
D
S
IALING A
TORED
line jack
1. Pick up the handset, and wait for a dial tone.
2. For numbers stored in memory locations 0-9, press the MEM button first, then
press the memory location 0-9. The number dials automatically.
For numbers stored in one touch memory locations (A, B, C), press the memory
location (A, B, or C), and the number dials automatically.
NOTE: Stored numbers are saved using the power from the telephone
line cord. If you disconnect the line cord from the modular phone (wall)
jack, the numbers stored in memory are lost.
Trademark(s) ® Registered
Marque(s) ® déposée(s)
I
NSTALLATION
NFORMATION
P
HONE
NSTALLATION
T
L
C
ELEPHONE
INE
ORD
PERATION
REDIAL
button
FLASH
button
M
EMORY
D
S
IALING
EQUENCE
N
UMBER
N
UMBER
D
S
N
M
ELETING A
TORED
UMBER FROM
1. Press the store button.
2. Press the redial button.
3. Press the store button again.
4. Press the memory location where the number is to be deleted.
C
D
HAIN
IALING
Link several memory locations in sequence by following this example:
Number is For
Long distance access number
Authorization code
Frequently called long distance number
1. Pick up the handset to get a dial tone.
2. Press the mem button, and then press 7.
3. When you hear the access tone, press the mem button, and then press 8.
4. At the next access tone, press the mem button, and then 9.
IMPORTANT: If you make test calls to emergency numbers, remain on
the line and explain the reason for the call to the dispatcher. Also, make
these calls in off-peak hours, such as early morning or late evening.
NOTE: If you make a mistake while storing a number, hang up and
repeat the storing procedure.
T
T
ROUBLESHOOTING
IPS
No dial tone:
• Press and release the hook switch. Check the hook switch: Does it fully extend
when the handset is lifted from the cradle?
Phone doesn't ring:
• Make sure RINGER switch (located on the handset) is set to loud or low.
• You may have too many extension phones on your line. Unplug some
extension phones.
• Check for a dial tone. If there is no dial tone see solutions for "No dial tone."
Other party cannot hear you:
• Make sure phone cord is securely plugged in.
• Make sure extension phones are on the hook at the same time you're using the
phone. It is normal for the volume to drop when additional extension phones are
used at the same time.
Phone "howls" when handset is placed near base and handset volume level is too high:
• This is normal feedback due to handset volume level being set to maximum.
G
P
C
ENERAL
RODUCT
ARE
To keep your telephone working and looking good, follow these guidelines:
• Avoid putting the phone near heating appliances and devices that generate
electrical noise (for example, motors or fluorescent lamps).
• DO NOT expose to direct sunlight or moisture.
• Avoid dropping and other rough treatment to the phone.
• Clean with a soft cloth.
• Never use a strong cleaning agent or abrasive powder because this will damage
the finish.
• Retain the original packaging in case you need to ship the phone at a later date.
T
N
I
ELEPHONE
ETWORK
NFORMATION
Should your equipment cause trouble on your line which may harm the telephone
network, the telephone company, where practicable, may notify you that temporary
discontinuance of service may be required. Where prior notice is not practicable and
the circumstances warrant such action, the telephone company may temporarily
discontinue service immediately.
The telephone company may make changes in its communications facilities,
equipment, operations or procedures where such action is required in the operation
of its business. If these changes are expected to affect the use or performance of
your telephone equipment, the telephone company will likely give you adequate
notice to allow you to maintain uninterrupted service.
Notice must be given to the telephone company upon termination of your telephone
from your line.
REN N
UMBER
On the bottom of this equipment is a label indicating, among other information, the
Ringer Equivalence Number (REN) for the equipment.
The REN is useful in determining the number of devices you may connect to your
telephone line and still have all of these devices ring when your telephone number is
called. In most (but not all) areas, the sum of the RENs of all devices connected to
one line should not exceed 5. To be certain of the number of devices you may
connect to your line as determined by the REN, you should contact your local
telephone company.
S
ERVICE
ATLINKS Communications Canada, Inc., warrants to the purchaser or gift recipient
that if any manufacturing defect becomes apparent in this product within 1 year from
the original date of purchase, it will be replaced free of charge, including return
transportation.
This warranty does not include damage to the product resulting from accidents,
misuse or leaking batteries.
Should your product not perform properly during the warranty period, either:
1. Return it to the selling dealer with proof of purchase for replacement,
OR
2. Remove the batteries (where applicable), and pack product complete with
accessories in the original carton (or equivalent).
— Mail prepaid (with proof of purchase) and insured to:
ATLINKS Communications Canada, Inc.
c/o Thomson multimedia Ltd.
6200 Edwards Boulevard
Mississauga, Ontario
Canada L5T 2V7
The provisions of this written warranty are in addition to and not a modification of or
subtraction from the statutory warranties and other rights and remedies contained in
any applicable legislation, and to the extent that any such provisions purport to
disclaim, exclude or limit any such statutory warranties and other rights and
remedies, such provisions shall be deemed to be amended to the extent necessary to
comply therewith.
If you are unable to find a qualified servicer for out of warranty service, you may
write to:
ATLINKS Communications Canada, Inc.
c/o Thomson Inc.
P.O. Box 0944
Indianapolis, Indiana, U.S.A., 46206-0944
Attach your sales receipt to this booklet for future reference. This information is
required if service is needed during the warranty period.
PURCHASE DATE
_____________________________________________________________________
NAME OF STORE
_____________________________________________________________________
EMORY
Memory Location
7
8
9

Publicité

loading

Sommaire des Matières pour GE 29240

  • Page 1 NOTE: Stored numbers are saved using the power from the telephone line cord. If you disconnect the line cord from the modular phone (wall) jack, the numbers stored in memory are lost. Model 29240 ATLINKS Communications Canada Inc. 55927870 (Rev. 1 E/F) ©...
  • Page 2 ’ UPPRESSION D UMERO EMORISE Modèl 29240 1. Appuyez sur le bouton Store. ATLINKS Communications Canada Inc. 55927870 (Rév. 1 E/F) 2. Appuyez sur le bouton redial. © 2004 ATLINKS Communications Canada Inc.
