Getting Started

Before using this monitor, please make sure that the following items are
included in your package: Multiscan 100sf/200sf monitor (1), power
cord (1), HD15 (Female) - HD15 (Male without the No.9 pin) adapter (1),
warranty card (1) and this operating instruction manual (1).
This monitor will sync with any IBM or compatible system equipped
with VGA or greater graphics capability. Although this monitor will
sync to other platforms running at horizontal frequencies between 30
and 70 kHz (Multiscan 100sf), 30 and 80kHz (Multiscan 200sf), including
Macintosh and Power Macintosh system, a cable adapter is required.
Please consult your dealer for advice on which adapter is suitable for
your needs.

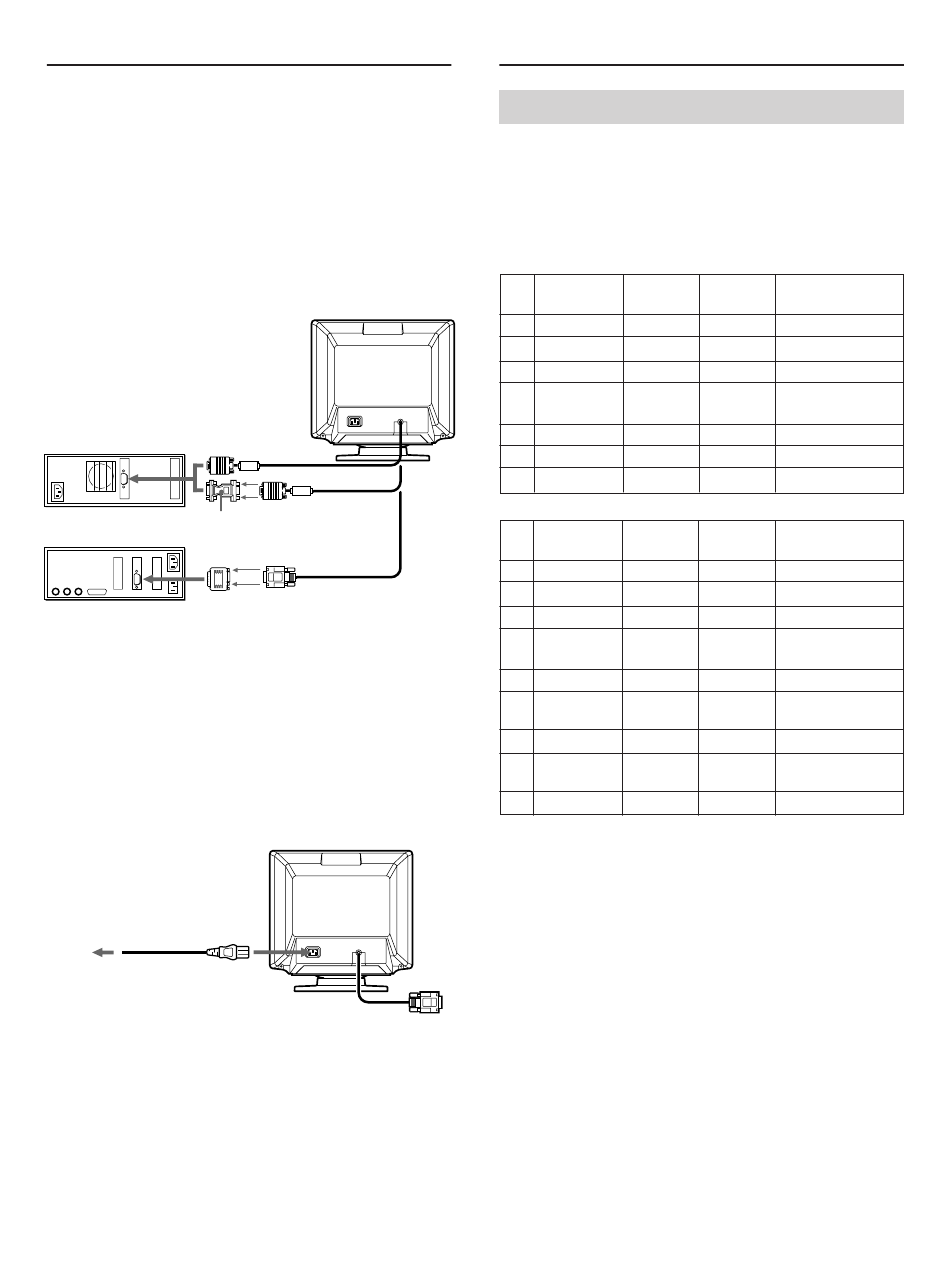

Step 1:
With the computer switched off, attach the video signal
cable to the video output.
IBM or compatible
computer
to video output
HD15 - HD15 adapter may
Apple computer
be required
to video output
Macintosh adapter (not supplied)
∗ For the customers using IBM PC or IBM compatible
system which is not compatible with DDC2AB and
DDC2B+
This monitor uses a No.9 pin in the video signal connector for
DDC2AB and DDC2B+ compatibility.
Some PC systems which are not compatible with either
DDC2AB or DDC2B+ may not accept the No.9 pin. If you are
not sure whether your PC system accepts the No.9 pin or not,
use the HD15 (Female) - HD15 (Male without the No.9 pin)
adapter (supplied). Make sure that the male side (without the
No.9 pin) is connected to the computer.
Step 2: With the monitor switched off, attach the power
cord to the monitor and the other end to a power outlet.
Power cord (supplied)
to a power outlet
Step 3: Turn on the monitor and computer.
Step 4:
If necessary, adjust the user controls according to your
personal preference.
The installation of your Multiscan 100sf/200sf is complete. Enjoy your
monitor.
1) VGA is a trademark of IBM Corporation.
2) VESA is a trademark of the non-profit organization, Video
Electronics Standard Association.
3) Macintosh is a trademark of Apple Computer Inc.
®
4) Windows is a registered trademark of Microsoft Corporation in the
United States and other countries.
4
∗

Using Your Monitor

Preset and User Modes

The Multiscan 100sf/200sf has factory preset modes for the 7 most
popular industry standards for true "plug and play" capability.
For less common modes, the Multiscan 100sf/200sf 's Digital
Multiscan Technology will perform all of the complex adjustments
necessary to ensure a high quality picture for any timing between
30 and 70 kHz (Multiscan 100sf ), 30 and 80 kHz (Multiscan 200sf ).
CPD-100SFT
Resolution Horizontal
No.
(dots × lines)
frequency
640 × 480
31.5 kHz
1
800 × 600
46.9 kHz
2
800 × 600
53.7 kHz
3
832 × 624
49.7 kHz
4
1024 × 768
60.0 kHz
5
1024 × 768
68.7 kHz
6
1280 × 1024
64.0 kHz
7
CPD-200SFT
Resolution
Horizontal
No.
(dots ×lines)
frequency frequency
640 × 480
1 31.5 kHz
800 × 600
2 46.9 kHz
800 × 600
3 53.7 kHz
832 × 624
4 49.7 kHz
1024 × 768
5 60.0 kHz
1024 × 768
6 60.2 kHz
1024 × 768
7 68.7 kHz
1152 × 870
8 68.7 kHz
1280 × 1024
9 80.0 kHz
For the customers using the Windows
Install the new model information of the Sony computer display
from "Windows 95 Monitor Information Disk" into your PC. (To
install the file, refer to the attached "About the Windows 95
Monitor Information Disk/File").
This monitor complies with "VESA DDC," the standards of
Plug&Play. If your PC/graphic board complies with DDC, select
"Plug and Play Monitor (VESA DDC)" or this monitor's model
name (CPD-100SFT or CPD-200SFT) as "Monitor type" from
"Control Panel" on Windows 95. Some PC/graphic boards do not
comply with DDC. Even if they comply with DDC, they may have
some problems on connecting this monitor. In this case, select this
monitor's model name (CPD-100SFT or CPD-200SFT) as "Monitor
type" on Windows 95.
Recommended horizontal timing conditions
Horizontal sync width should be: >1.0 µsec.
Horizontal blanking width should be: >3.6 µsec. (Multiscan 100sf)/
Vertical sync width should be: < 560 µsec.
Note
CPD-100SFT does not apply to Macintosh 21" color mode.
Vertical
Graphic mode
frequency
60 Hz VGA Graphic 1)
2)
75 Hz VESA
85 Hz VESA 2)
75 Hz Macintosh
3)
16" Color
2)
75 Hz VESA
2)
85 Hz VESA
2)
60 Hz VESA
Vertical
Graphic mode
60 Hz VGA Graphic 1)
2)
75 Hz VESA
85 Hz VESA 2)
75 Hz Macintosh
16" Color 3)
2)
75 Hz VESA
Macintosh
75 Hz
19" Color 3)
2)
VESA
85 Hz
Macintosh
75 Hz
21" Color 3)
2)
VESA
75 Hz
® 4)
95
>3.0 µsec. (Multiscan 200sf)
