LOOSE PARTS

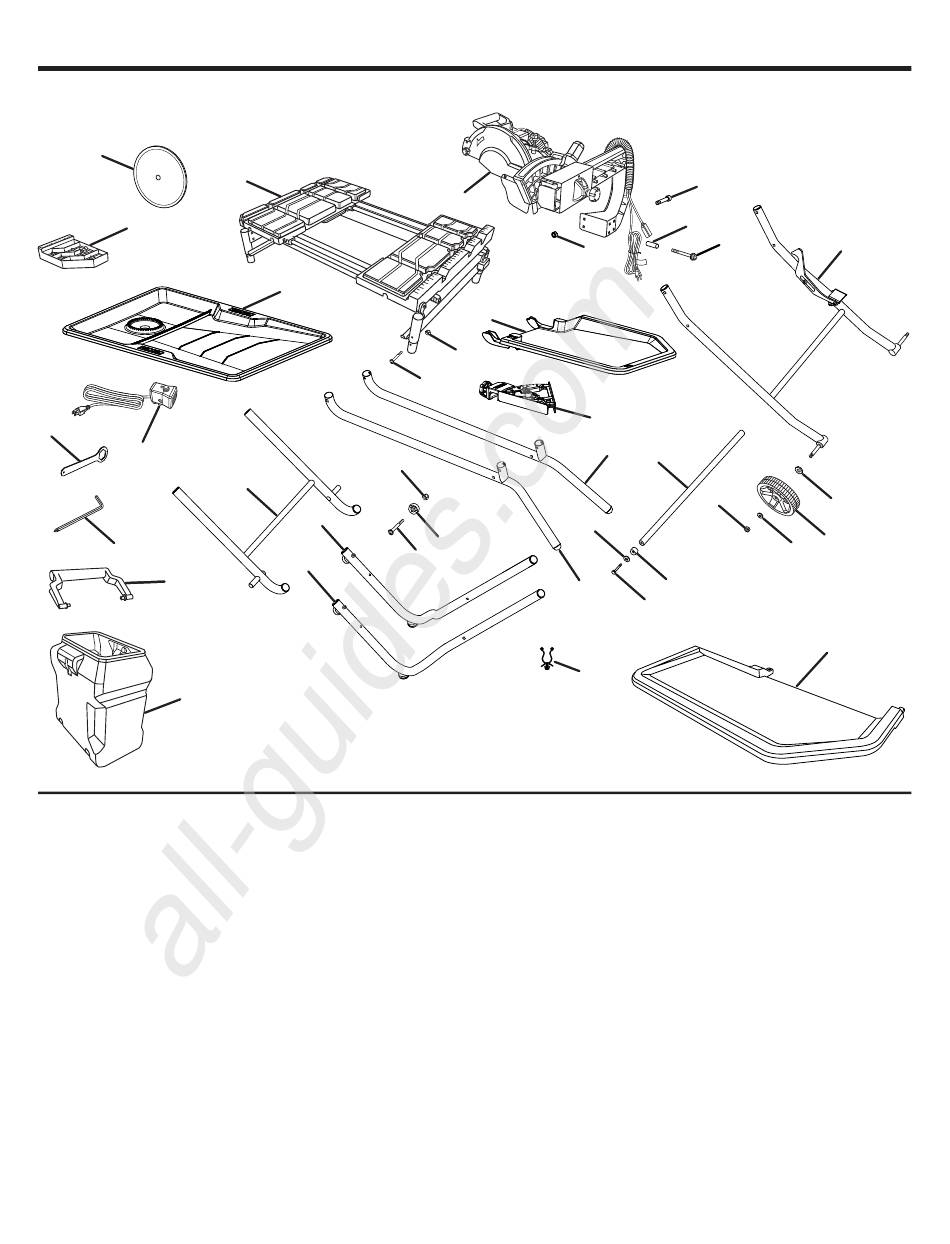

The following items are included with your tile saw:
B
FF
Y
DD
Z
CC
BB
A - Water tray frame ...............................................................1
B - Tile cutting wheel ..............................................................1
C - Motor head assembly .......................................................1
D - Cap bolt (short) ................................................................2
E - Inner leg assembly ...........................................................1
F - Cap bolt (long) .................................................................4
G - Sleeve ...............................................................................4
H - Hex nut .............................................................................2
I - Short cap screw ................................................................4
J - Lock nut ...........................................................................4
K - Water tray extensions .......................................................2
L - Miter guide .......................................................................1
M - Wheel ..............................................................................2
N - Right upper tube ...............................................................1
O - Left upper tube .................................................................1
P - Lower brace ......................................................................1
Q - Right outer tube ................................................................1
R - Left outer tube ..................................................................1
All manuals and user guides at all-guides.com
A
EE
T
AA
Q
R
C
H
K
J
I
L
W
S
U
O
GG
S - Spacer ..............................................................................8
T - Lock nut (small) ...............................................................8
U - Carriage bolt .....................................................................8
V - Hex head bolt ....................................................................2
W - Flat washer (small) ...........................................................2
X - Spacer (curved) ................................................................2
Y - Wheel wrench ...................................................................1
Z - Hex key, 8 mm ..................................................................3
AA - Center brace .....................................................................1
BB - Water tank ........................................................................1
CC - Handle ..............................................................................1
DD - Water pump ......................................................................1
EE - Water tray .........................................................................1
FF - Sliding table extension ......................................................1
GG - Hose clamps (plastic) .......................................................2
HH - Flat washer (medium) .......................................................2
II - Lock nut (large) ................................................................2
JJ - Flat washer (large) ............................................................2
11 — English
D
G
F
N
P
II
X
V
E
JJ
M
HH
K
Fig. 5
