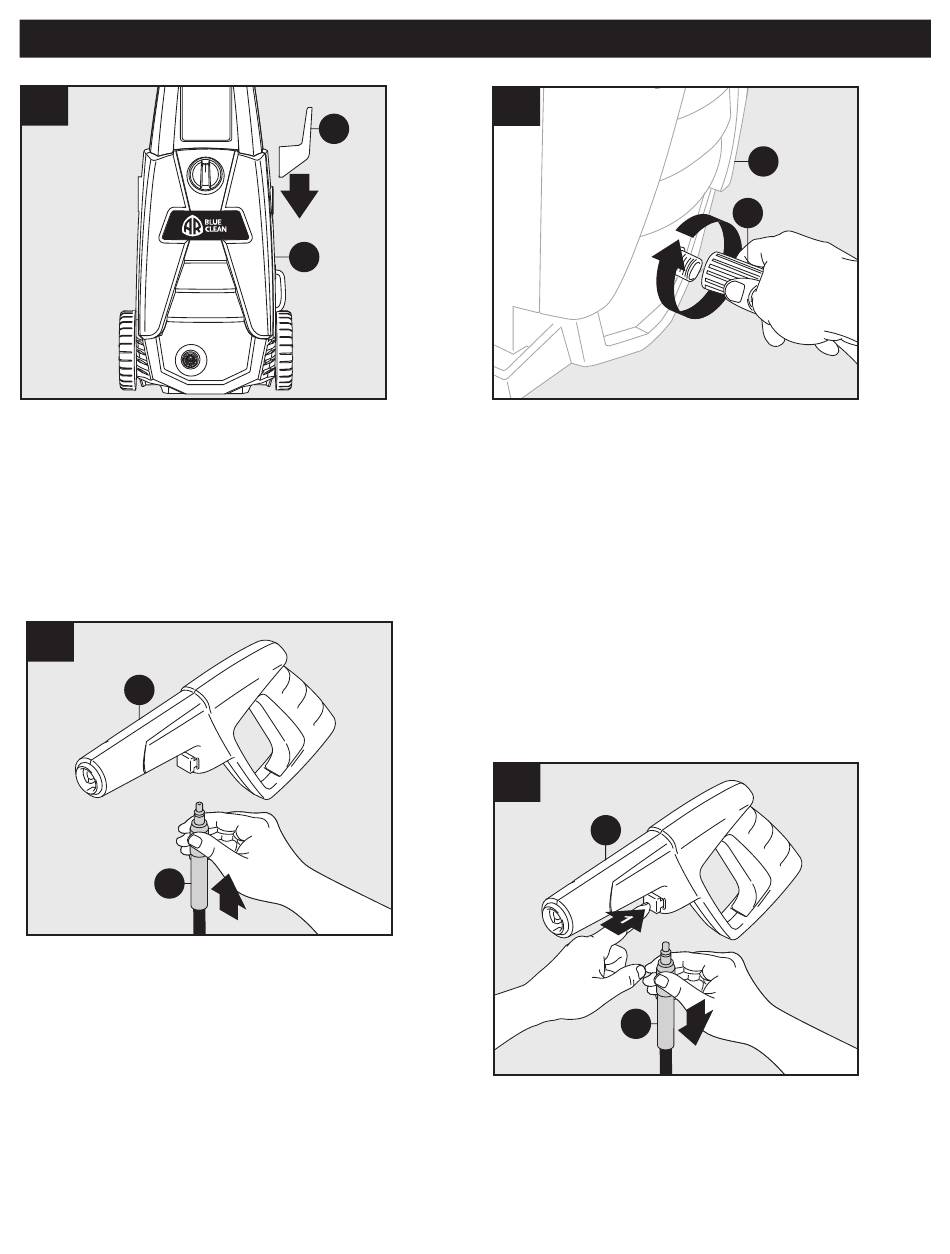

ASSEMBLY INSTRUCTIONS
3
OFF/O
1500 PSI
Slide cord hook holster (D) onto right side, when facing
the unit, of power washer unit (C) as shown.
Note: This step does not require any screws.
5
F
E
Connect the other end of high pressure hose (E) to
spray gun (F) by inserting the silver metal tip of high
pressure hose into the fitting just ahead of trigger
guard. It will lock into spray gun with a "click". Confirm
hose is locked into spray gun by slightly pulling on
hose. The hose is now securely attached to spray gun.
Note: DO NOT press button on underside of gun when
connecting hose to gun.
D
ON/I
C
4
High Pressure Hose Assembly
Screw high pressure hose (E) clockwise onto bottom
front of power washer unit (C). Pull back collar and insert
o-ring post into water outlet far enough so collar can
thread onto outlet threads until hand tight. If it takes
fewer than six turns you have not properly tightened the
high pressure hose fitting. It is easier to position the
power washer in front of you to ensure that the threads
are started correctly. Failure to properly tighten high
pressure hose will result in the hose slipping or popping
off immediately upon turning unit on. Do not worry about
damage if this occurs–just reinstall and take extra care
when screwing on the high pressure hose fitting.
Note: DO NOT use pliers or locking pliers to tighten.
6
F
E
To release hose (E) from spray gun (F), press button on
underside of gun toward trigger guard. The hose will
slide out from connection.
C
E
2
