GCE MEDIUNIT AFNOR Notice D'instructions page 6

VISUAL CHECK BEFORE INSTALLATION
• Check that all components in the package (in-
cluding labels) are not damaged. If they are
damaged, withdraw them from service and
label.
• Visually check if the product is clean, if need-
ed follow the procedure for cleaning that is
EN
described in this instruction for use.
Note: Follow the local standards and project
documentation during the installation. For in-
stallation of TU GCE recommends to keep the following procedure:

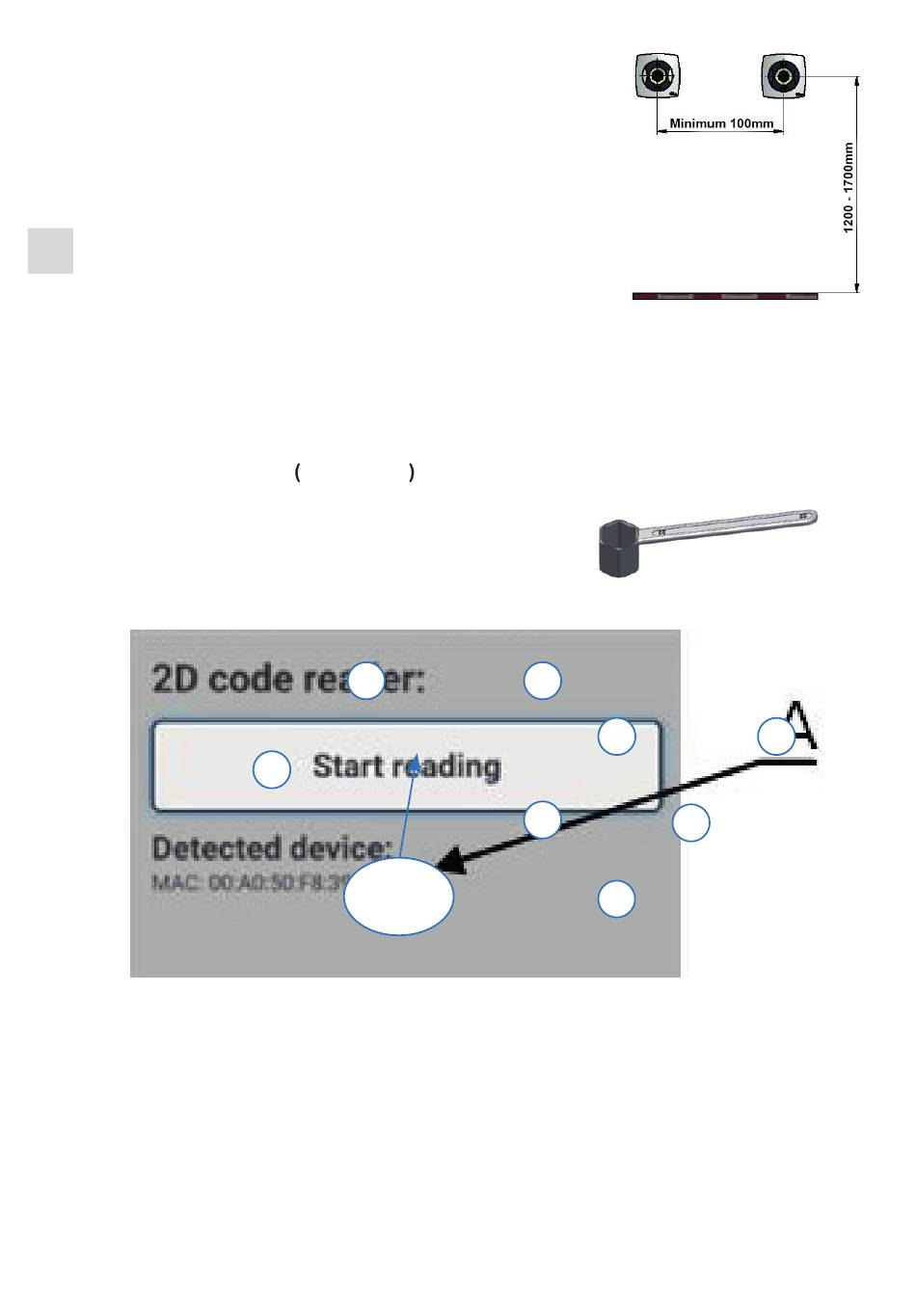

• Keep order of gases from left to right or from top to bottom as follows:
O2; N2O; O2/N2O; AIR; AIR-800; CO2; VAC; others
• Minimum distance between every installed TU: 100mm
SPECIAL TOOL MP_00371 REQUIRED FOR QUICK COUPLER
INSTALLATION
PIPE WRENCH: 32MM
Used for tightening the QC
6.1.1. RECESSED COVER INSTALLATION WITH INSTALLATION BOX
• Drill a hole of diameter 60 - 65 mm into the wall for installation of the
installation box (I).
• For axial housing (G2): drill a hole for axial inlet connection into the bot-
tom (marked) of the installation box (I). Seal the radial hole with plug (J)
to protect installation box (I).
• For radial housing (G1): continue by the next point.
• Fix the installation box (I) in the prepared hole with four screws (L).
• Place housing (G1 or G2) in the installation box (J) together with the lock-
ing plate (H) as shown on the picture and fi x with three screws M5x12 (E).
I
J
4x holes
(Z)
L
G1
L
G2
6/84
E
H
