Installation
2.1
Mounting
WARNING!
Electric shock!
Upon opening the housing, live parts are exposed!
Î Always disconnect the device from power supply
before opening the housing!
Note
Strong electromagnetic fields can impair the function of the device.
Î Make sure the device as well as the system are not exposed to strong
electromagnetic fields.
The unit must only be located in dry interior rooms.
If the device is not equipped with a mains connection cable and a plug, the device must
additionally be supplied from a double pole switch with contact gap of at least 3 mm.
Please pay attention to separate routing of sensor cables and mains cables.
In order to mount the device to the wall, carry out the following steps:
1.
Unscrew the crosshead screw from the cover and remove it along with the
cover from the housing.
2.
Mark the upper fastening point on the wall. Drill and fasten the enclosed wall
plug and screw leaving the head protruding.
3.
Hang the housing from the upper fastening point and mark the lower fastening
point (centres 130 mm).
4.
Insert lower wall plug.
5.
Fasten the housing to the wall with the lower fastening screw and tighten.
6.
Carry out the electrical wiring in accordance with the terminal allocation (see
chapter 2.2).
7.
Put the cover on the housing.
8.
Attach with the fastening screw.
6

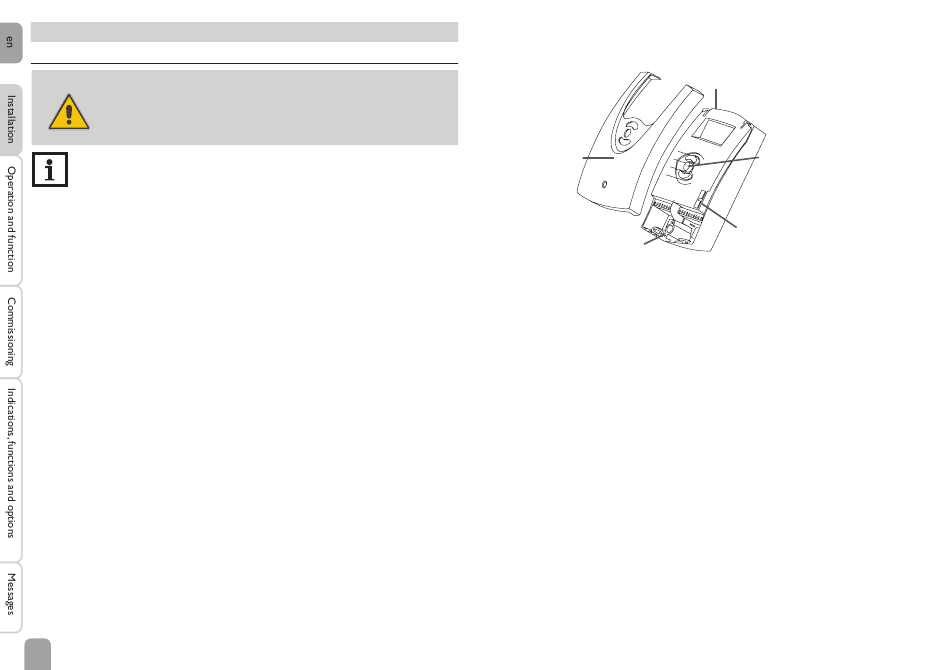

display
cover
cable conduits with
strain relief
buttons
fuse T2A
