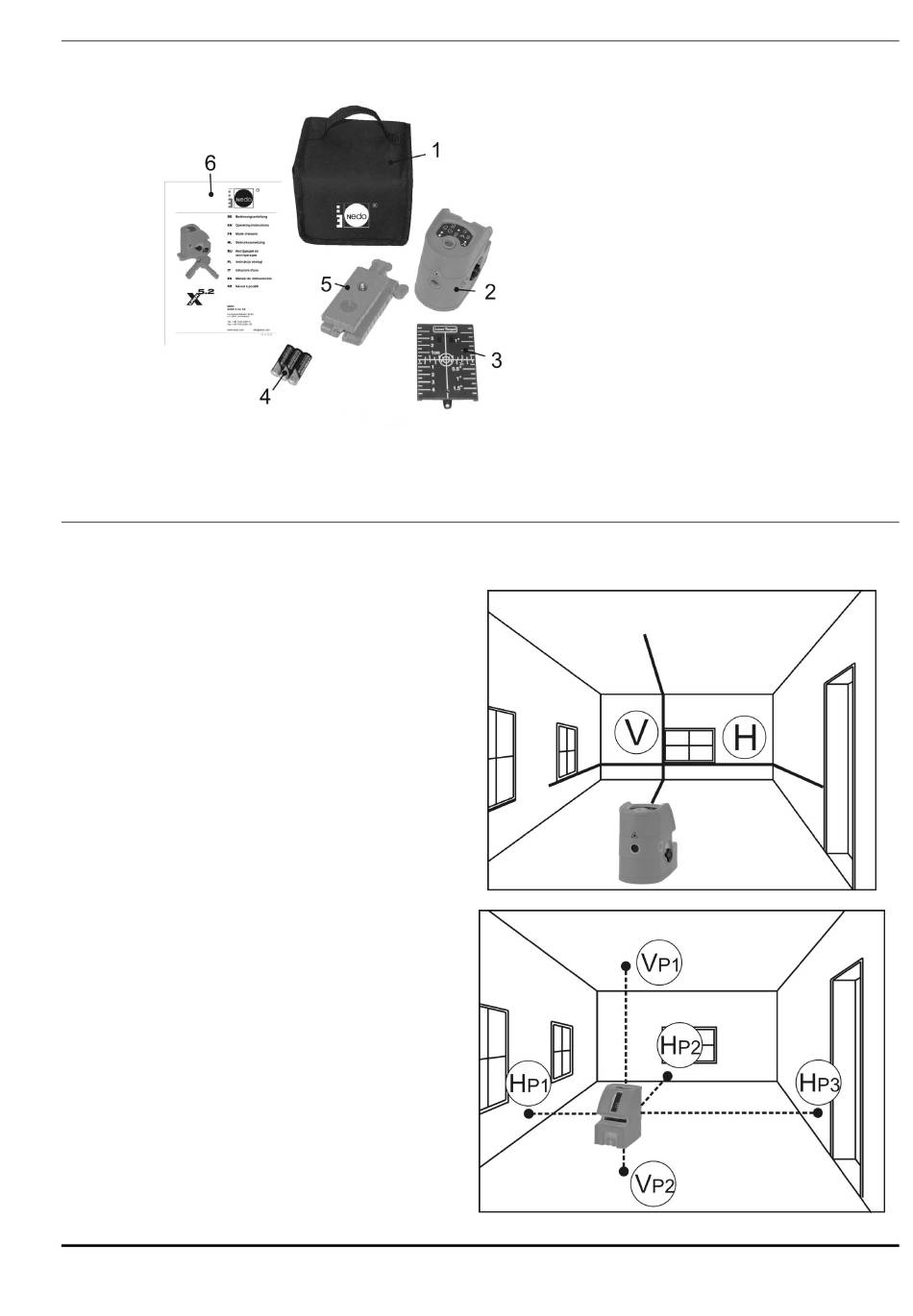

2 Scope of Supply

3 Technical Features

3.1 How it works

On the one side the X-Liner 5.2 projects a
horizontal (H) and a vertical (V) laser line,
which cross in front of the unit.
On the other side the X-Liner 5.2 projects 3
laser dots horizontally (HP
90° to each other and 2 laser dots vertically
(VP and VP ).
1 2
The X-Liner 5.2 is equipped with a
pendulum for self-levelling and levels out
tilted positioning of the unit by up to 4° in
each direction.
Operating Instructions X-Liner 5.2
– HP ), offset at
1 3
1. Transport bag
2. X-Liner 5.2
3. Laser target board
4. Batteries
5. Multifunctional mounting
6. Operating Instructions
