INFOSEC UPS SYSTEM E4LCD1000 Mode D'emploi page 37

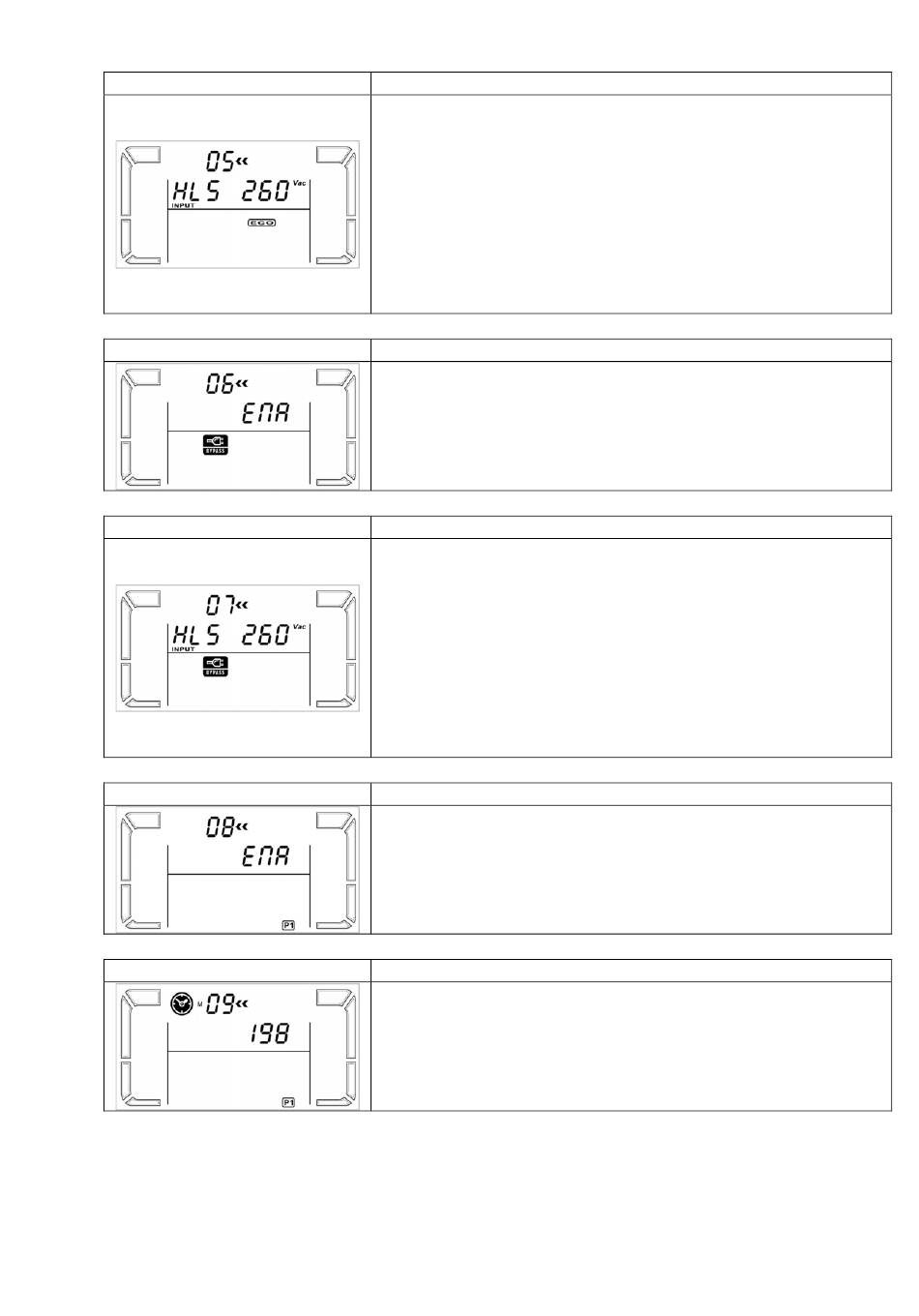

 05: ECO voltage range setting
Interface
 06: Bypass enable/disable when UPS is off
Interface
 07: Bypass voltage range setting
Interface
 08: Programmable outlets enable/disable
Interface
09: Programmable outlets setting

Interface
 00: Exit setting
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 11 10 AA 59 203 04
All manuals and user guides at all-guides.com
Setting
Press the Down key or Up key to set the acceptable high
voltage point and acceptable low voltage point:
HLS: High loss voltage in ECO mode (For 208/220/230/240
VAC models the setting range is from +7V to +24V of the
nominal voltage. For 110/115/120/127 VAC models, the setting
range is from +3V to +12V of the nominal voltage).
LLS: Low loss voltage in ECO mode (For 208/220/230/240
VAC models, the setting range is from -7V to -24V of the
nominal voltage. For 110/115/120/127 VAC models, the setting
voltage is from -3V to -12V of the nominal voltage)
Setting
ENA: Bypass enable
DIS: Bypass disable
Setting
Press the Down key or Up key to set the acceptable high
voltage point and acceptable low voltage point:
HLS: Bypass high voltage point
LLS: Bypass low voltage point
For 208/220/230/240 VAC models:
230-264: setting high voltage point from VAC to 264VAC
170-220: setting low voltage point from 170VAC to 220VAC
For 110/115/120/127 VAC models:
120-132: setting high voltage point from 120VAC to 140VAC
85-115: setting low voltage point from 85VAC to 115VAC
Setting
ENA: Programmable outlets enable
DIS: Programmable outlets disable
Setting
0-999: setting backup time limits in minutes from 0-999 for
programmable outlets which connect to non-critical devices in
battery mode.
36
