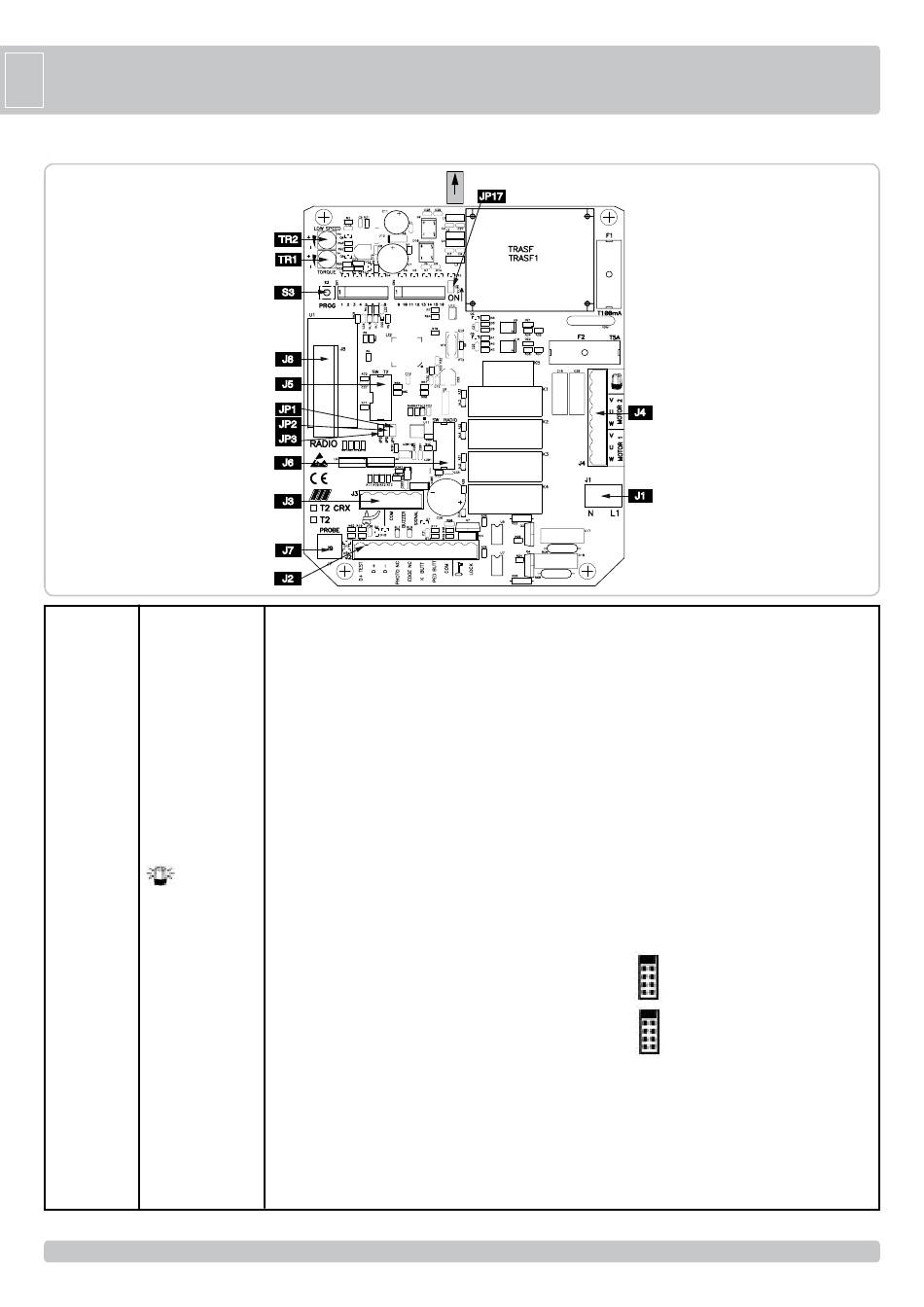

- CONTROL PANEL FEATURES

N -L1
J1
D+ TEST
J2
D +
D -
PHOT. NC
EDGE NC
K BUTT.
PED. BUTT.
COM
LOCK
AERIAL
J3
COM
BUZZER
SIGNAL
J4
U - MOTOR 2
V-W - MOTOR 2
U - MOTOR 1
V-W - MOTOR 1
SW T2
J5
J6 SW RADIO
PROBE
J7
J8 RADIO
JP17
PROG
S3
TORQUE
TR1
TR2 LOW SPEED
ON
TR2
TR1
S3
J8
J5
JP1
JP2
JP3
J6
J3
J7
J2
Main power supply 230 Vac 50/60 Hz (120V/60Hz upon request)
Safety strip self-test power supply +12Vdc
Accessories power supply +12Vdc
Accessories power supply -12Vdc
Photocells contact (NC)
Safety strip contact (NC)
Single pulse contact (NO)
Pedestrian opening contact (NO)
Common contact (common line for all the command and safety inputs)
Electric lock connection (MAX 15W 12V)
Radio Antenna
Common contact (common line for all the command and safety inputs)
Buzzer contact (12Vdc max 200 mA)
Gate open state output indicator (12Vdc 3W max)
Flashing light (max 40W )
MOTOR 2 COMMON CONNECTION
MOTOR 2 PHASE AND CAPACITOR CONNECTIONS
MOTOR 1 COMMON CONNECTION
MOTOR 1 PHASE AND CAPACITOR CONNECTIONS
DO NOT REMOVE ANY JUMPER!
OTHERWISE THE OPERATOR WILL NOT WORK!
(only CRX control board)
DO NOT REMOVE ANY JUMPER!
OTHERWISE THE OPERATOR WILL NOT WORK!
Not available for R50
Built-in radio module (model CRX), or connector for radio receiver RIB, 12 Vdc supply
To select 1 motor (M1) or 2 motors (M1 and M2)
Programming button
Electronic torque regulator
Electronic regulator for low speed on approach motor
