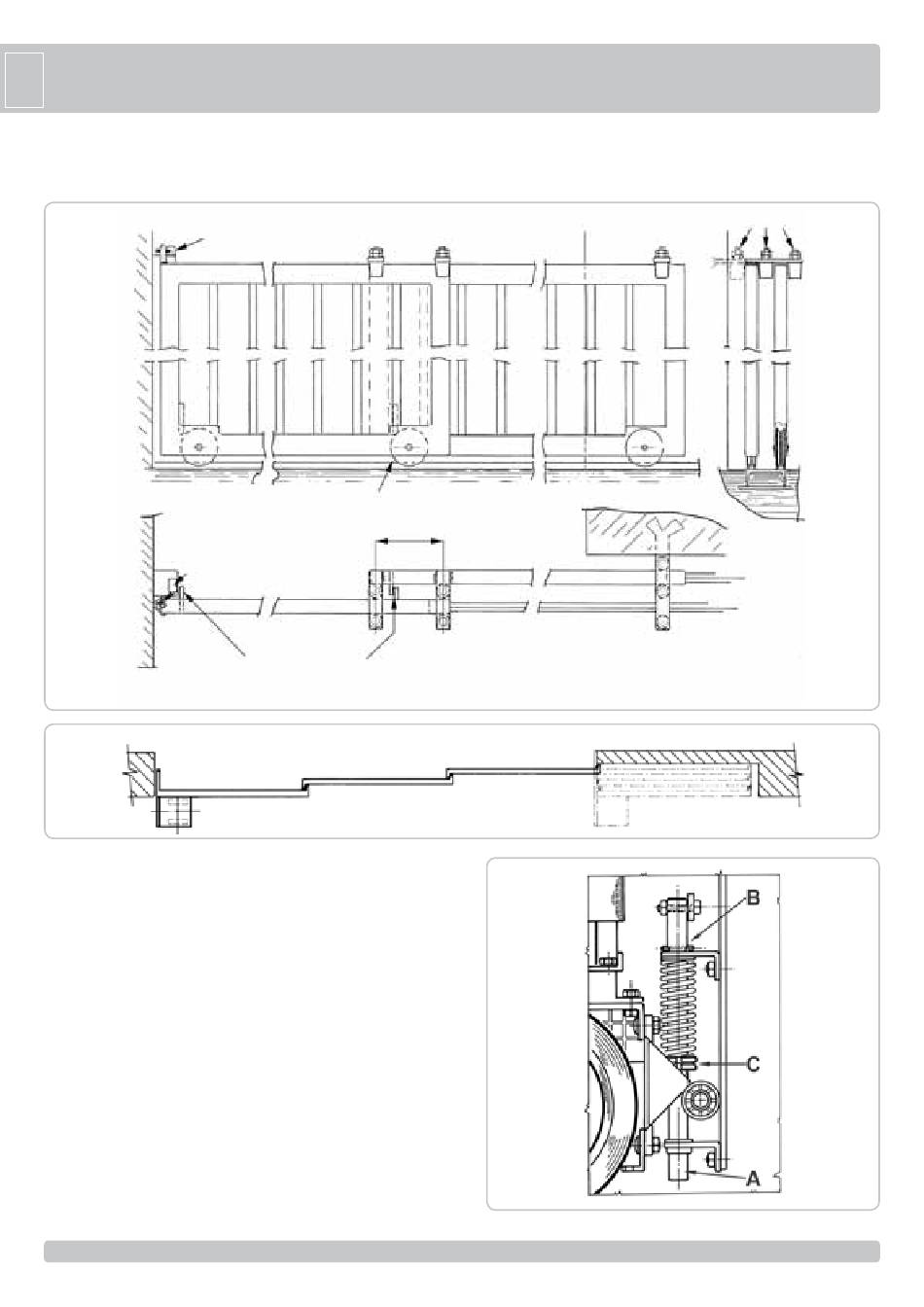

50 APPLICATION ON MULTIPLE PANEL DOORS
In this case the R50 must be installed on the first leaf.
Internal
Limit switch
Box
External
E
MERGENCY RELEASE
To be undertaken after disconnecting power supply.
In the event of a power failure, raise the side handle to lift the wheels
off the ground.
In order to carry out the manual operation of the gate leaf the followings
must be checked:
- That the gate is endowed with appropriate handles;
- That these appropriate handles are placed so to avoid safety risks for
the operator;
- That the physical effort necessary to move the gate leaf should not be
higher than 225 N, for doors/gates for private dwellings, and, 390N for
doors/gates for commercial and industrial sites ( values indicated in
5.3.5 of the EN 12453 norm
A
: Maximum stroke 60 mm during movement (holes or uneven ground)
B
: Remove the elastic pin, after the unit is secured, to release the
spring.
C
: Spring set screw.
Limit switch
Wheels Ø120
Mechanical stopper
250
26
26
Olive
Box
Guide
4
5
6
