BOD 37M-LPR02-S115
Photoelectric Sensors – Laser Distance Sensor

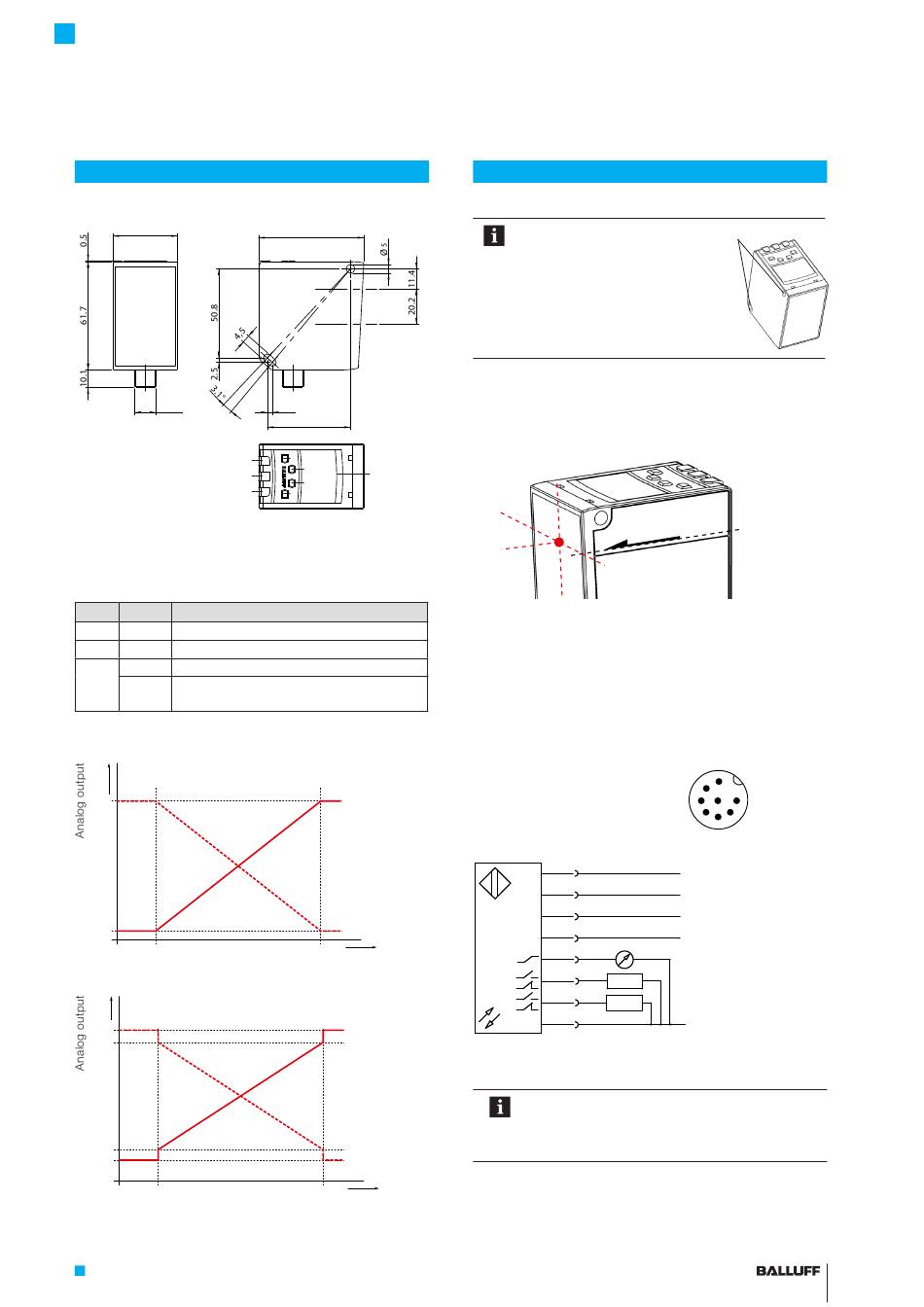

Construction and function
Dimensions
37
M12x1
1 ESC button
6
2 Up button
7
3 Down button
8
4 SET button
5 5-digit / Multi Display
6 LED 1
7 LED 2
8 LED 3
LED
Color
1
Yellow
Output Q1 is active
2
Yellow
Output Q2 is active
3
Red
Measurement is outside the measuring range
Green
Sensor is switched on, measurement is
within the measuring range
Output function
V
10
0.2
0
MIN
mA
20.5
20.0
4.0
3.5
0
MIN
www.balluff.com
60
2.9
47.4
1
2
5
3
4
Function
MAX
mm
Distance
MAX
mm
Distance
Installation and connection
The sensor can be fastened
through two holes in the body (1)
with screws, tightening nuts, and
washers. Only fasten the sensor
to the reference surface marked
with A!
In case of direct fastening, observe an adjustment angle of
±1.5°. The measurement refers to the front surface of the
laser optics (see figure).
Ref.
1. In a de-energized state, connect the M12 connector to
the sensor.
2. Connect the cable to the supply voltage and I/O as
intended for the respective model.
3. Aim the sensor's laser point at the target and fasten
the sensor in a suitable holder with two screws (e.g.
M4×45, with tightening nuts and washers).
Plug and porting configuration
(Top view of the plug on the BOD)
1)
Pin:
Colors :
2
BN
1
WH
6
PK
8
RD
3
GN
4
YE
5
GY
7
BU
1) In conjunction with the plug connector specified under
accessories
The measurement function is available just a few
seconds after the device is switched on. To
achieve full accuracy, a warm-up phase of
approximately 20 minutes must be observed.
1
A
2
3
4
8
1
7
5 6
+24 V ±20 % (U
)
B
RS485 –
RS485 +
Multifunction input (IN)
Analog Out (QA)
Q1 (≤ 100 mA)
Q2 (≤ 100 mA)
0 V
english
