Installing your appliance
3
Information required for the preparation of the in-
stallation place for your hood is given below.

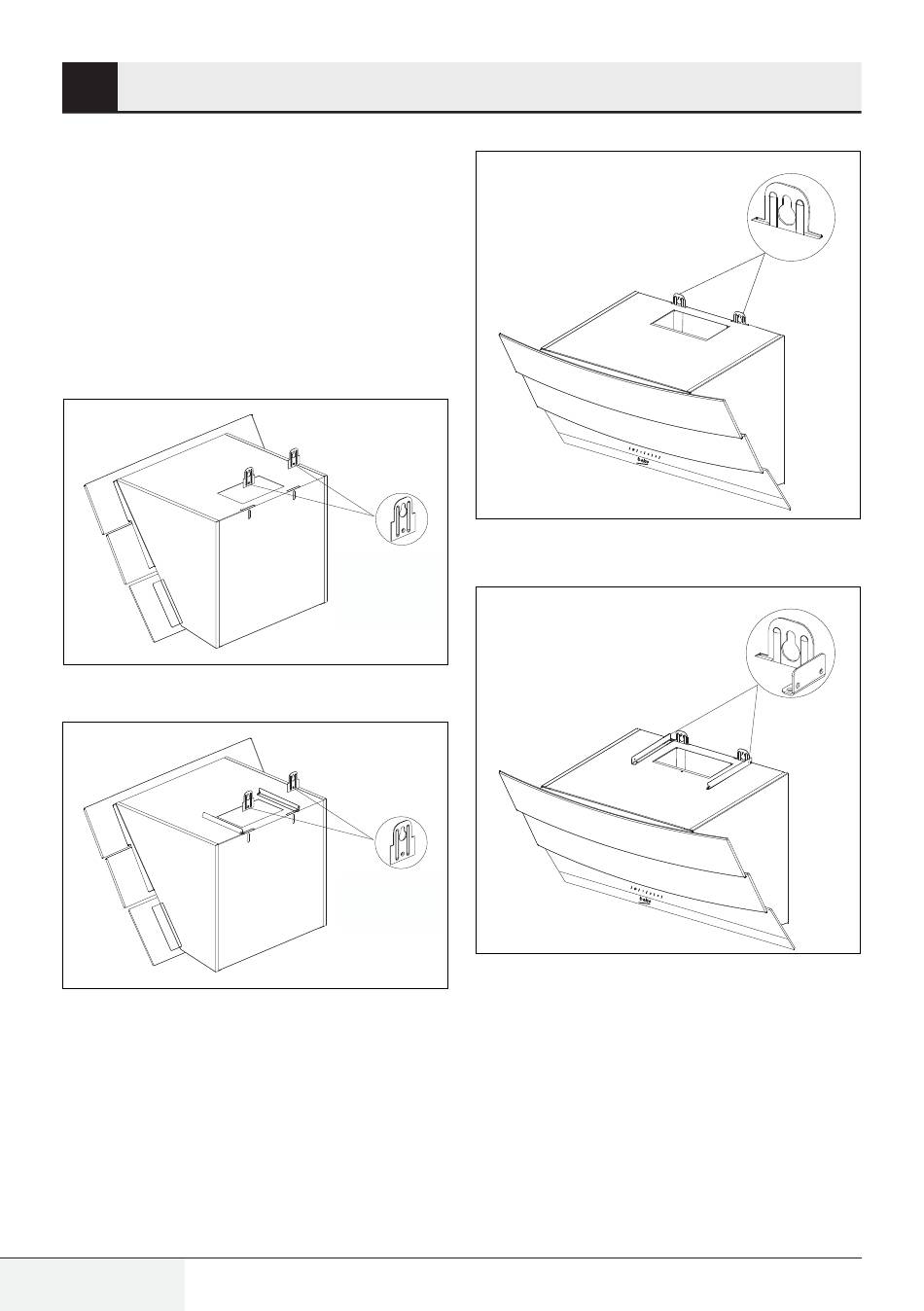

3.2 Installing the hood onto
the wall
To install the hood onto the wall, loosen the
screws of hanger plates on the motor housing and
pull the plates upwards. Then, tighten the screws
of the hanger plates. (Figure 3a).
(Figure 3a - 60)
(Figure 3a - 90)
10 / EN
External flue connection
plate
(Figure 3b - 60)
Hanger
plate
External flue connec-
tion plate
Hanger
plate
(Figure 3b - 90)
Secure the Ø 150 mm plastic flue adapter onto the
top of the body with 3.5x9.5 screw included in in-
stallation accessories (Figure 4).
If you will use Ø 120 mm flue pipe, install Ø 120
mm flue adapter onto it.
Hood / User Manual
