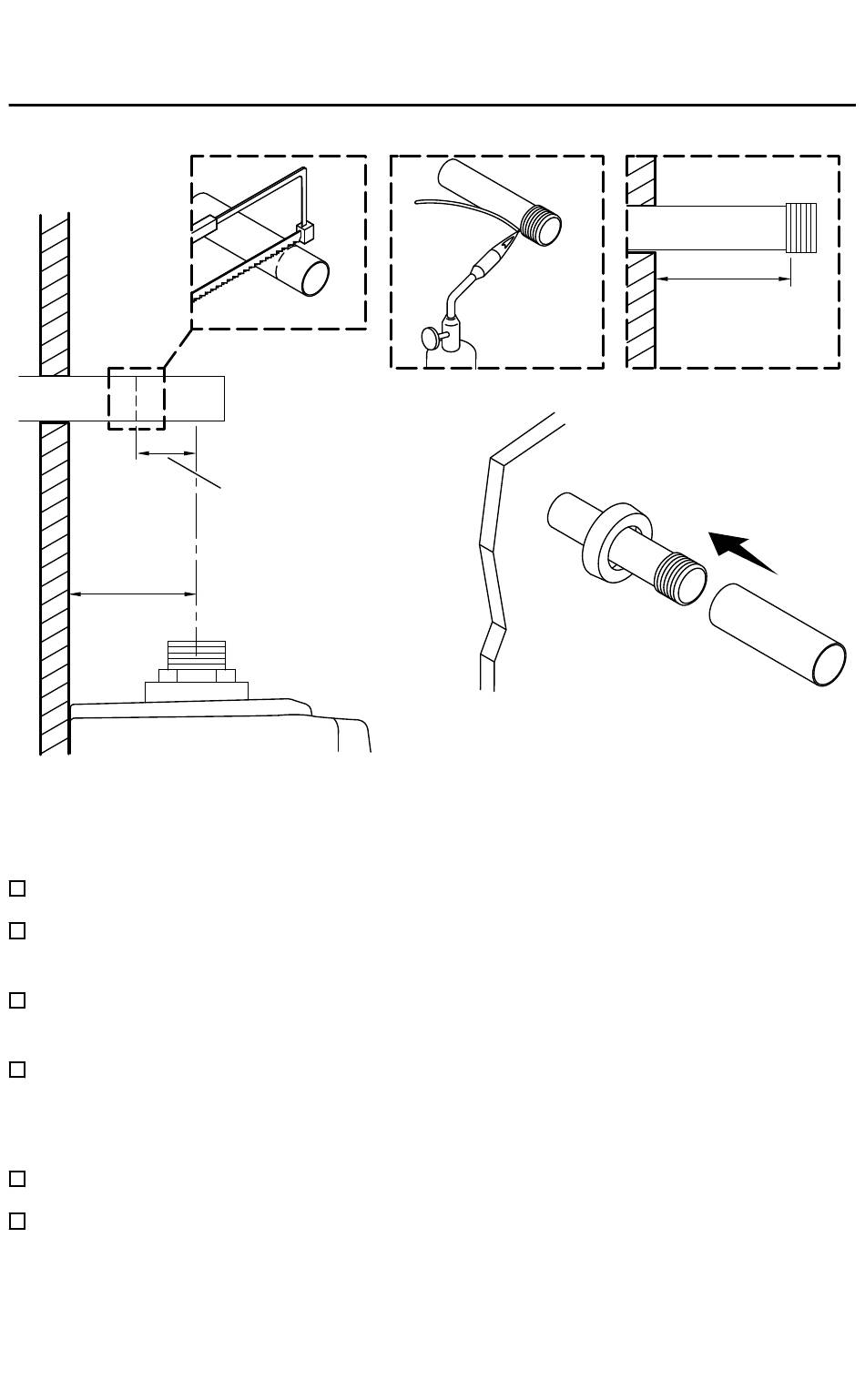

1. Prepare the Supply Pipe
2-1/4"
(57 mm)
Min
NOTE: The fixture spud must be at least 2-1/4" (57 mm) from the finished wall.
Cut the supply pipe to proper length. Refer to the fixture specification sheet.
Threaded Pipe: The end of the pipe should be 1-1/8" (29 mm) from the center of
the spud.
Non-threaded Pipe: The end of the pipe should be 1-1/4" (32 mm) from the center
of the spud.
Non-threaded Pipe: Solder the threaded adapter onto the supply pipe.
NOTE: If a longer sleeve is needed, contact the Customer Care Center.
Measure to the first thread to determine the sleeve length.
Slide the sleeve over the supply pipe and into the escutcheon.
Kohler Co.
1-1/8" (29 mm)
Threaded
1-1/4" (32 mm)
Non-Threaded
5
Sleeve
6" (152 mm)
Max
