INSTALLATION

To install the monitor to your host system, please follow the steps as given below:
Steps
1. Open the connector cover first.
2. And then open the cable cover.
3. Connect Video Cable
a. Make sure both the monitor and computer are powered-OFF.
b. Digital: Connect the DVI signal cable to the connector of the computer first, then
to the monitor.
Analog: Connect the 15-pin mini D-SUB signal cable to the connector of the
computer first, then to the monitor.
4. Connect power cord
Connect the power cord to the monitor, then to a properly grounded AC outlet.
5. Assemble the cable cover.
6. Cover the connector cover.
7. Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
8. If the monitor still does not function properly, please refer to the trobleshooting section
to diagnose the problem.

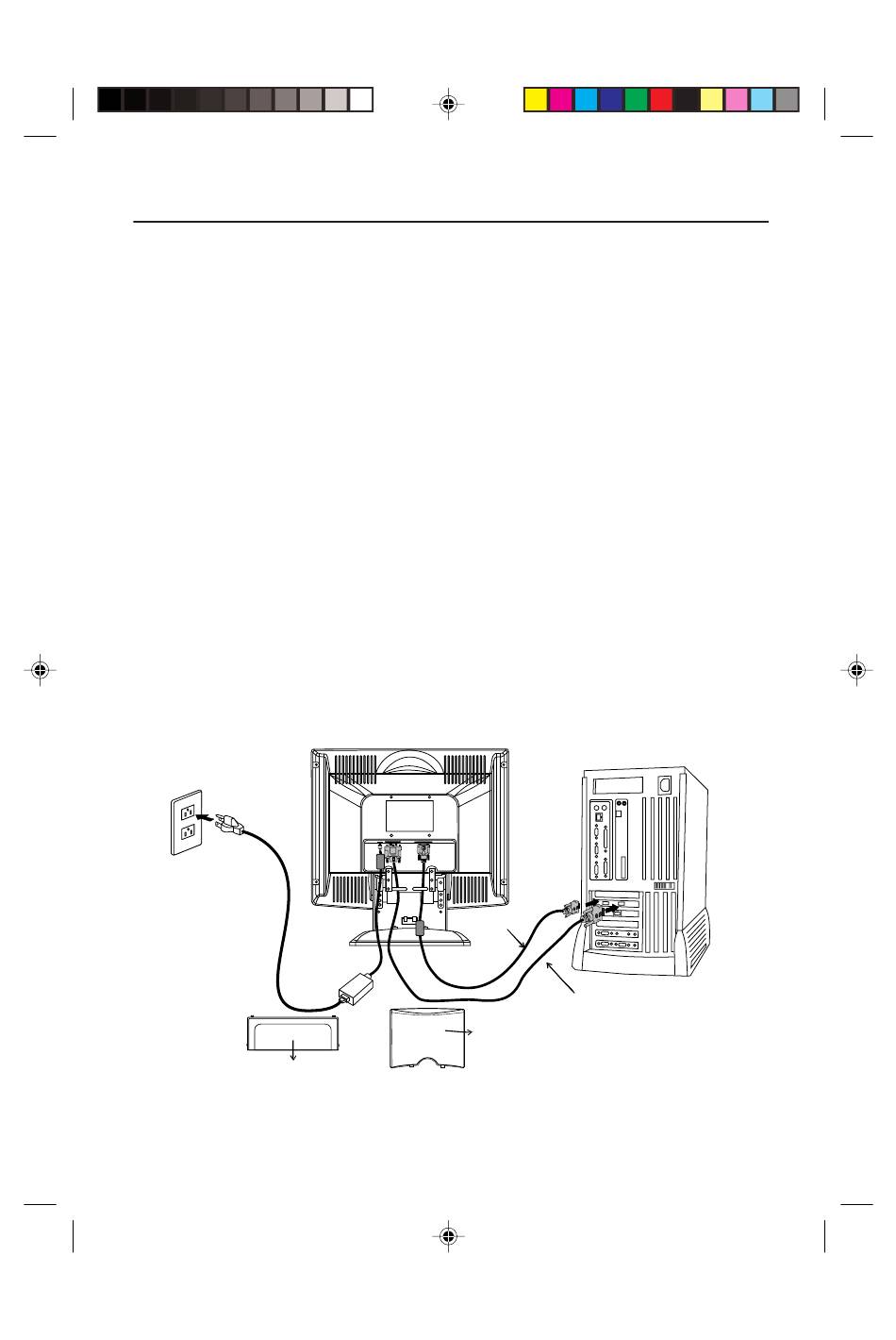

Connector Cover
