3-2-2. AC Input / Output Terminal


AC Input Terminal
SR-1600 PLUS provides the AC utility input terminal at the rear side,
and user can connect the AC cable at L / N / FG. The SR-1600 PLUS
support the AC input side internal parallel connection.

AC Output Terminal
The AC output terminal at the rear side of the SR-1600 PLUS. User can
connect the L / N / FG.

3-2-3. Dry contact and remote

④
⑦

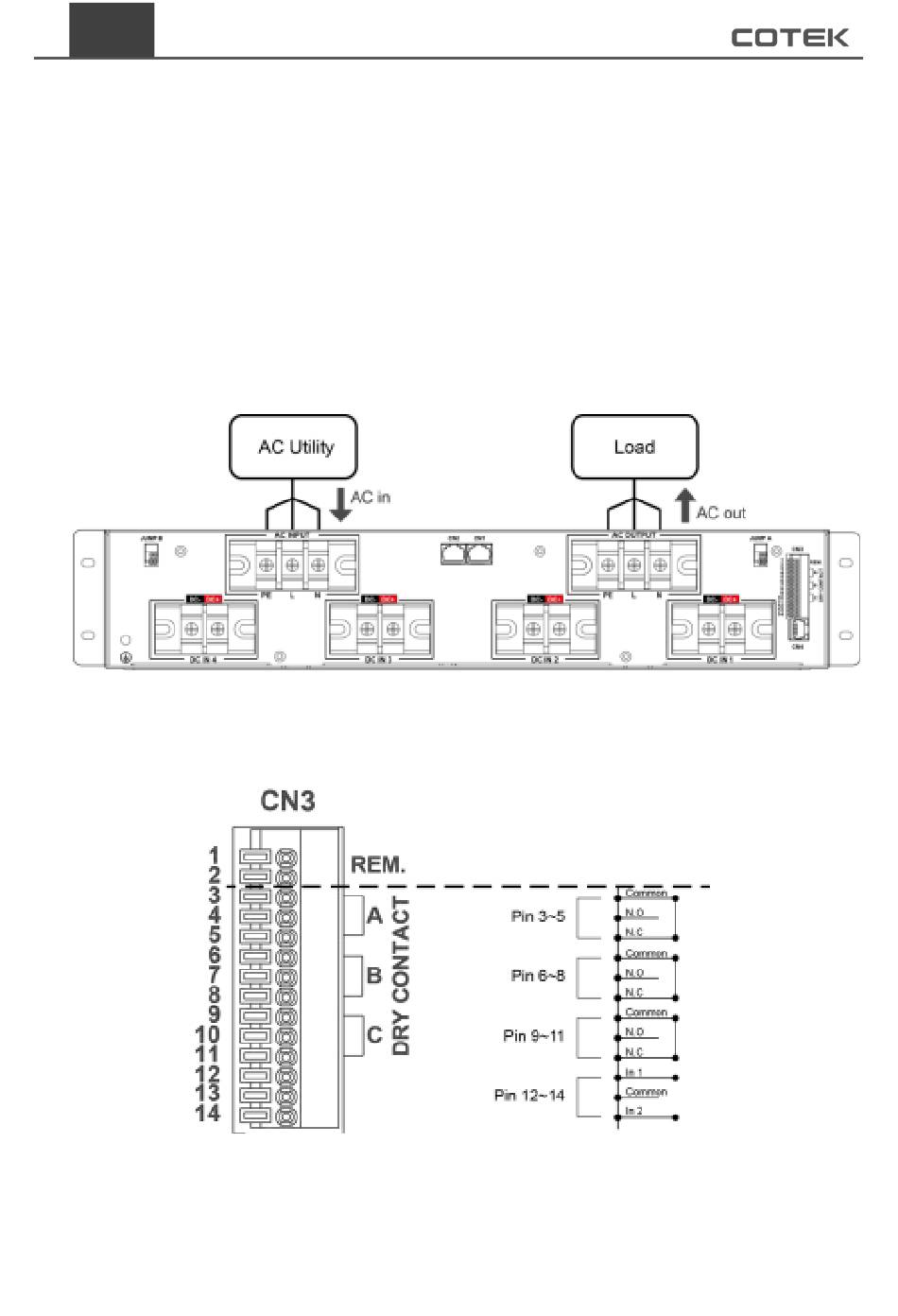

Figure 5. AC terminal connection
Figure 6. CN3 dry contact pin assignment
④⑦
⑨
