sigfox REFERENCE TRANSMITTER - Guide utilisateur / User guide version V1.0.0
1.
PRODUCT PRESENTATION
Description:
The adeunis® sigfox REFERENCE TRANSMITTER is a tool to help install the adeunis SIGFOX Repeater (ARF8168).
When installing a adeunis SIGFOX repeater, you have to be sure that the repeater could catch all the SIGFOX
devices to be repeated and that it is also seen by the SIGFOX network.
FR
SIGFOX devices are low emission transmitters. At most, a SIGFOX device emits a frame every 10min and in very
EN
many cases, it emits only a few frames per day. Under these conditions, it is impossible on an installation which
must be as fast as possible to wait for a transmission of the SIGFOX devices to check the good reception by the
repeater.
It is therefore the idea of the sigfox REFERENCE TRANSMITTER who comes next to the sensor to repeat to replace
the latter.
The sigfox REFERENCE TRANSMITTER is a SIGFOX transmitter:
•
Standalone (with removable battery)
•
Capable of periodically sending SIGFOX frames
•
Adjustable in power according to the CLASS defined by SIGFOX
•
With no needed registration on SIGFOX backend (no PAC delivered)
IMPORTANT: this product should only be used as part of a repeater installation with the repeater configuration
application (Windows or Android) to ensure optimal repeater installation.
The configuration of the sigfox REFERENCE TRANSMITTER is so guided by these application.
Composition of the package
The product is supplied in a cardboard box containing the following items:
top casing, electronic card, casing base plate,
2 CBLZ 2.2 x 19mm screws, 2 Fischer SX4 plugs.

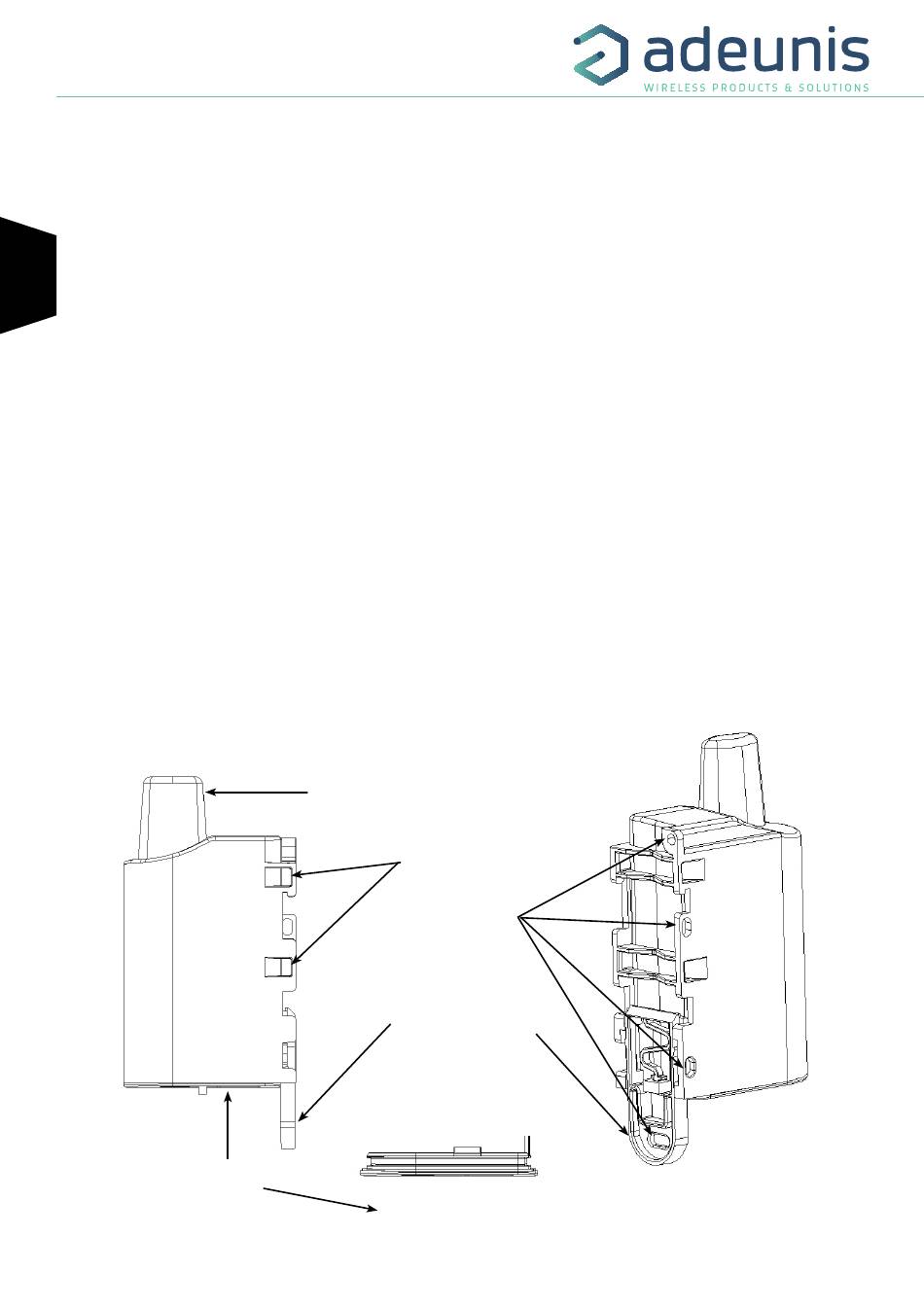

1.1. General description
Casing base
Antenna
2 holes for passing
collars through
4 fastening holes
Rail-DIN unlocking
lever
Casing base detail
Cables outlet
packing gland
Page
Page
10
10
of 30
of 30
