10.5 Levelling adjustment

2
1
Levelling Method

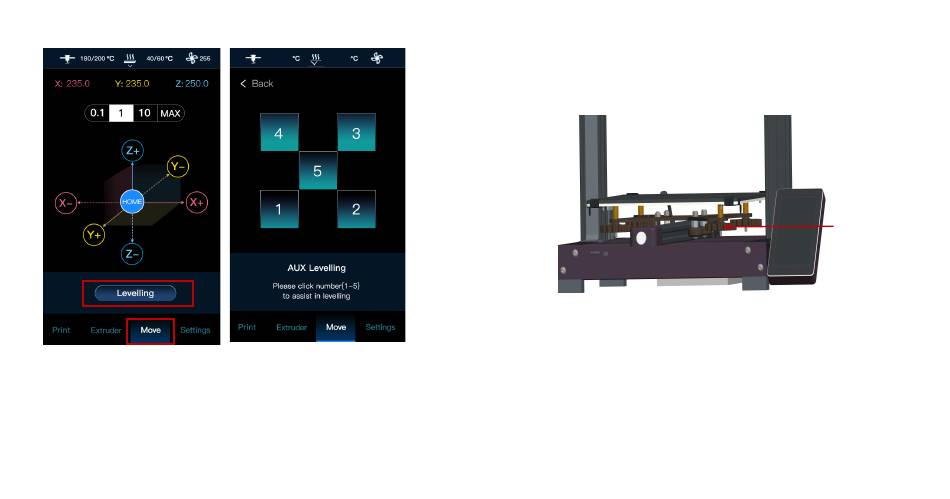

Turn on the printer, wait for it to enter the "Move" page, and then click
the "Levelling" button to enter the leveling page. In the leveling page,
click the button from 1 to 5 to level. Prepare a piece of A4 paper at the
same time, the thickness of a piece of paper is used for measuring the
distance between nozzle and heat bed, and the suitable distance is
0.1mm the thickness of paper.
Levelling operation
Click the number "1", the print head will reset and move the print head to the lower
left corner of the heating bed. When leveling, insert the paper into the gap between
the nozzle and the heating bed, and adjust the leveling hand wheel while pulling the
paper back and forth. , When you feel a significant sense of damping (or resonance)
but you can twitch, the point 1 is leveled. Then click on the point 2, point 3, and
point 4 to level. Finally, click on the point 5 to check the leveling. If the point 5 is
also well leveled, you can end the leveling. If the point 5 is not leveled, then level
point 1, 2, 3, and 4 again. Usually there is no need to check point 5 for the second
time levelling. Please note that the point 1 must be returned first, otherwise the
nozzle will not find the correct position.
Levelling
manual
knob
