3. INSTALLATION

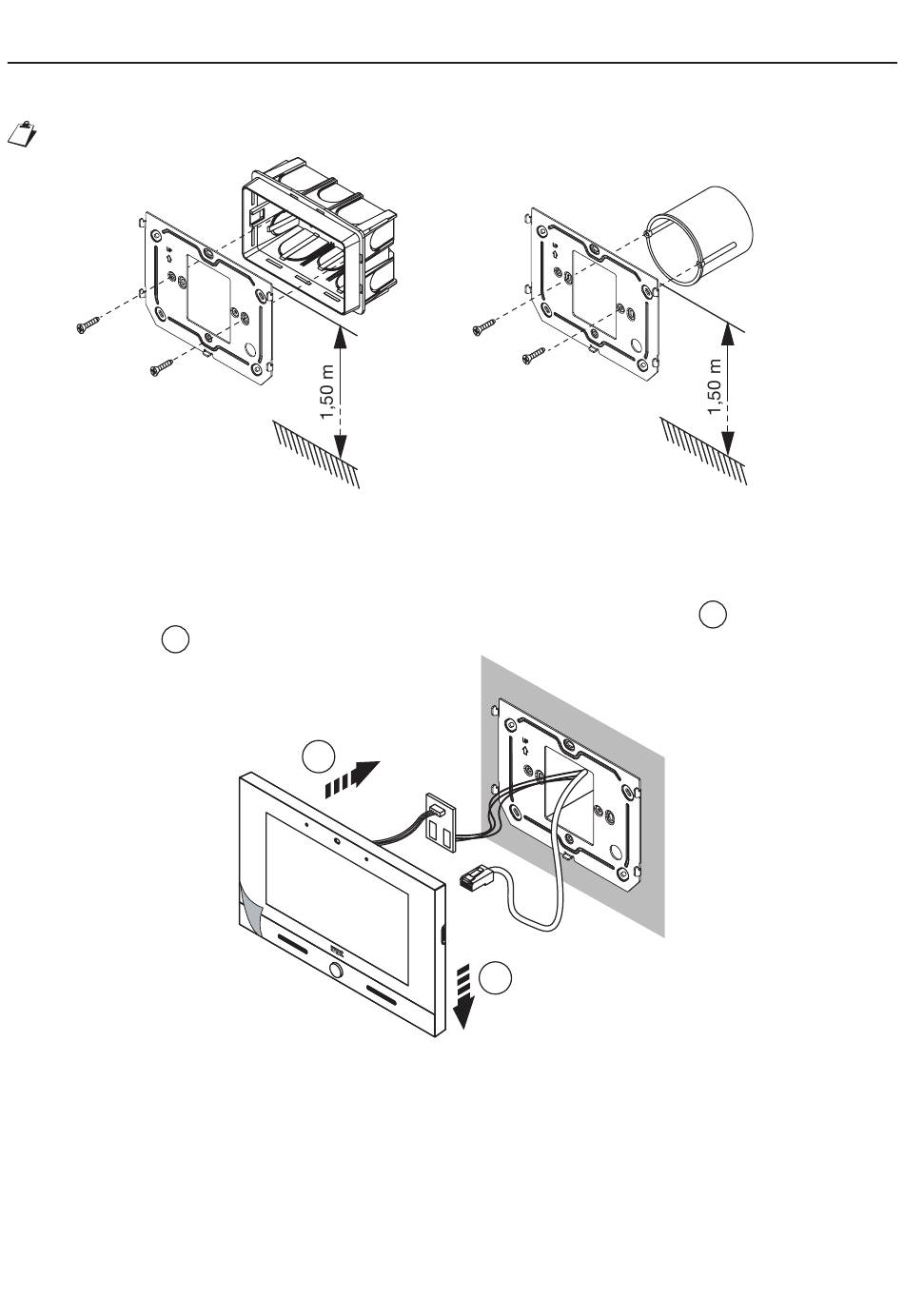

Embed the flush-mounting box Mod. 503 in the wall or the flush-mounting box Ø 60 at the height shown
in the following drawing.
The flush-mounting box Mod. 503 can be installed either horizontally or vertically.
Connect any panic function, extra ring tone, floor call, auxiliary power and link to IPerHOME system
function wires to the terminals on the external printed circuit.
Connect the video door phone to the connector CN1 on the printed circuit board via the cable provided
on the back of the video door phone.
Move the video door phone close to the bracket by centring the special fixings 1 and slide it down to
reach its stop 2 (see the following image).
Use a screwdriver to move the latch for locking the video door phone to the bracket from right to left.
Remove the protective film from the display.
DS1761-018
Box 503
1
2
Box Ø 60 mm
3
