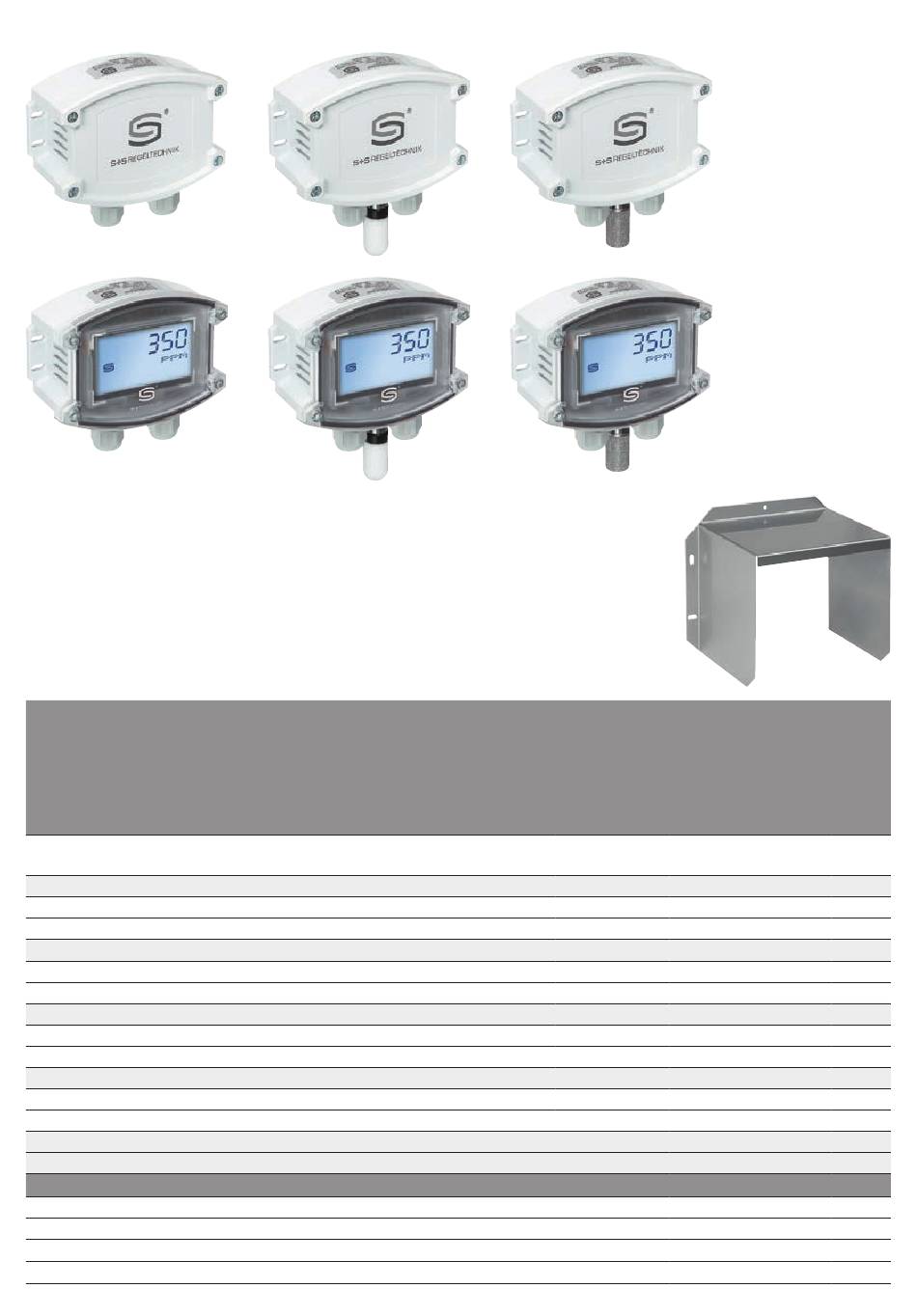

AERASGARD ACO2 ⁄ ALQ - CO2 ⁄ AFTM - (LQ )- CO2 - Modbus
ACO2 -Modbus
ALQ - CO2 -Modbus
without filter
(standard)
®
AERASGARD ACO2 - Modbus
®
AERASGARD ALQ - CO2 - Modbus
AERASGARD ® AFTM - CO2 - Modbus
®
AERASGARD AFTM - LQ - CO2 - Modbus Multifunctional on-wall sensor
Type ⁄ WG02
ACO2 -Modbus
A C O 2 - M o d b u s
A C O 2 - M o d b u s LCD
ALQ - CO2 -Modbus
A L Q - C O 2 - M o d b u s
A L Q - C O 2 - M o d b u s LCD
AFTM - CO2 -Modbus
A F T M - C O 2 - M o d b u s
A F T M - C O 2 - M o d b u s LCD
AFTM - LQ - CO2 -Modbus
A F T M - L Q - C O 2 - M o d b u s
A F T M - L Q - C O 2 - M o d b u s LCD
Note: This unit must not be used as safety-relevant device!
Optional: Cable connection with M12 connector according to DIN EN 61076-2-101
ACCESSORIES
KA2 -Modbus Communication adapter (USB/RS485) for system connection
LA -Modbus Line termination device (with terminating resistor) as an active bus termination
SF-M Metal sinter filter, Ø 16 mm, L = 32 mm, exchangeablevstainless steel V4A (1.4404)
WS-03 Weather and sun protection hood, 200 x 180 x 150 mm, stainless steel V2A (1.4301)
AFTM - CO2 - Modbus
AFTM - LQ - CO2 - Modbus
with plastic sinter filter
(standard)
On-wall sensor for CO2 content, Deluxe
On-wall sensor for CO2 content and air quality (VOC), Deluxe
Multifunctional on-wall sensor
for humidity, temperature and CO2 content, Deluxe
for humidity, temperature, CO2 content and air quality (VOC), Deluxe
Measuring Range
Humidity Temperature
– –
– –
– –
– –
0...100 % r.H. –35...+80 °C
0...100 % r.H. –35...+80 °C
0...100 % r.H. –35...+80 °C
0...100 % r.H. –35...+80 °C
AFTM - CO2 - Modbus
AFTM - LQ - CO2 - Modbus
with metal sinter filter
(optional)
Display
CO2 VOC
5000 ppm –
5000 ppm –
5000 ppm 0...100 %
5000 ppm 0...100 %
5000 ppm –
5000 ppm –
5000 ppm 0...100 %
5000 ppm 0...100 %
16
Rev. 2021 - V25
Weather and sun
protection hood
Item No.
1501- 7110- 6001-200
■ 1501- 7110- 6071-200
1501- 7111- 6001-500
■ 1501- 7111- 6071- 500
1501- 7116- 6001-200
■ 1501- 7116- 6071- 200
1501- 7118- 6001-500
■ 1501- 7118- 6071- 500
on request
1906- 1200- 0000- 100
1906- 1300-0000- 100
7000- 0050-2 200-100
7100- 0040-60 00-000
WS-03
(optional)
