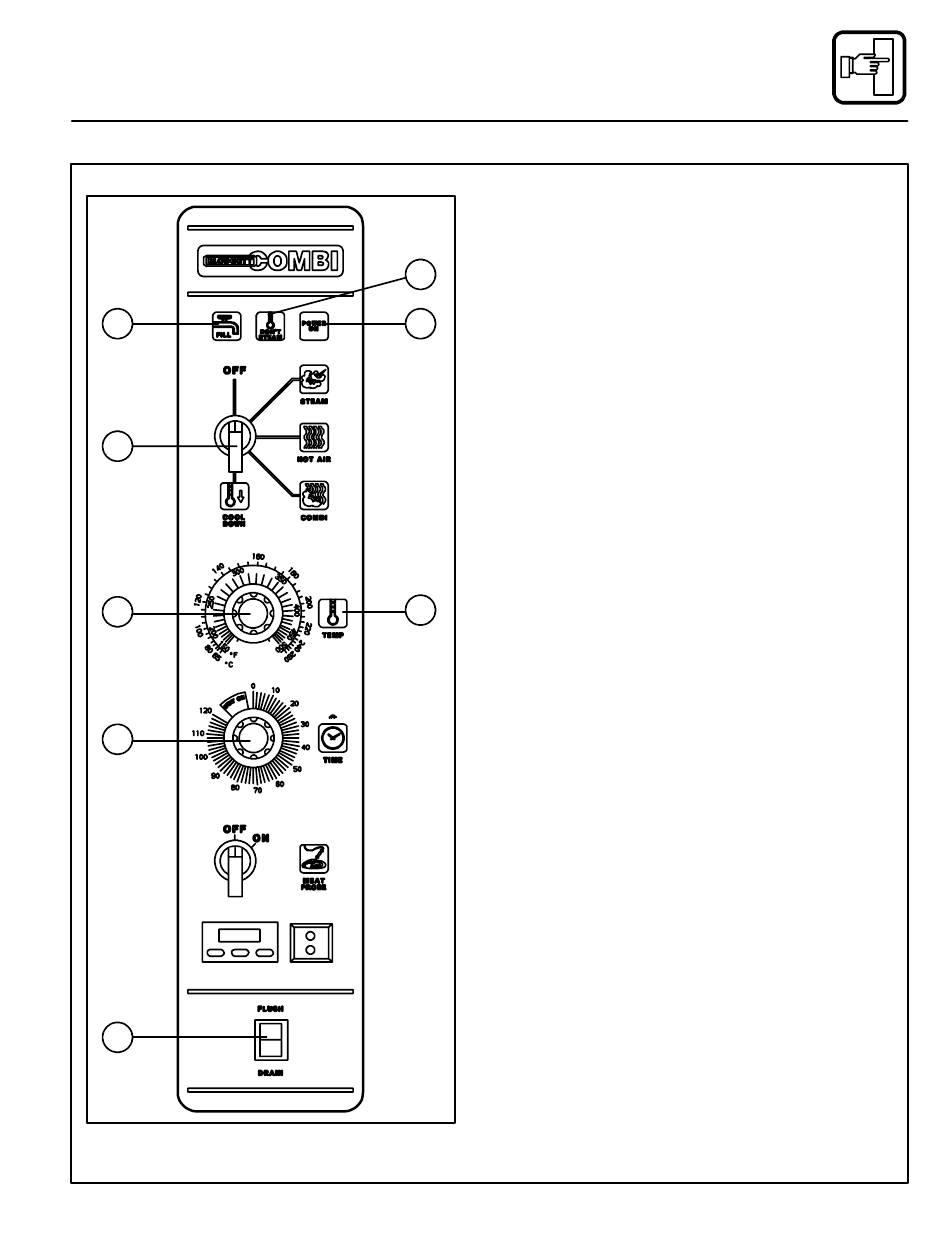

Figure 12
CONTROLS IDENTIFICATION
1. LOW WATER FILL LIGHT --- during the fill
cycle, this light remains on until the water in
the steam generator is at the proper level and
2
up to temperature. During normal operation the
light should not be on. If the light comes on,
check the water level in the steam generator.
3
2. DON'T STEAM LIGHT --- indicates the unit is
too hot to operate in the steam mode. Place
the unit in the Cool Down mode until the tem-
perature is below 230_F (110_C) and open the
door. This light does not inhibit steam produc-
tion.
3. POWER ON LIGHT --- indicates the unit is in
Steam, Hot Air or Combi.
4. MODE SELECTOR SWITCH --- turns power
to the oven on or off. Allows selection of
Steam, Hot Air, Combi or Cool Down Modes.
5. TEMPERATURE DIAL --- used to set desired
cooking temperature.
6
6. HEATING INDICATOR LIGHT --- lights when
the Hot Air heating is in operation.
7. TIMER DIAL --- used to set desired cooking
time.
8. FLUSH/DRAIN SWITCH --- used to flush/
drain the steam generator for decalcification.
