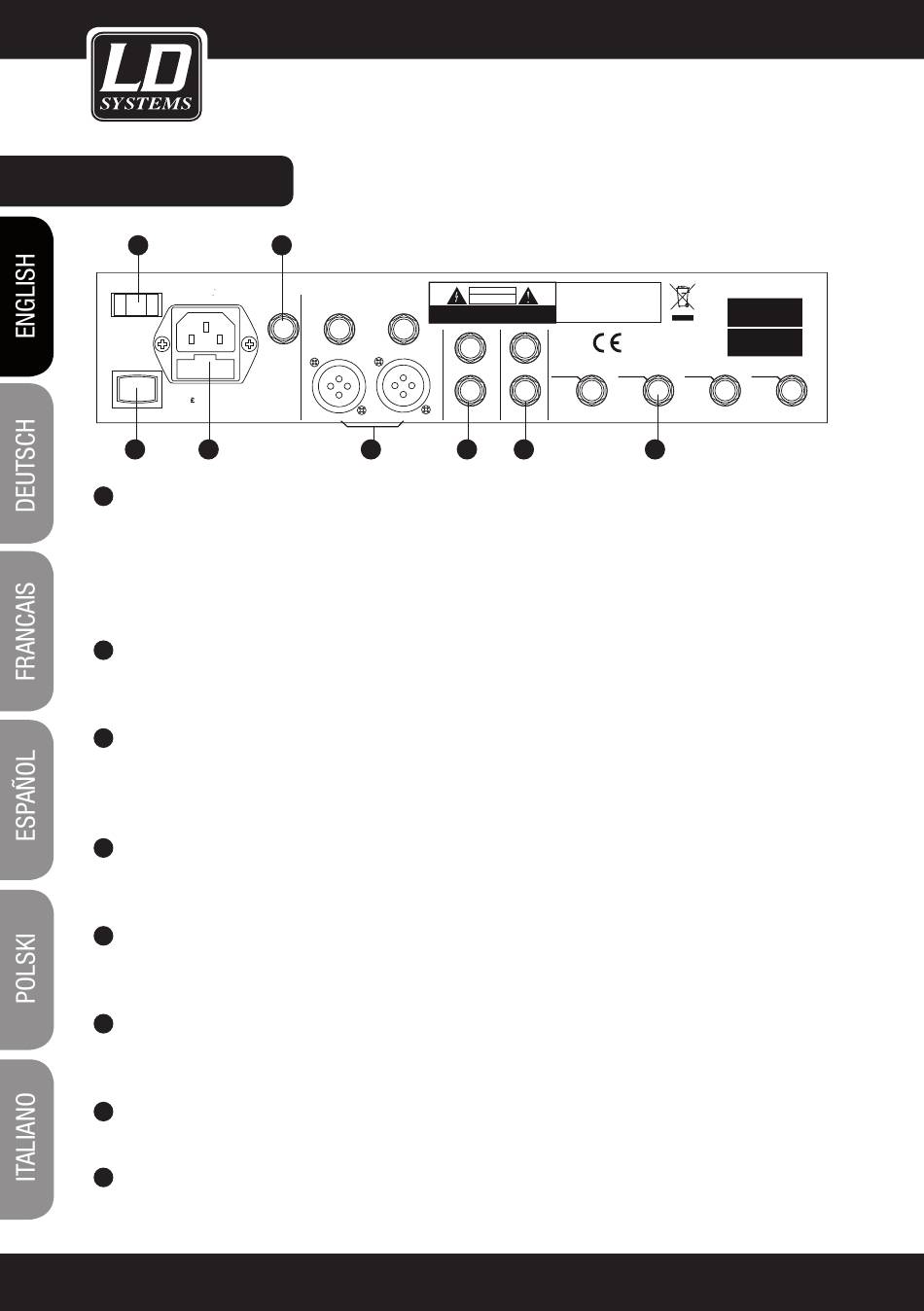

BACK PANEL:

44
Apparaten skall anslutas
PHANTOM
till jordat uttag nar den
ansluts till ett natverk
ON OFF
AC INPUT
£
210-240V 50Hz
RATED POWER CONSUMPTION: 23W
POWER
43
38
INSERTS (MONO CHANNELS)
All mono MIC channels are additionally equipped with Insert sockets (stereo jack, TRS), via which external
effects devices or the like can be patched into the respective channel. The signal is sent immediately after
the input gain control (TRIM) to an external signal processor, for example, a compressor or limiter. Once the
signal has passed through the external signal processor, it is returned to the same channel immediately
before the EQ. Note: Connecting external devices to insert points requires a so-called "Y" cable.
39
CTRL ROOM OUTPUT
These 6.3 mm sockets are used to send the signal to studio monitor speakers (CONTROL ROOM) or a PA
system.
40
ALT OUTPUT
These unbalanced 6.3 mm sockets serve as additional outputs. Their level is controlled using the ALT 3-4
fader in the master section of the mixer (max. +22 dBu). The signals of all channels for which the Mute/Alt
3-4 button has been pushed are routed to this bus; they no longer reach the main mix.
41
MAIN MIX OUTPUT
The L/R MAIN MIX OUTPUT has both XLR and 6.3 mm TRS sockets via which the main mix output signal can
be sent to an amplifier. The output level is controlled by the MAIN MIX LEVEL fader (-∞ to +10 dB).
42
FOOT SW
This socket can be used to connect an external footswitch for activation/deactivation of the integral effects
processor (function identical with that of the DFX MUTE switch).
43
PHANTOM SWITCH
This switch activates the +48V phantom power for the four XLR microphone inputs. Important: Make certain
that the phantom power is off before connecting microphones.
44
POWER SWITCH
This switch is used to turn the mixer ON or OFF.
45
AC INPUT
This socket is used to connect the power adapter.
14
42
FOOT SW RIGHT
MAIN MIX OUTPUT(BAL/UNBAL)
EUROPE
Fuse:T250mAL
RIGHT LEFT
45 41
CAUTION CAUTION:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
REPLACE WITH THE SAME TYPE FUSE AND RATING
LEFT
WARNING: SHOCK HAZARD
- DO NOT OPEN DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE
AVIS: RISQUE DE CHOC ELECTRIQUE
- NE PAS OUVRIR
L
LEFT(3)
4
INSERT
R
RIGHT(4)
OUTPUT
CTRL ROOM ALT OUTPUT
40 39
MODEL
SERIAL
3 2 1
INSERT INSERT INSERT
38
