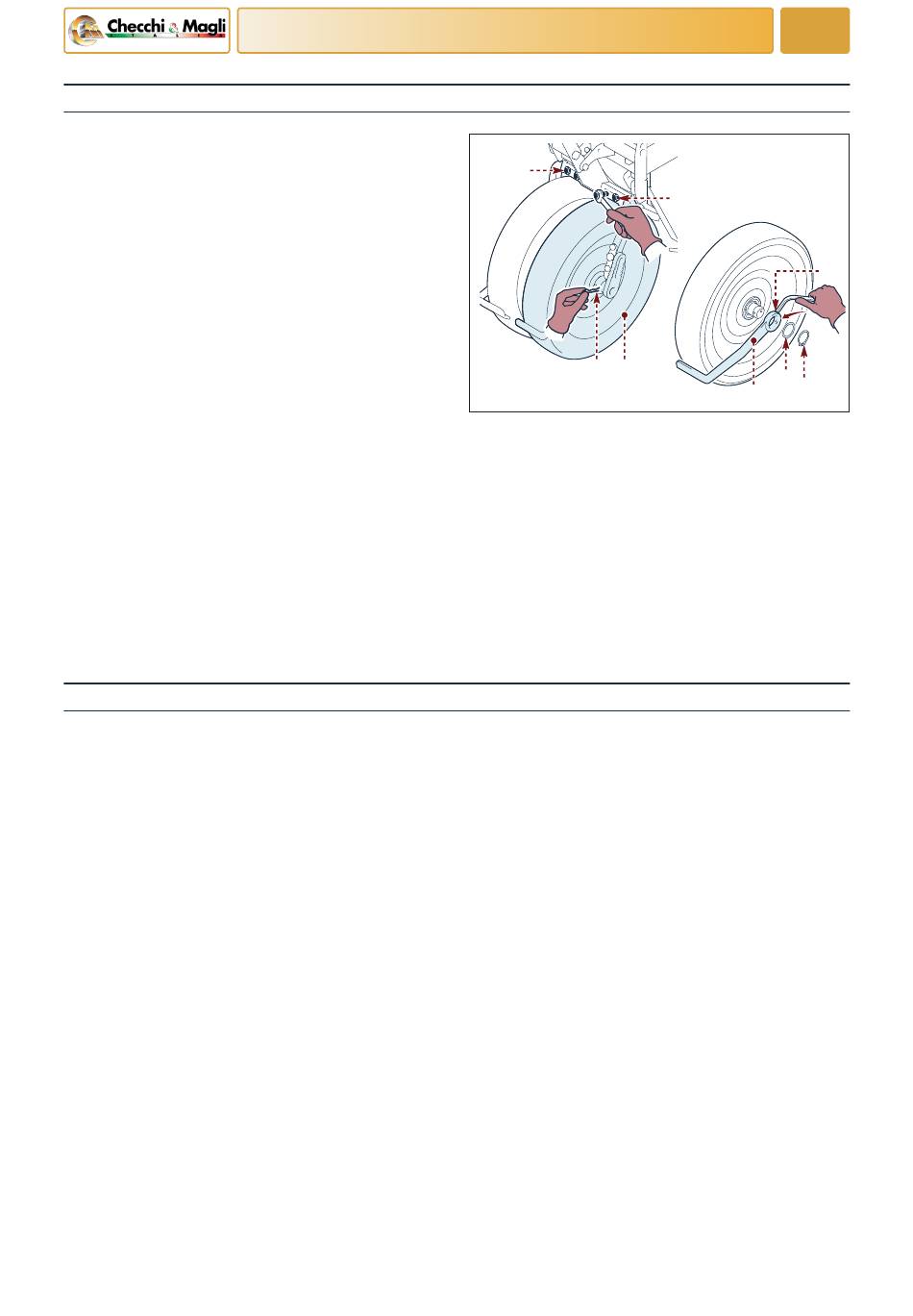

Replacing the packing wheel scraper
Proceed as outlined below.
1) Loosen the screws (A).
2)
Open out the packing wheels so that the wheel can
be removed.
3)
Tighten the screws (A).
4)
Take out the lock pin (B).
5)
Remove the packing wheel (C).
6)
Remove the circlip (D).
7)
Remove the washer (E).
8) Loosen the screws (F).
9) Remove the scraper (G).
10) Position the new scraper.
Scrapping the work vehicle
Scrapping operations must be handled by specialised
personnel with suitable skills for the job.
The components removed must be sorted according to
the type of materials they contain and in compliance
English language
INFORMATION CONCERNING REPLACEMENTS
UN41 0997DR
11) For the assembly, carry out the same operations as
12) Repeat the same procedure to replace the other
13) Adjust the wheel spacing (see " Adjusting the pack-
with the laws in force concerning "waste collection, sort-
ing and disposal".
32
A
A
B C
for disassembly but proceeding in reverse order.
scraper.
ing efficiency").
